House Plan 168 Chevron, Traditional House Plan

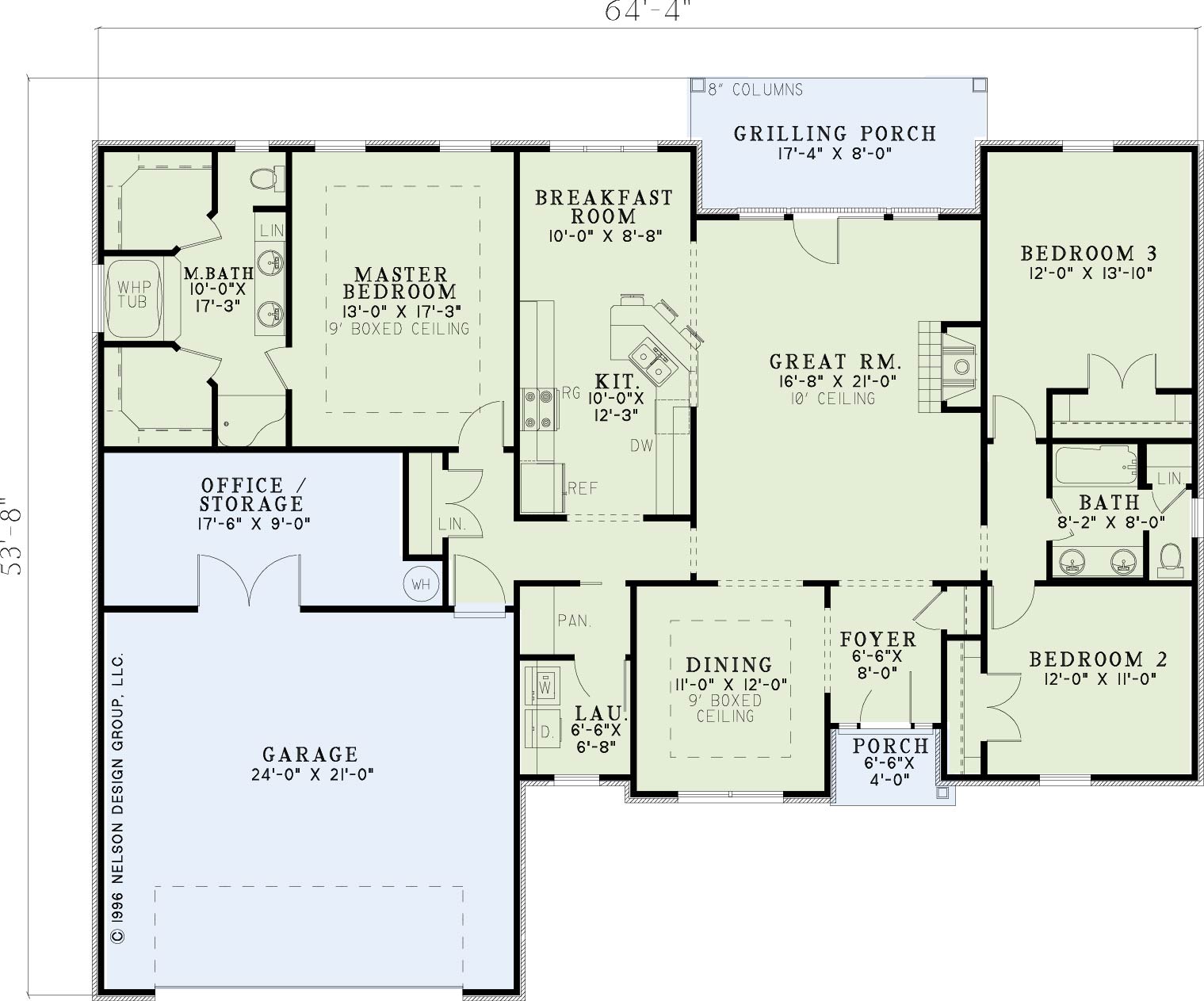

House Plan NDG 168 Main Floor
House Plan NDG 168 Main Floor

Floor plans

NDG 168

House Plan 168 Chevron, Traditional House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 168
  • Total Living Space:1898Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 64
  • Width In.: 4
  • Depth Ft.: 53
  • Depth In.: 8

Description

This charming home offers many amenities such as a great room with a fireplace, open to the kitchen and breakfast room, a grilling porch off of the great room, 9′ boxed ceilings in the dining room and master bedroom, 2 walk-in closets in the master bath, and a raised whirlpool tub beneath a window.

Specifications

  • Total Living Space:1898Sq.Ft.
  • Main Floor: 1898 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 165 Sq.Ft.
  • Garage (Sq.Ft.): 721 Sq.Ft.
  • Total Square Feet: 2784 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 22
  • Ridge Height (In.): 5
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
