House Plan 162 Alexander Drive, Farmhouse House Plan

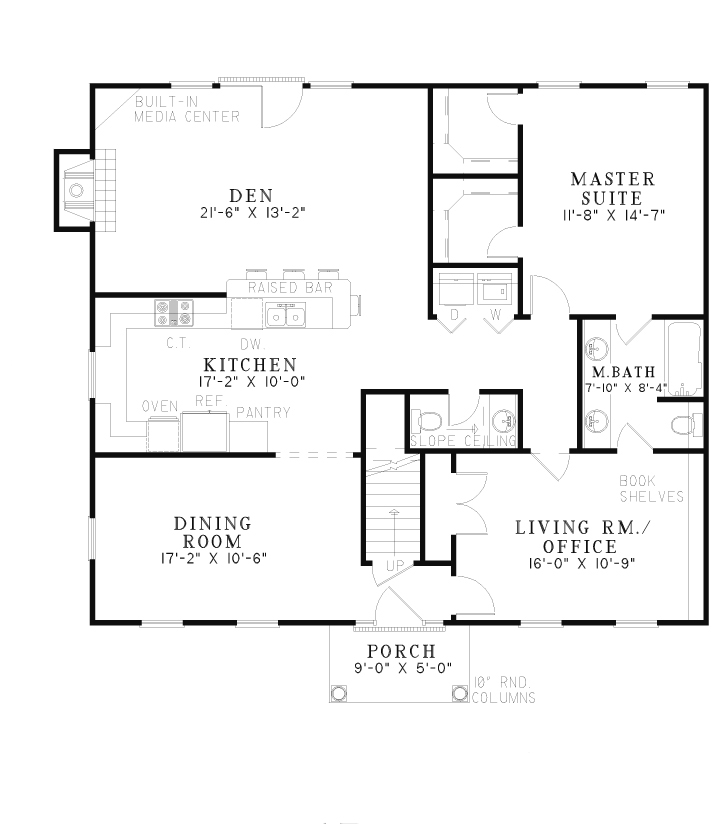

House Plan NDG 162 Main Floor

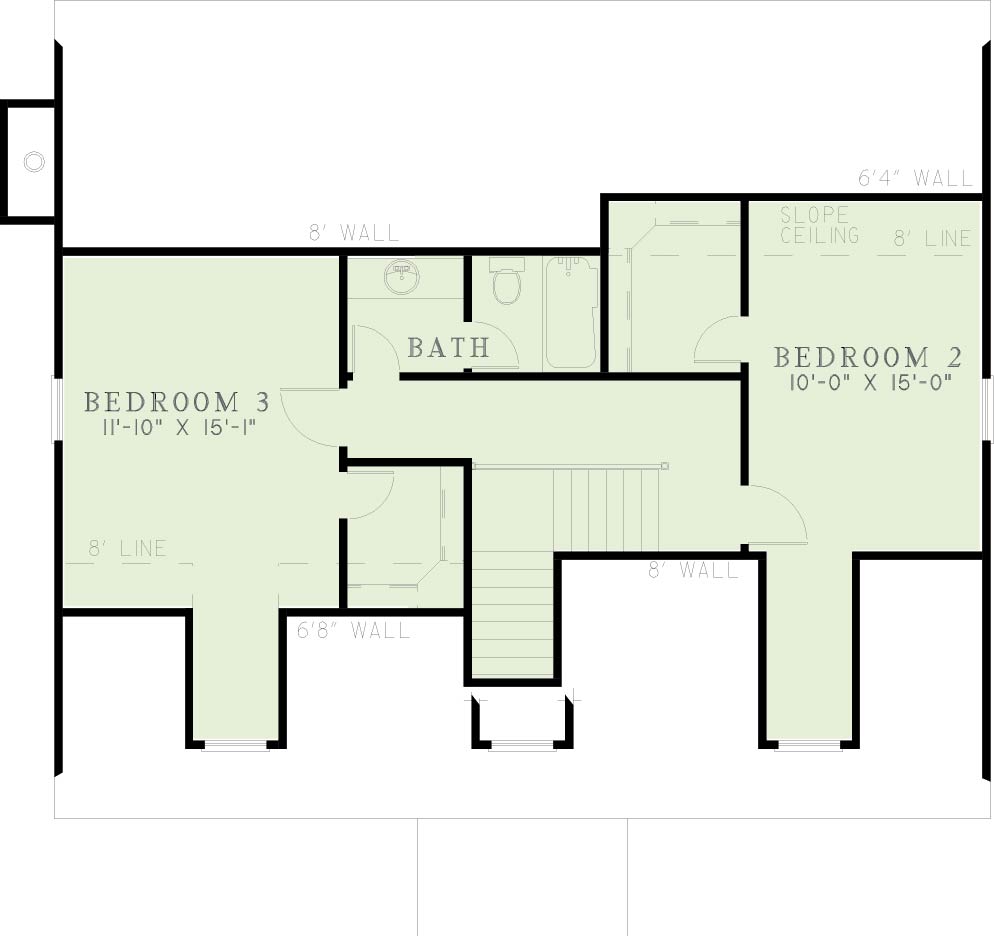

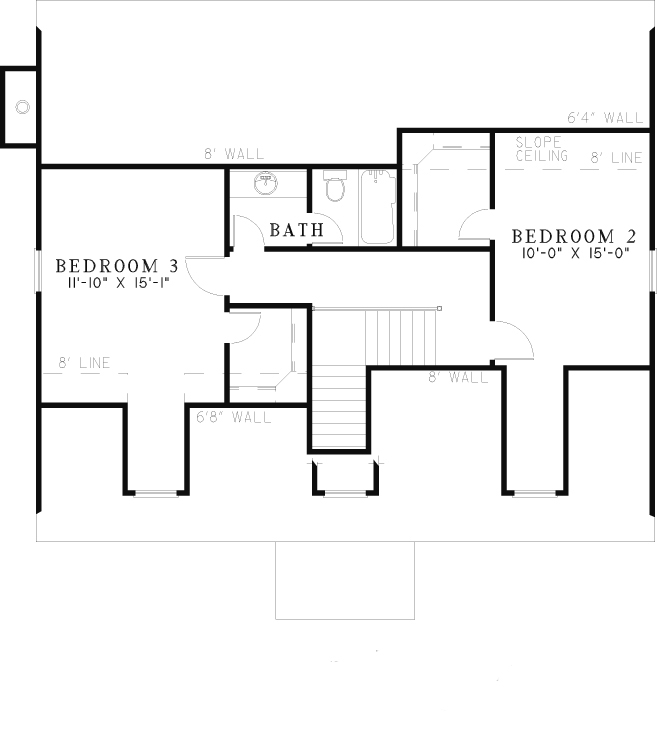

House Plan NDG 162 Upper Floor
House Plan NDG 162 Main Floor
House Plan NDG 162 Upper Floor

Floor plans

NDG 162

House Plan 162 Alexander Drive, Farmhouse House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 162
  • Total Living Space:2044Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: No
  • Garage Type: N/A
  • Carport: No
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 42
  • Width In.: 4
  • Depth Ft.: 40
  • Depth In.: N/A

Description

This home seems to beckon to all who step upon its porch. Upon entering the home you’ll be enchanted by the openness of the dining room with built-in media center and easy access to the kitchen and formal dining room. The living room or office with built-in bookshelves is the perfect place for completing the day’s paperwork or cuddling up with a good book. The Master Suite offers the ease of two walk-in closets while the bath provides a haven for relaxation in the whirlpool tub. The upper floor allows the children to have privacy of their own. Bedrooms two and three are complete with large walk-in closets and shared full bath.

Specifications

  • Total Living Space:2044Sq.Ft.
  • Main Floor: 1400 Sq.Ft
  • Upper Floor (Sq.Ft.): 644 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 45 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 2089 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 9:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 23
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
