House Plan 160 Grendel Lane, Traditional House Plan
Floor plans
NDG 160
House Plan 160 Grendel Lane, Traditional House Plan
Plan Details
- Plan Number: NDG 160
- Total Living Space:2699Sq.Ft.
- Bedrooms: 4
- Full Baths: 3
- Half Baths: 1
- Garage: No
- Garage Type: Detached
- Carport: No
- Carport Type: N/A
- Stories: 2
- Width Ft.: 73
- Width In.: N/A
- Depth Ft.: 55
- Depth In.: 8
Description

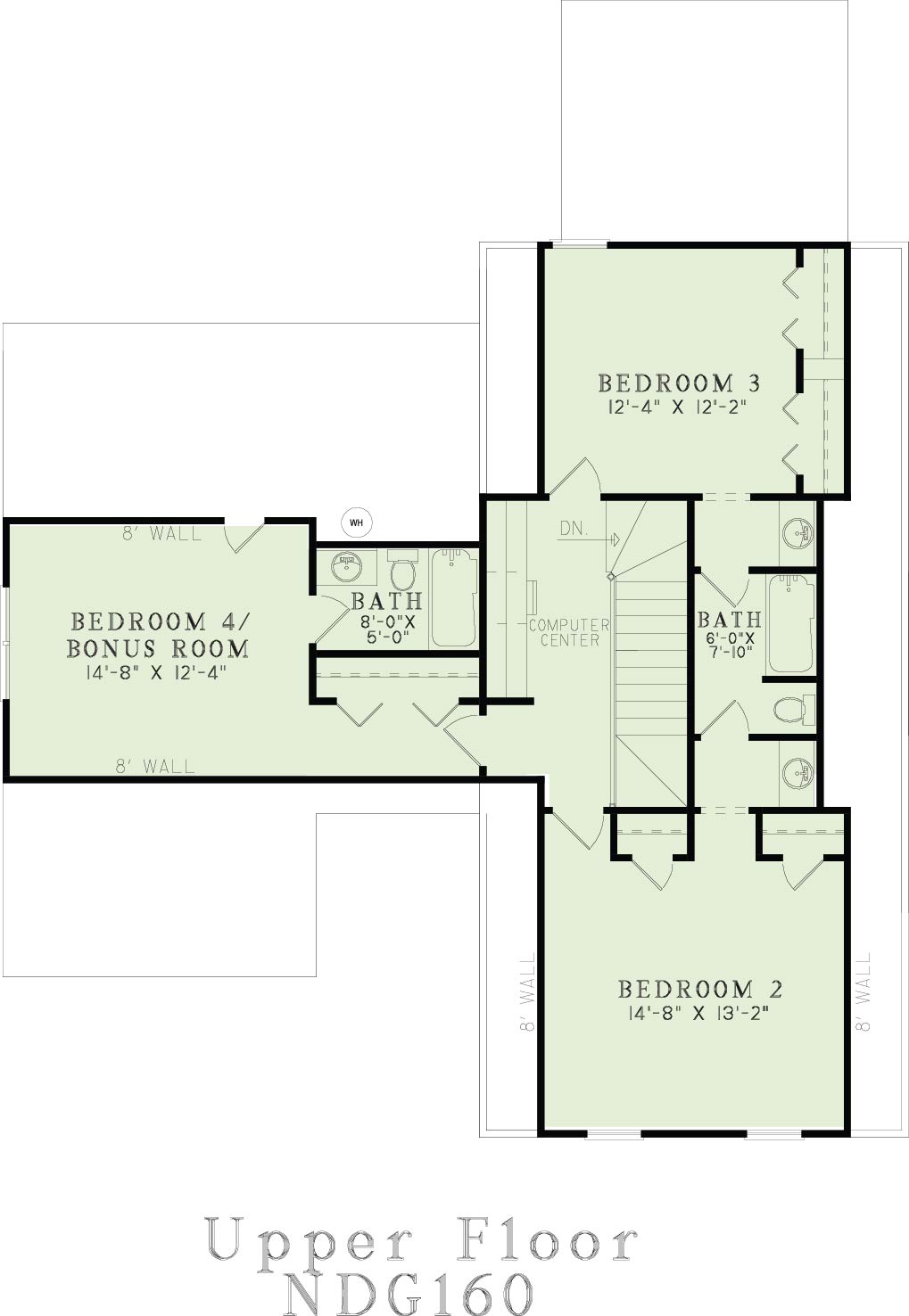

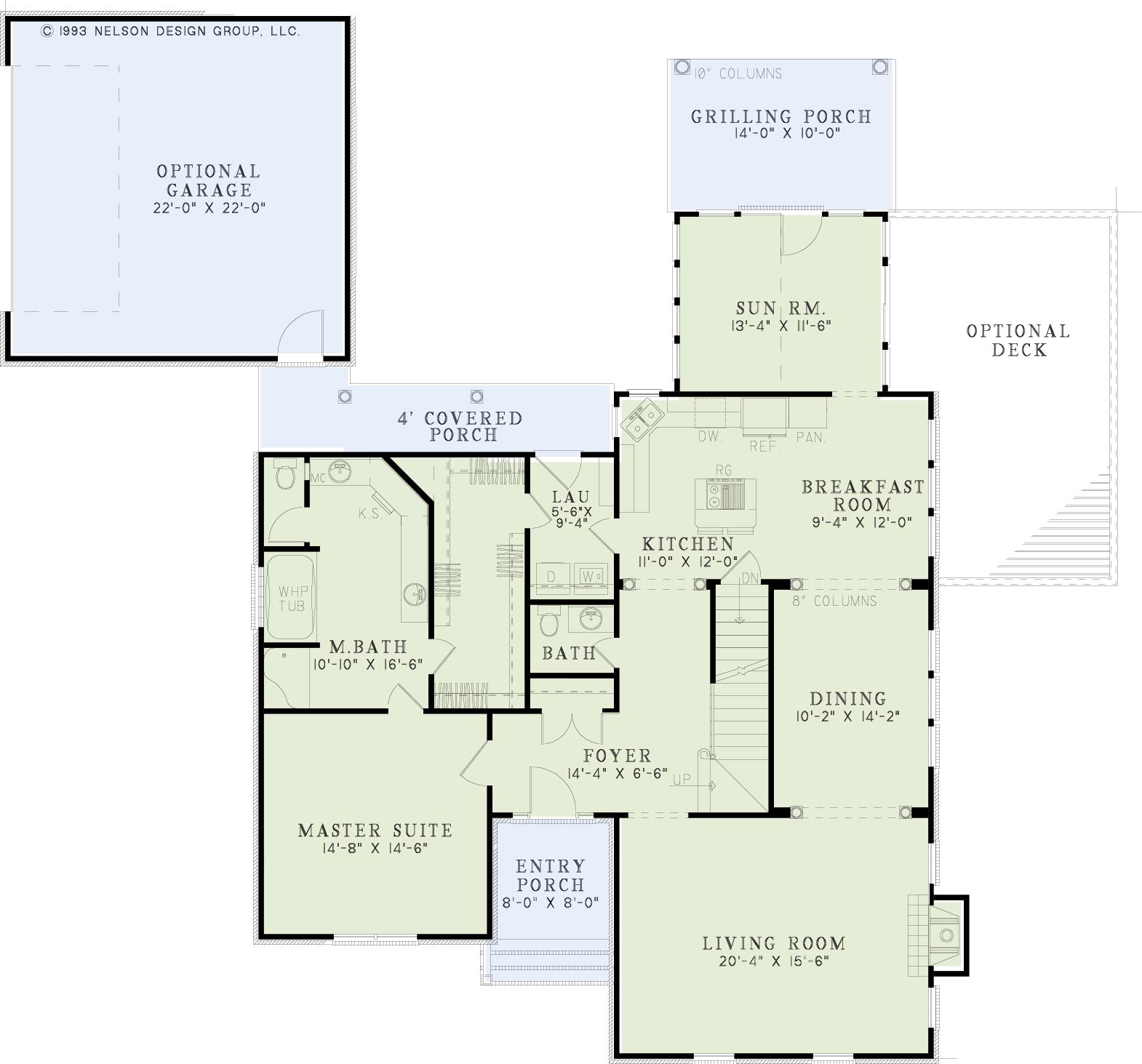

This 2 story home has a unique design with lots of space. The living room has a fireplace and the dining room features four 8″ columns. The kitchen has an island and the sink is located in the corner. The kitchen is also open to the breakfast room and the breakfast room opens to a gorgeous sunroom. The master suite has a huge bathroom with a corner shower and a whirlpool tub and a large walk-in closet that opens to the laundry room for added convenience. Upstairs you’ll find bedrooms 2 and 3 and a bonus room/bedroom 4, 2 full bathrooms and a computer center.
Specifications
- Total Living Space:2699Sq.Ft.
- Main Floor: 1768 Sq.Ft
- Upper Floor (Sq.Ft.): 931 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): 226 Sq.Ft.
- Porch (Sq.Ft.): 309 Sq.Ft.
- Garage (Sq.Ft.): 513 Sq.Ft.
- Total Square Feet: 3747 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 8
- Upper Ceiling Height: 8
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 12:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 28
- Ridge Height (In.): 4
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
