House Plan 153 Tyler Street, Traditional House Plan

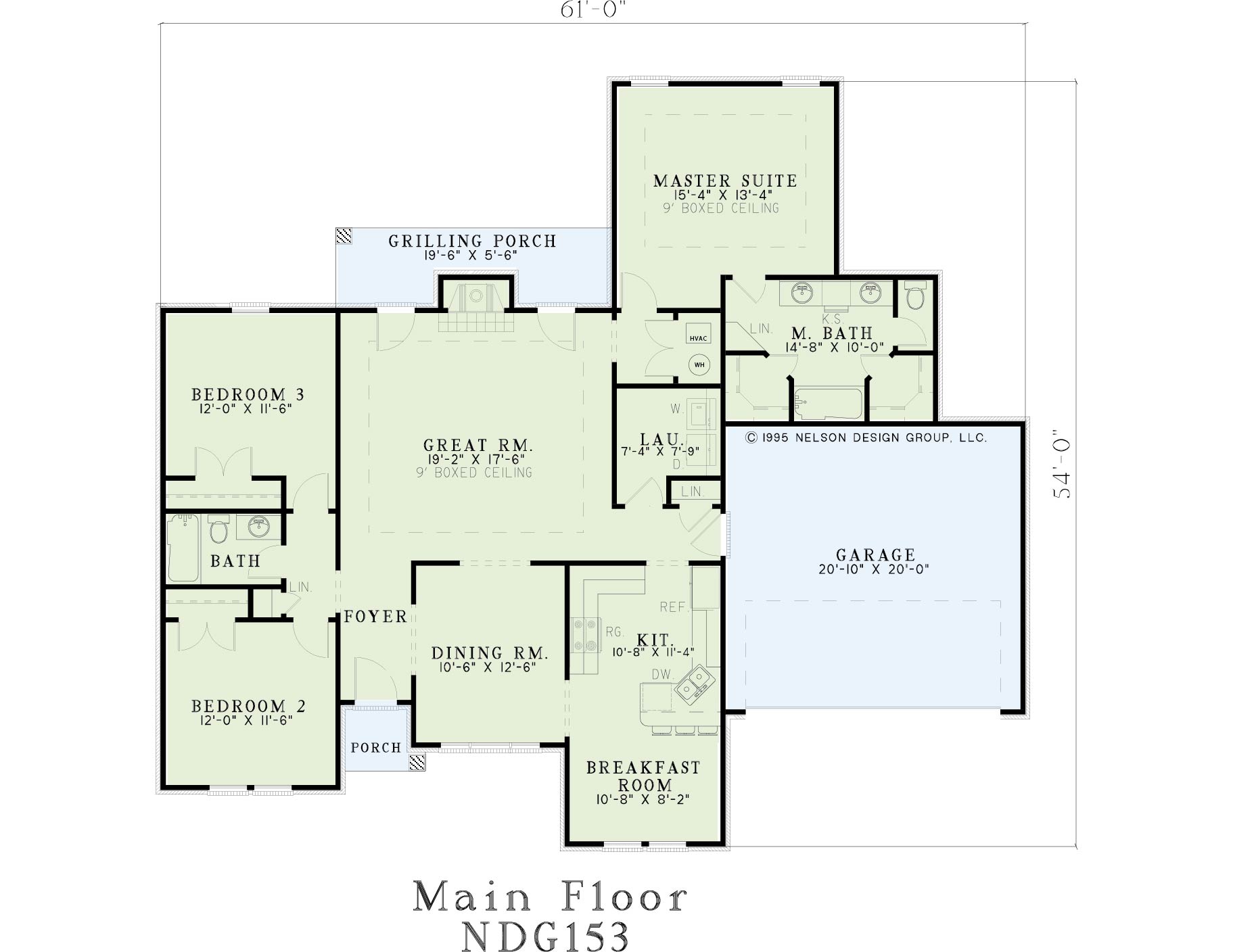

House Plan NDG 153 Main Floor
>
House Plan NDG 153 Main Floor

Floor plans

NDG 153

House Plan 153 Tyler Street, Traditional House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 153
  • Total Living Space:1734Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 61
  • Width In.: N/A
  • Depth Ft.: 54
  • Depth In.: N/A

Description

We have created this delightful plan to fill the needs of a growing family and provide privacy for the heads of household. Use the formal dining room as a study if a formal setting isn’t your cup of tea and invite guests over for a cozy evening of grilling on the rear porch and fireside conversation in the great room. In the morning you can enjoy coffee and the paper in the breakfast room adjoining a well-designed kitchen. At the end of a long day, retreat to your master suite with a nine-foot boxed ceiling and a private bath containing his and her closets, private toilet area and double vanities. On the other side of the home are two spacious bedrooms and a full bath allowing teens and guests their own private space.

Specifications

  • Total Living Space:1734Sq.Ft.
  • Main Floor: 1734 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 135 Sq.Ft.
  • Garage (Sq.Ft.): 437 Sq.Ft.
  • Total Square Feet: 2306 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: 8:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 20
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
