House Plan 151 Birchwood Lane, French Classic House Plan

Floor plans

NDG 151

House Plan 151 Birchwood Lane, French Classic House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 151
  • Total Living Space:3370Sq.Ft.
  • Bedrooms: 5
  • Full Baths: 5
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 63
  • Width In.: N/A
  • Depth Ft.: 50
  • Depth In.: 4

Description

Amenities abound in this home. As you enter through the foyer, the dining room is set off by round columns and fixed French doors. The great room, a popular gathering place before any meal, has a fireplace and built-in media center. Preparing your cuisine is easy in the spacious kitchen with island bar and breakfast room that has access to a convenient rear covered porch. You’ll find your master bath complete with whirlpool tub, glass shower and ‘his and her’ walk-in closets. All of the upper bedrooms have their own private baths.

Specifications

  • Total Living Space:3370Sq.Ft.

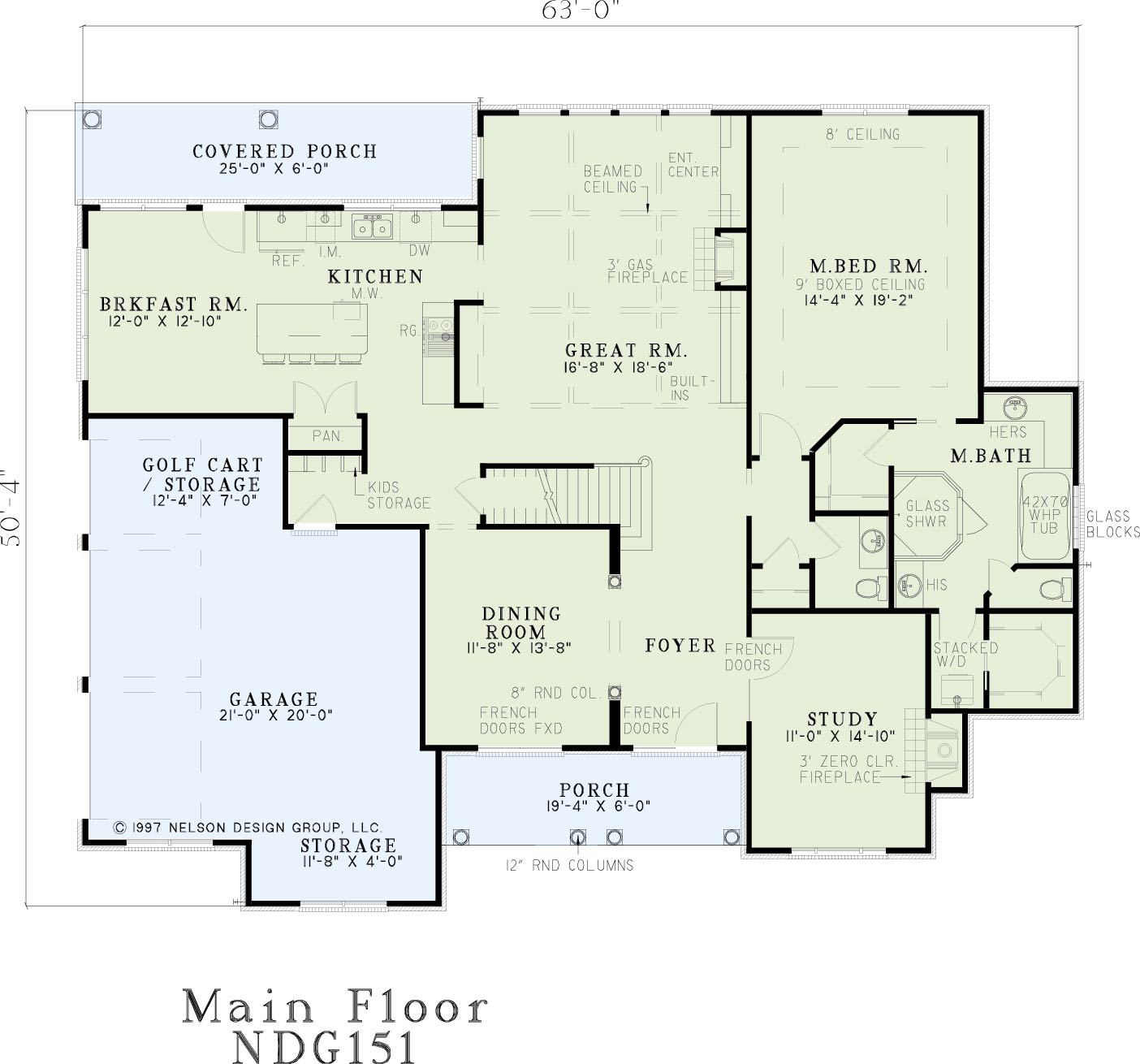

  • Main Floor: 1974 Sq.Ft

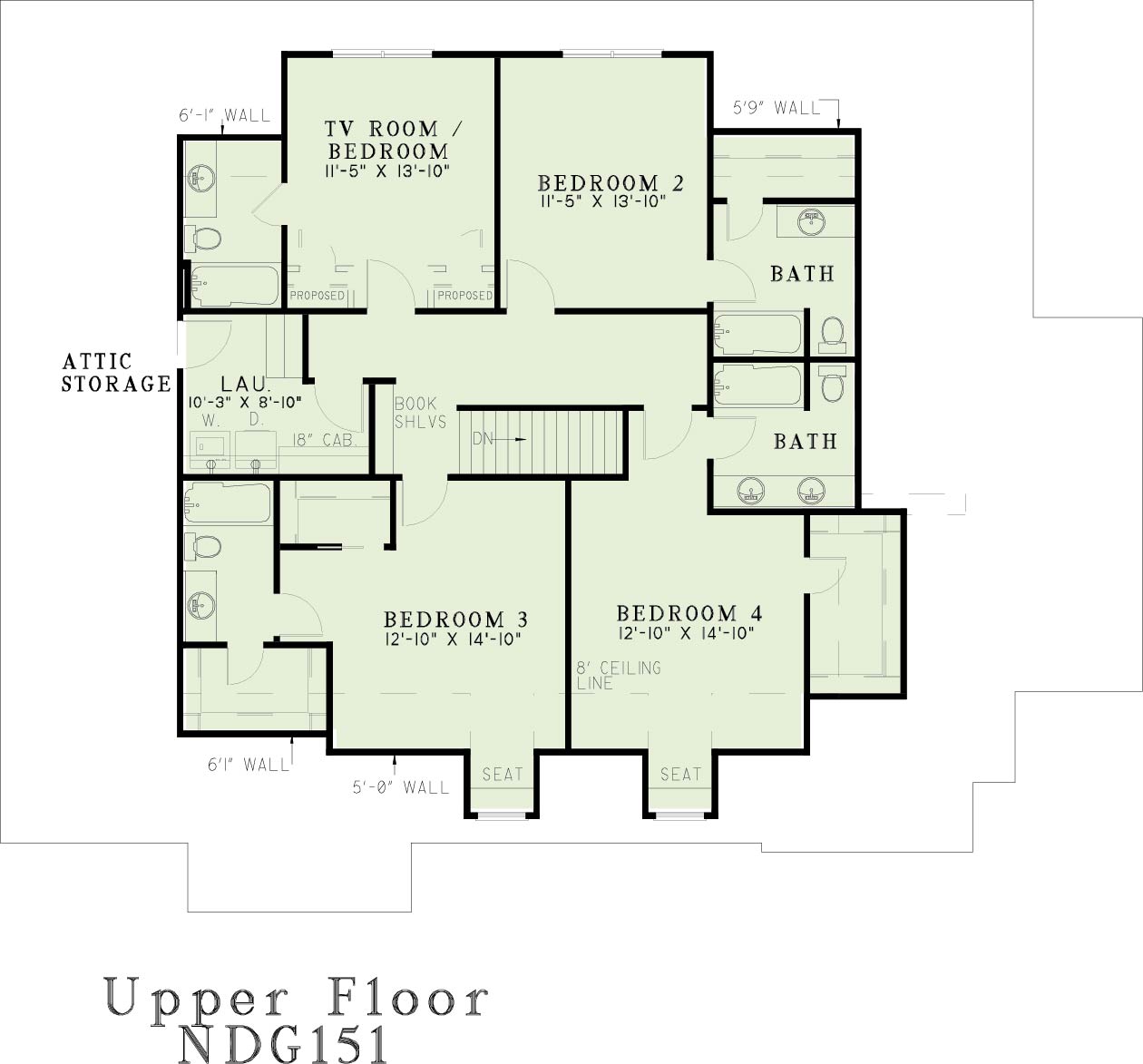

  • Upper Floor (Sq.Ft.): 1396 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 264 Sq.Ft.
  • Garage (Sq.Ft.): 572 Sq.Ft.
  • Total Square Feet: 4206 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 33
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
