House Plan 146 Spruce Street, Traditional House Plan

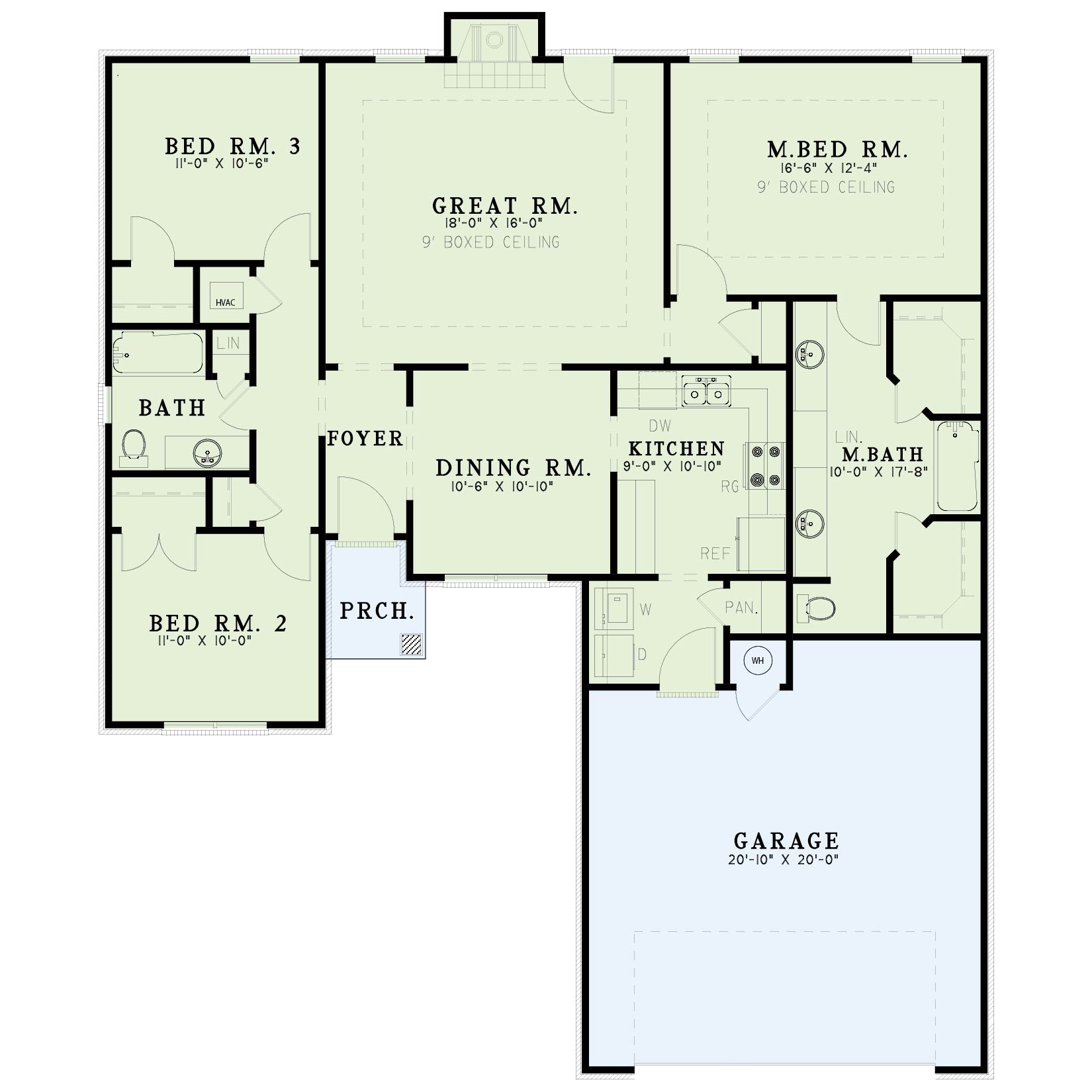

House Plan NDG 146 Main Floor
House Plan NDG 146 Main Floor

Floor plans

NDG 146

House Plan 146 Spruce Street, Traditional House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 146
  • Total Living Space:1474Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 46
  • Width In.: 10
  • Depth Ft.: 56
  • Depth In.: 4

Description

Turn your fantasy into reality with this split bedroom home. Lead your friends through the foyer into the spacious great room with convenient fireplace for drinks and conversation before moving into the dining room for the elegant cuisine you’ve prepared. Easy access from the dining room to the kitchen makes serving your guests a breeze. The children’s bedrooms have spacious closets that will be ideal for toys. The other side of the home includes your private master suite featuring a secluded master bath with ‘his and her’ walk-in closets and double vanities.

Specifications

  • Total Living Space:1474Sq.Ft.
  • Main Floor: 1474 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): N/A
  • Garage (Sq.Ft.): 505 Sq.Ft.
  • Total Square Feet: 1979 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 17
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
