House Plan 144 Waterfront Cove, Waterfront House Plan

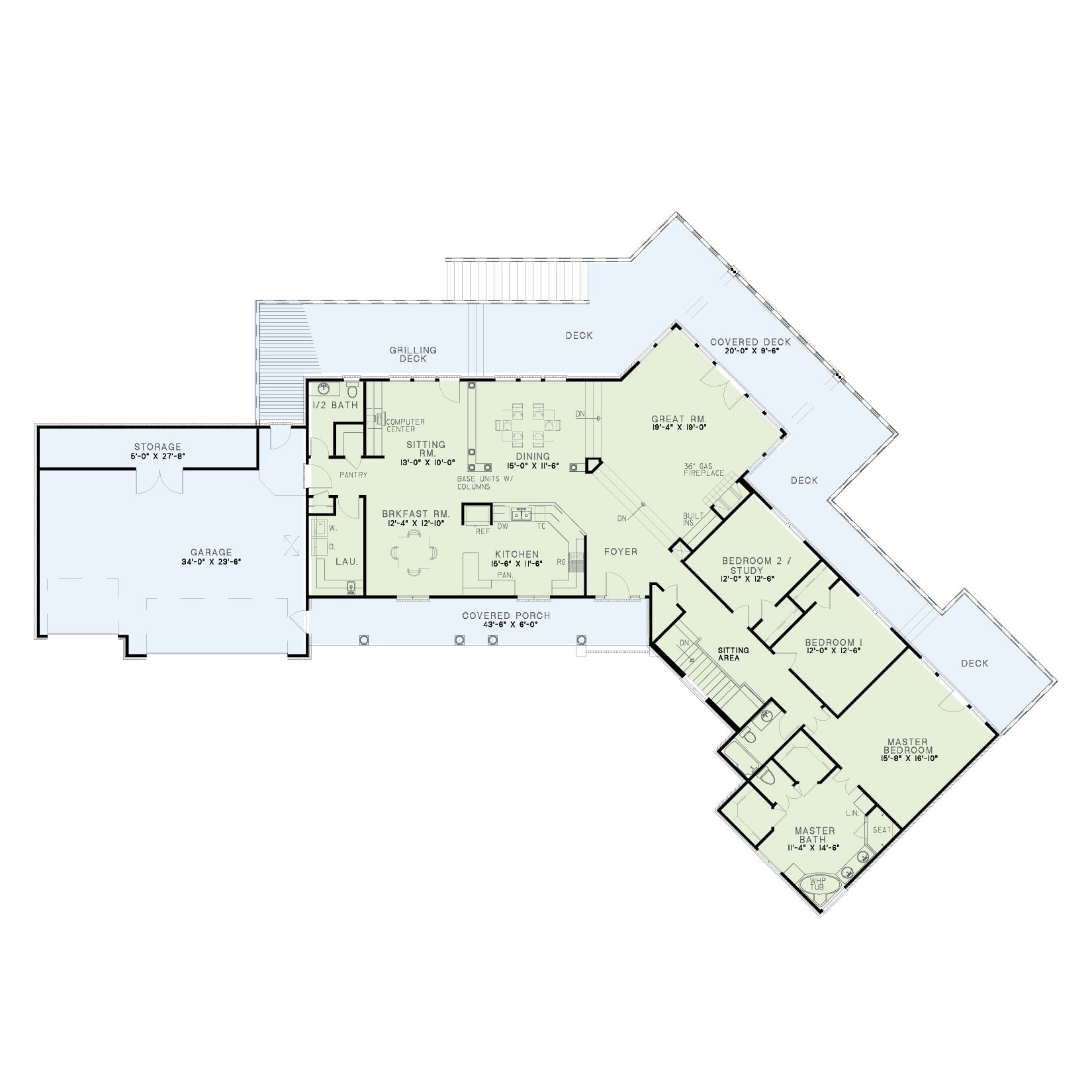

House Plan NDG 144 Main Floor

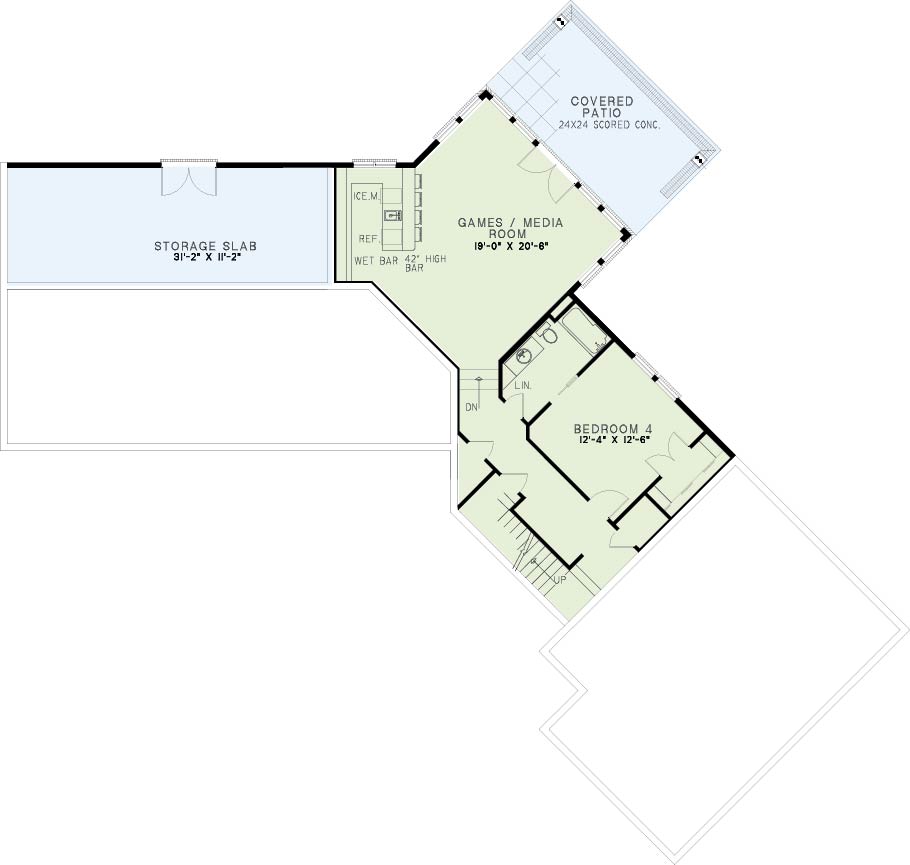

House Plan NDG 144 Basement
House Plan NDG 144 Main Floor
House Plan NDG 144 Basement

Floor plans

NDG 144

House Plan 144 Waterfront Cove, Waterfront House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 144
  • Total Living Space:3659Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: 1
  • Garage: Yes 3 Bay
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 122
  • Width In.: 10
  • Depth Ft.: 75
  • Depth In.: 5

Description

This home is perfect for entertaining guests and has a great lake view from all the main rooms. Step down into the great room and out onto the covered deck. This deck runs the entire length of the home and is perfect for grilling. The main level also features a sitting area and breakfast room. The large master bedroom features a corner whirlpool bath and ‘his and her’ walk-in closets. The kids will enjoy the computer center which is centrally located for easy monitoring. The downstairs features a game room, wet bar and guest room with full bath.

Specifications

  • Total Living Space:3659Sq.Ft.
  • Main Floor: 2711 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 1024 Sq.Ft.
  • Garage (Sq.Ft.): 799 Sq.Ft.
  • Total Square Feet: 5482 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: 8
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
