House Plan 143 Olive Street, Country Home House Plan
>
> Floor plans
NDG 143
House Plan 143 Olive Street, Country Home House Plan
Plan Details
- Plan Number: NDG 143
- Total Living Space:3740Sq.Ft.
- Bedrooms: 4
- Full Baths: 3
- Half Baths: 1
- Garage: Yes 3 Bay
- Garage Type: Side Load
- Carport: No
- Carport Type: N/A
- Stories: 1.5
- Width Ft.: 92
- Width In.: 5
- Depth Ft.: 64
- Depth In.: N/A
Description
Holidays will be remembered when celebrating in this home. Upon entering the open foyer, your guests will enjoy the private sitting room to reminisce the days gone by. Your guests will enjoy the hearth room with coffee and conversation over a roaring fire. Entertain in the formal living area with handy wet bar. After your guests leave, retire to your spacious master suite with fabulous corner whirlpool bath and corner glass shower. Upstairs, you’ll find the children playing in their bedrooms with their own private window seats. A proposed bonus room offers numerous possibilities.
Specifications
- Total Living Space:3740Sq.Ft.

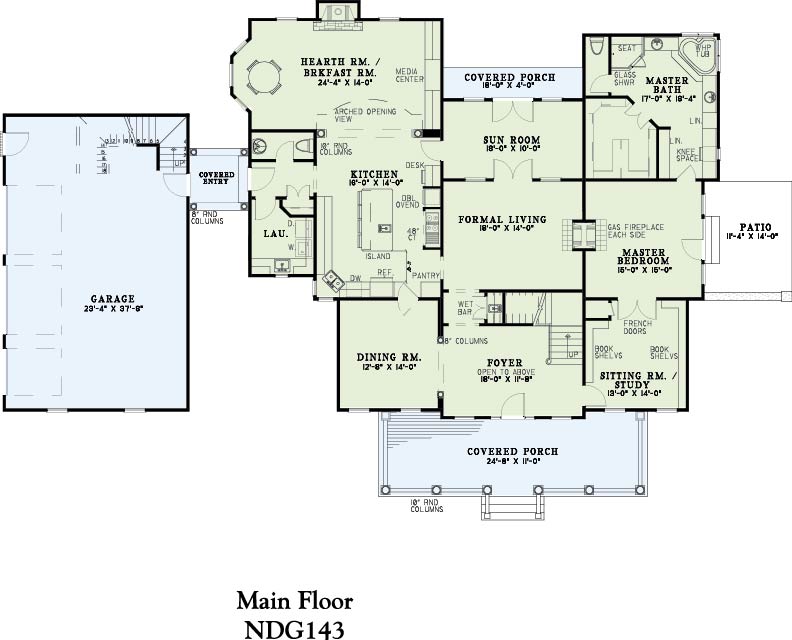

- Main Floor: 2651 Sq.Ft

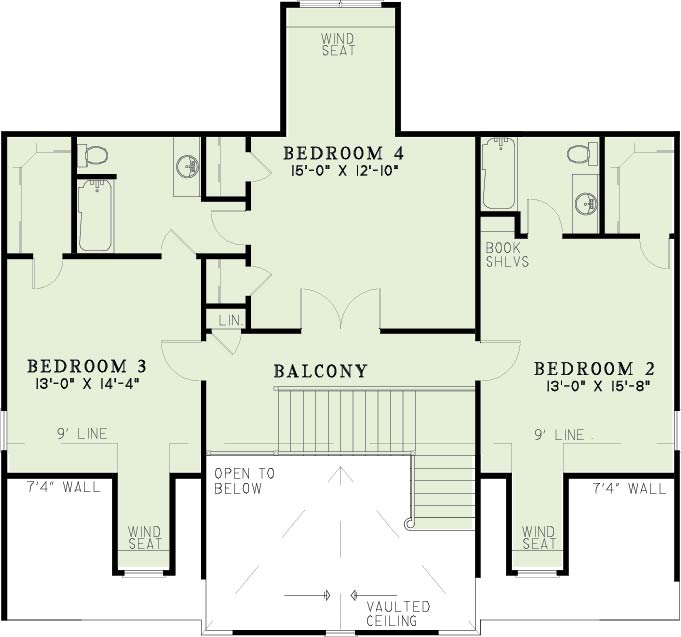

- Upper Floor (Sq.Ft.): 1089 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A

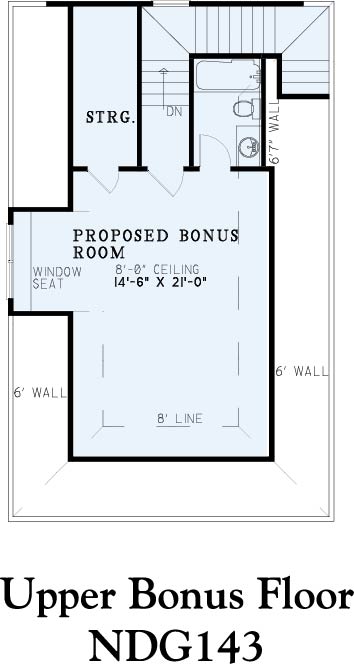

- Bonus Room (Sq.Ft.): 497 Sq.Ft.
- Porch (Sq.Ft.): 537 Sq.Ft.
- Garage (Sq.Ft.): 879 Sq.Ft.
- Total Square Feet: 5653 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: Yes
- Main Ceiling Height: 10
- Upper Ceiling Height: 9
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 10:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 29
- Ridge Height (In.): 0
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
