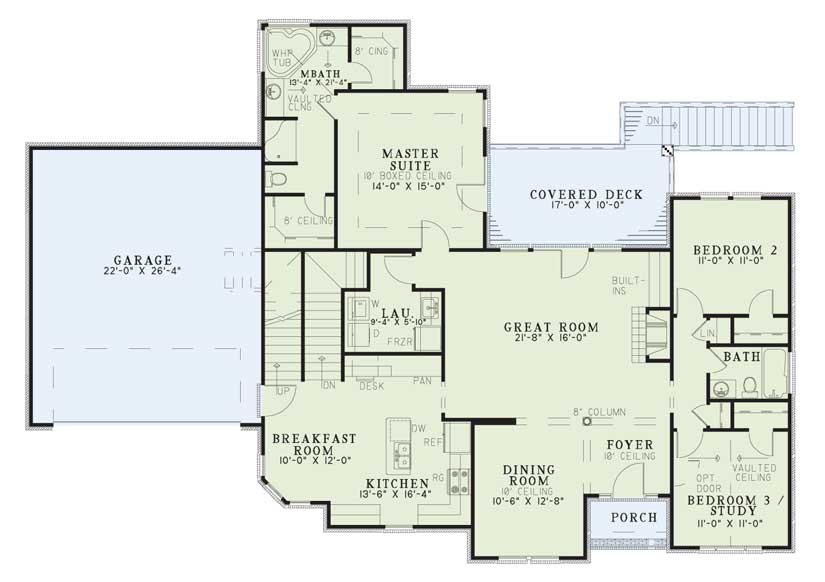

House Plan NDG 136 Main Floor

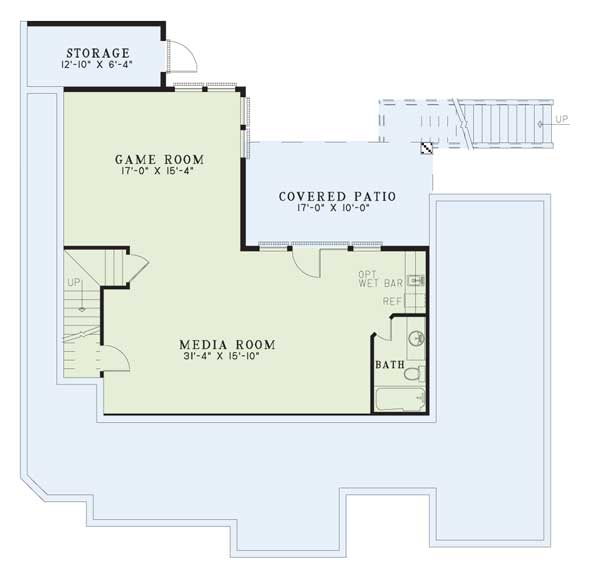

House Plan NDG 136 Basement

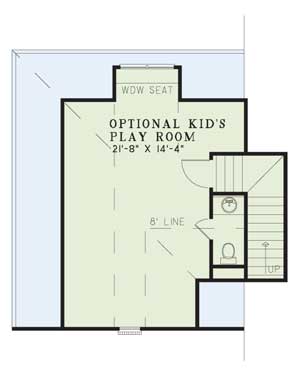

House Plan NDG 136 Bonus Room
NDG 136

House Plan 136 Spruce Street, French Country House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 136
  • Total Living Space:1871 Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 73
  • Width In.: 4
  • Depth Ft.: 51
  • Depth In.: 8

Description

We have created a French traditional home with an astonishing exterior. Walk through the brick arched entry and discover an equally impressive interior design. Entering through the foyer, you’ll feel the openness in the great room that will prove to be the heart of the home. Breakfast tradition will begin in the kitchen with the kids waiting in the breakfast room for their meal. Spend evenings on the deck which is accessible from the master suite and great room. Upstairs, you’ll find an optional bonus room, perfect as a playroom for the kids.

Specifications

  • Total Living Space:1871 Sq.Ft.
  • Main Floor: 1871 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): 860 Sq.Ft.
  • Bonus Room (Sq.Ft.): 390 Sq.Ft.
  • Porch (Sq.Ft.): 210 Sq.Ft.
  • Garage (Sq.Ft.): 599 Sq.Ft.
  • Total Square Feet: 3930 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
