House Plan 135 Olive Street, Traditional House Plan

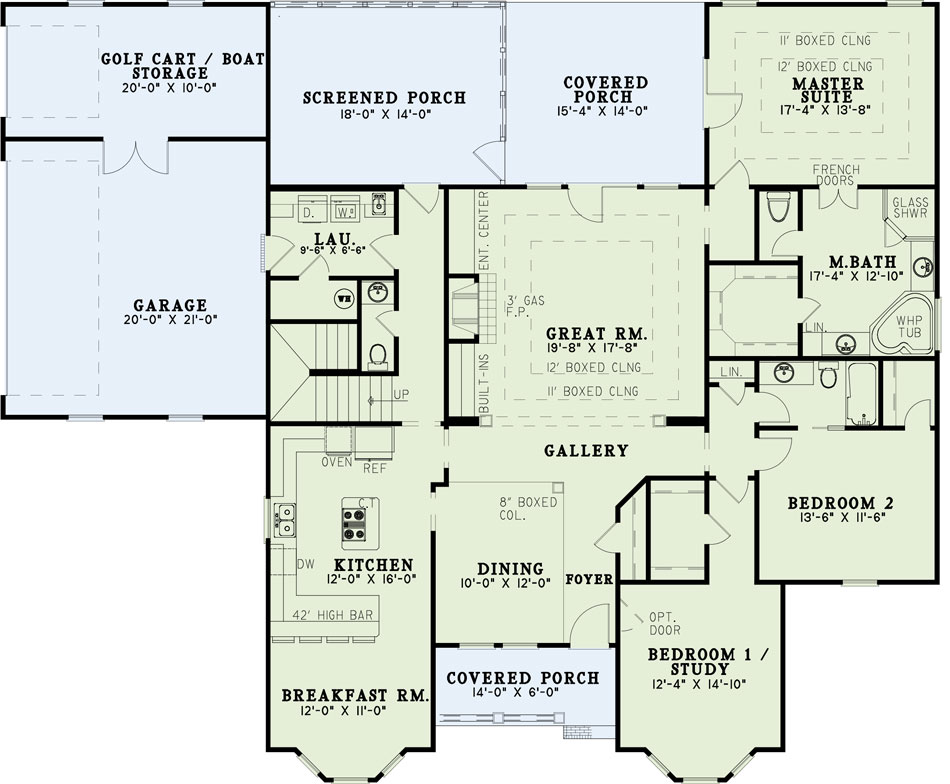

Floor plans
NDG 135
House Plan 135 Olive Street, Traditional House Plan
Plan Details
- Plan Number: NDG 135
- Total Living Space:2637Sq.Ft.
- Bedrooms: 3
- Full Baths: 2
- Half Baths: 2
- Garage: 2 Bay Yes
- Garage Type: Side Load
- Carport: No
- Carport Type: N/A
- Stories: 1
- Width Ft.: 72
- Width In.: N/A
- Depth Ft.: 59
- Depth In.: 10
Description
Imagine bright mornings as the coffee pot perks in the breakfast room of this home. Relax in the comfortable great room with a cup of hot cocoa or from the screened porch as you marvel at the days sunset. The children will find their walk-in closets ideal for storing their clothes as well as their toys and games. You can enjoy all the comforts available in your private master bath that include a quick morning shower or a long hot bath at night. Upstairs, the entire family will enjoy a multifunctional game room for hours of entertainment.
Specifications
- Total Living Space:2637Sq.Ft.
- Main Floor: 2267 Sq.Ft

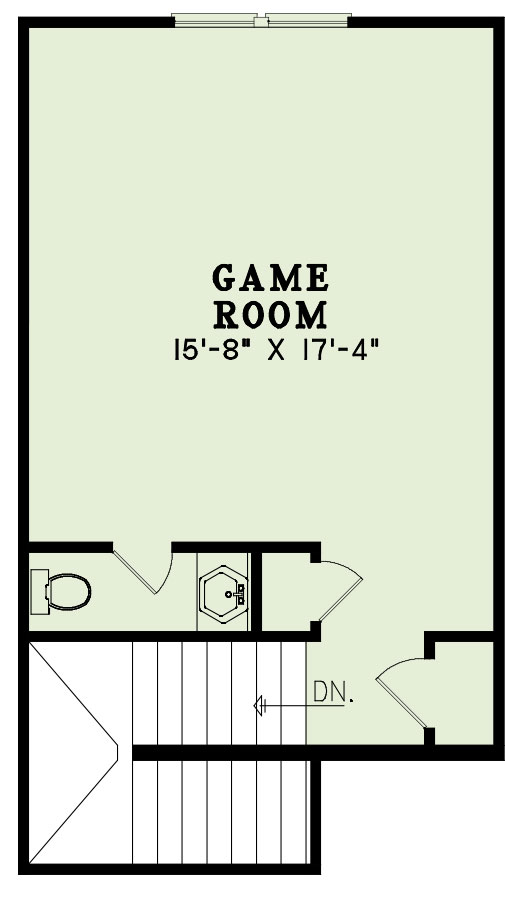

- Upper Floor (Sq.Ft.): 370 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 546 Sq.Ft.
- Garage (Sq.Ft.): 655 Sq.Ft.
- Total Square Feet: 3838 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 10
- Upper Ceiling Height: 8
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 7:12
- Porch Roof Pitch: 5:12
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 25
- Ridge Height (In.): 1
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
