House Plan 124 Aspen Heights, Traditional House Plan

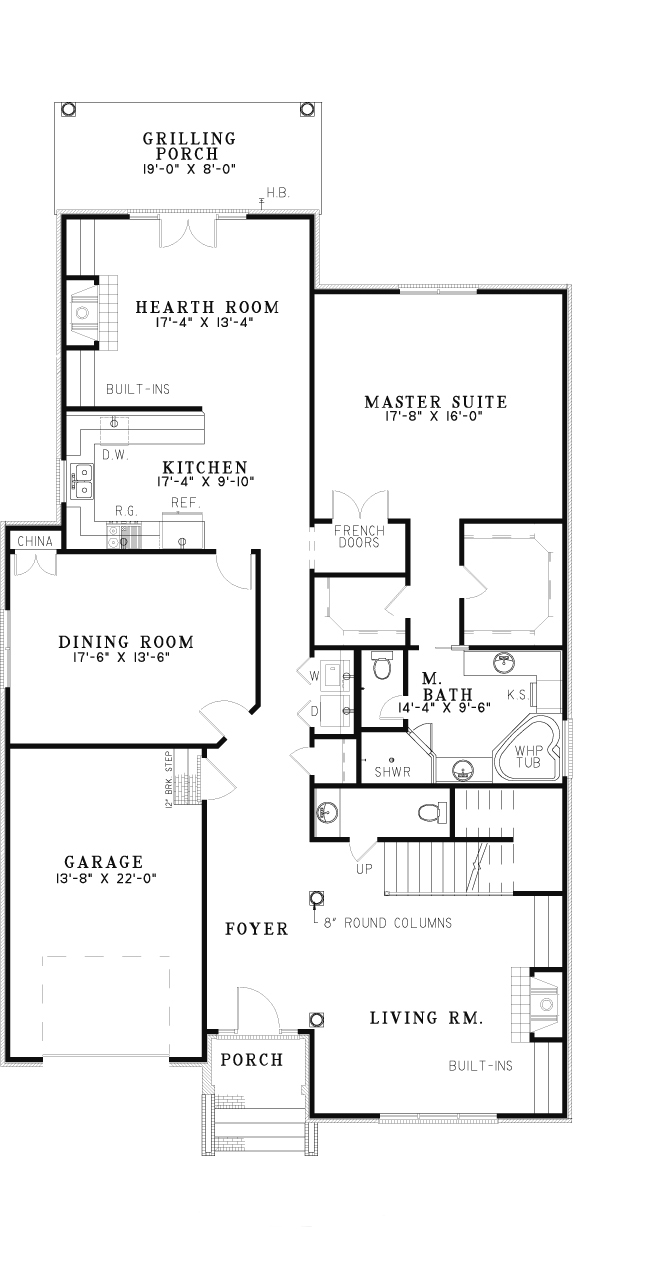

House Plan NDG 124 Main Floor

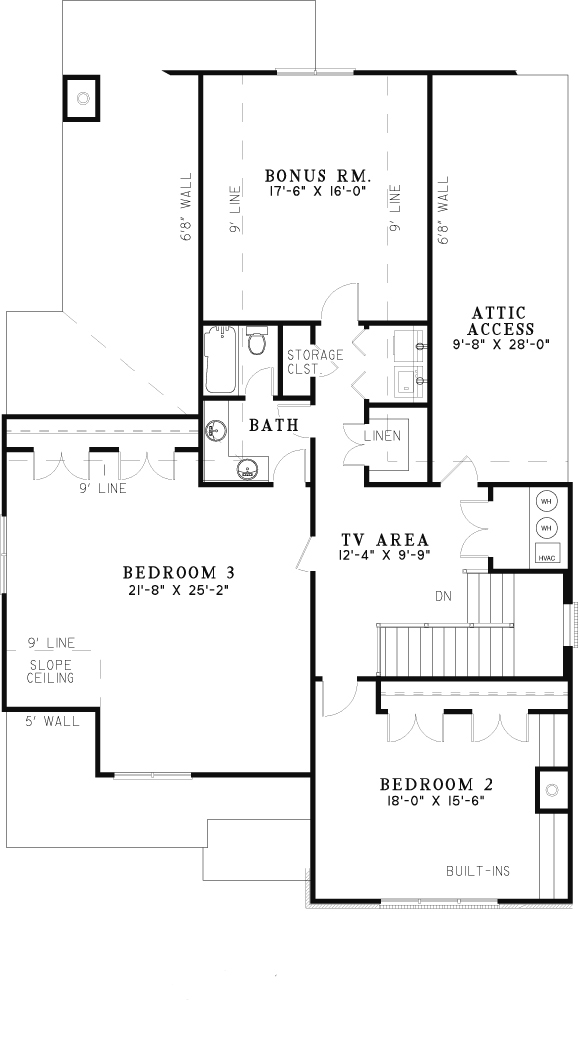

House Plan NDG 124 Upper Floor

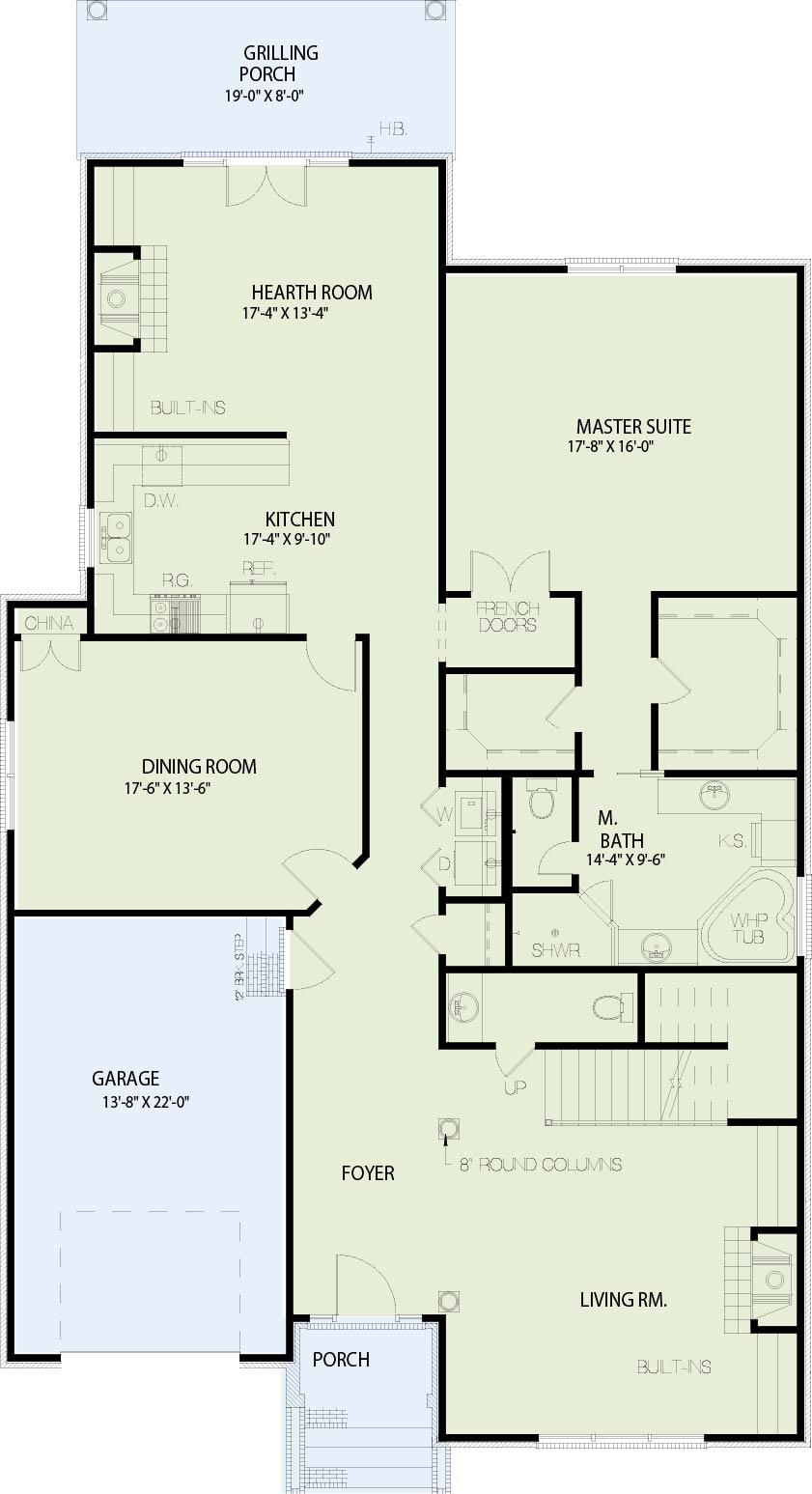

House Plan NDG 124 Main Floor

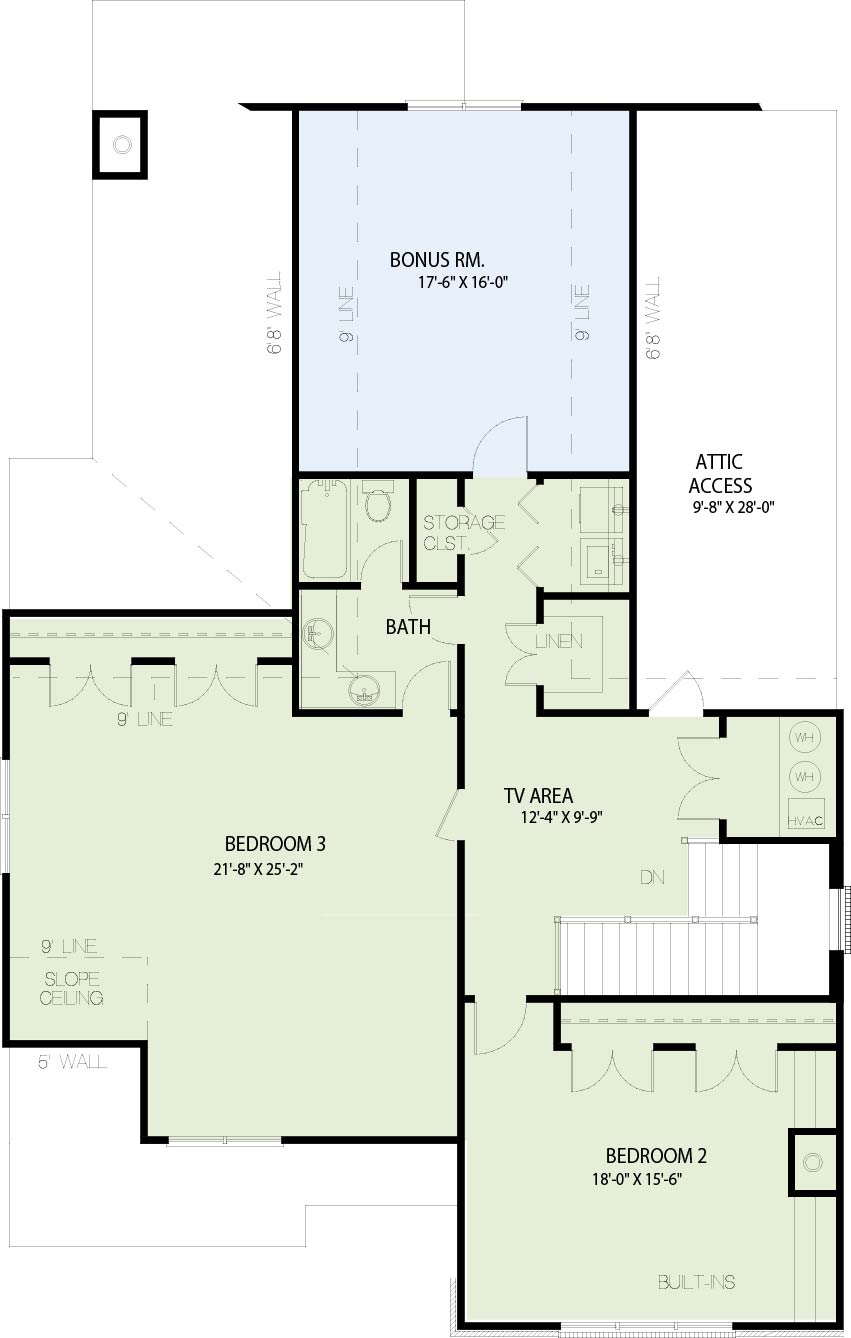

House Plan NDG 124 Upper Floor

Floor plans

NDG 124

House Plan 124 Aspen Heights, Traditional House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 124
  • Total Living Space:3202Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 1 Bay
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 40
  • Width In.: N/A
  • Depth Ft.: 72
  • Depth In.: 4

Description

This Traditional home is a dream come true. Upon entering you’ll be greeted by a warmth that continues throughout the plan. Entertaining guests will be easy in the living room with built-in shelves and fireplace. Dinner will always be a success in the convenient kitchen with access to the formal dining room as well as the hearth room complete with fireplace and access to the rear-grilling porch. The second floor is perfect for kids that need their own space. Its features include a TV area along with a huge bedroom with its own access to the full bath. After dinner is over and the kids are heading to bed, you and your loved one can retreat to a haven all your own downstairs. Entering through French doors the spacious Master Suite is complete with large walk-in closets and a Master Bath with whirlpool tub, corner shower and double vanities.

Specifications

  • Total Living Space:3202Sq.Ft.
  • Main Floor: 1974 Sq.Ft
  • Upper Floor (Sq.Ft.): 1228 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 297 Sq.Ft.
  • Porch (Sq.Ft.): 23 Sq.Ft.
  • Garage (Sq.Ft.): 322 Sq.Ft.
  • Total Square Feet: 3844 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: 4:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
  • Master Bedroom: Master Bedroom Lower Level
