House Plan 106 Maple Street, Traditional House Plan

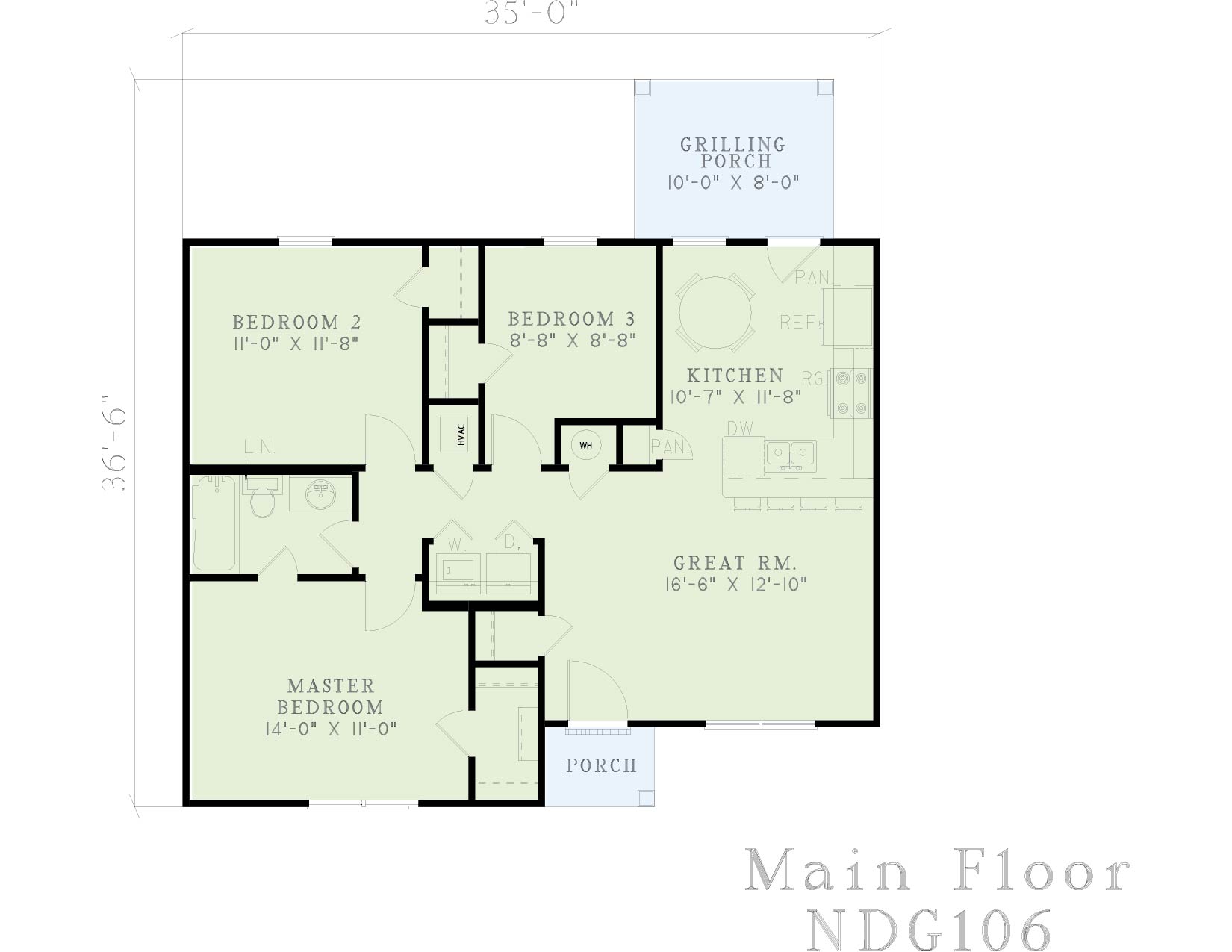

House Plan NDG 106 Main Floor
>
House Plan NDG 106 Main Floor

Floor plans

NDG 106

House Plan 106 Maple Street, Traditional House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 106
  • Total Living Space:930Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 1
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: Other
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 35
  • Width In.: N/A
  • Depth Ft.: 36
  • Depth In.: 6

Description

This economical design is perfect for the couple just starting out. An eight inch boxed column adorns the quaint covered porch. As you enter the home you’ll feel openness created in the great room which flows through to the kitchen with eat-at bar and access to the rear grilling porch. Bedroom two can easily be converted into a study for those that need to work at home. The Master Bedroom will provide the privacy needed at the end of the day with private access to the bath, and ample closet space.

Specifications

  • Total Living Space:930Sq.Ft.
  • Main Floor: 930 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 102 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 1032 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 7:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 16
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
