House Plan B1065 The Olympiad, Barna Log Home House Plan

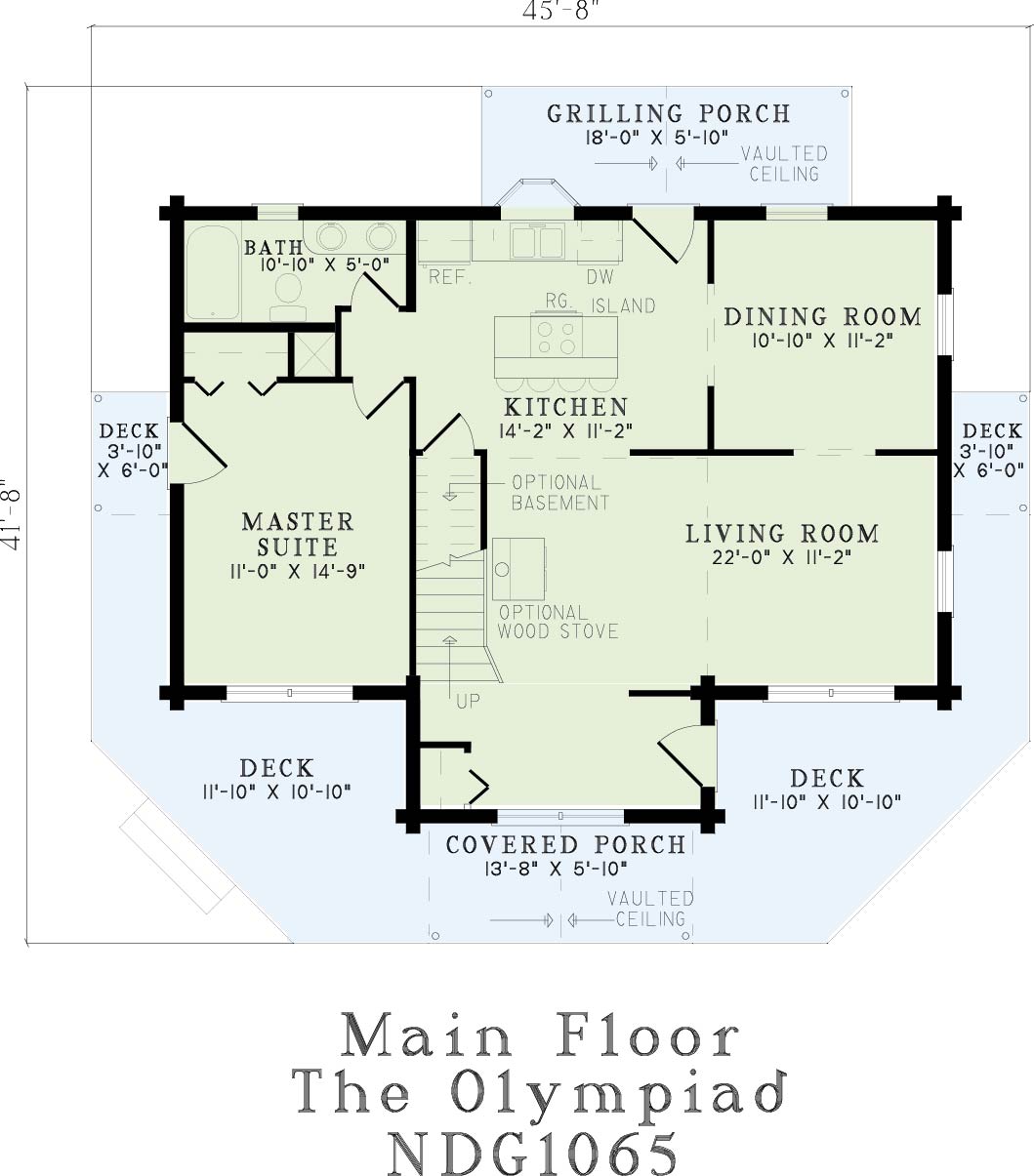

House Plan NDG B1065 Main Floor

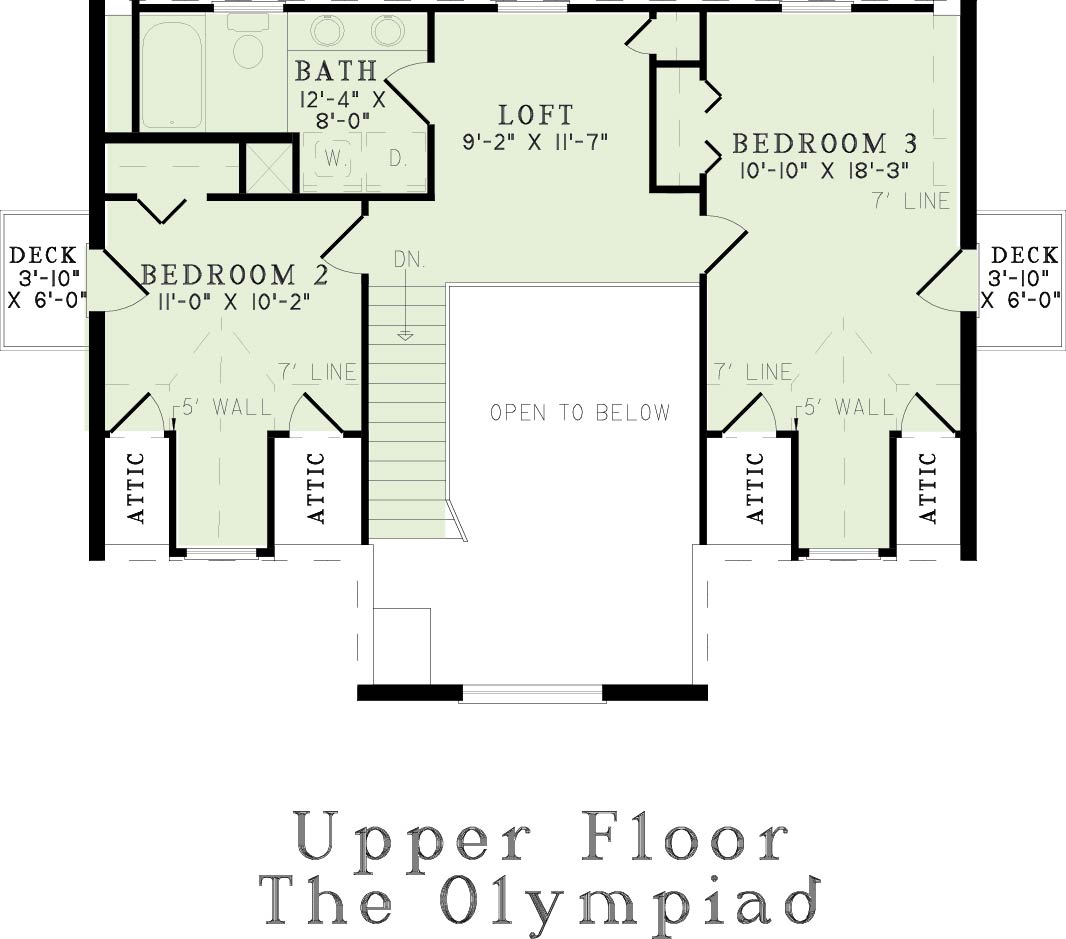

House Plan NDG B1065 Upper Floor
House Plan NDG B1065 Main Floor
House Plan NDG B1065 Upper Floor

Floor plans

House Plan NDG B1065 Main Floor

House Plan NDG B1065 Upper Floor
NDG B1065

House Plan B1065 The Olympiad, Barna Log Home House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG B1065
  • Total Living Space:1658 Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 45
  • Width In.: 8
  • Depth Ft.: 41
  • Depth In.: 8

Description

Specifications

  • Total Living Space:1658 Sq.Ft.
  • Main Floor: 1002 Sq.Ft
  • Upper Floor (Sq.Ft.): 656 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 184 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 1842 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: N/A
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: N/A
  • Ridge Height (Ft.): N/A
  • Ridge Height (In.): N/A
  • Insulation Exterior: N/A
  • Insulation Floor Minimum: N/A
  • Insulation Ceiling Minimum: N/A
  • Lower Bonus Space (Sq.Ft.): N/A
