House Plan B1010 The Westwind IV, Barna Log House Plan

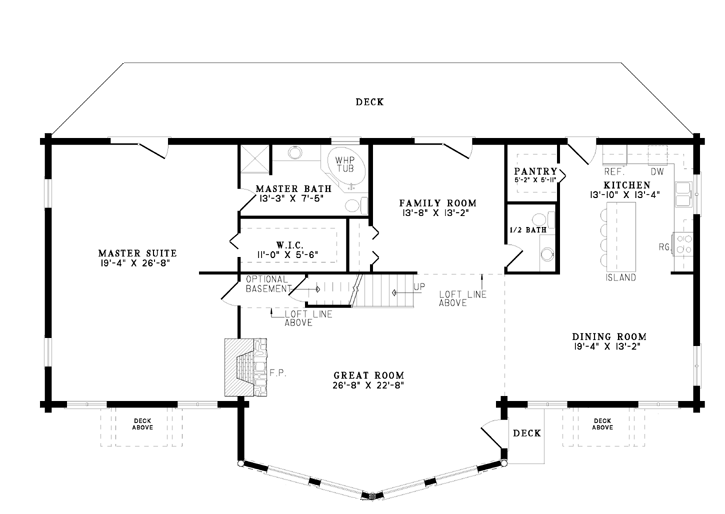

House Plan NDG B1010 Main Floor

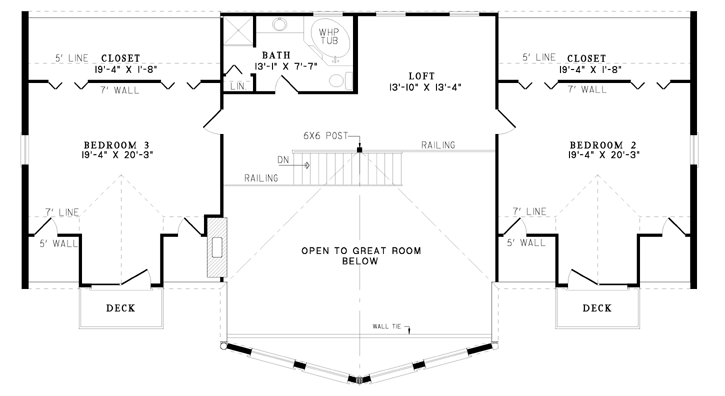

House Plan NDG B1010 Upper Floor
House Plan NDG B1010 Main Floor
House Plan NDG B1010 Upper Floor

Floor plans

NDG B1010

House Plan B1010 The Westwind IV, Barna Log House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG B1010
  • Total Living Space:3341Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: No
  • Garage Type: N/A
  • Carport: No
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 68
  • Width In.: N/A
  • Depth Ft.: 45
  • Depth In.: 5

Description

NDG B1010

A stunning addition to our Barna Log House Collection, The Westwind IV invites you in through lovely bay windows and gable dormers with private decks. Inside, the bay windows give the huge Great Room a wonderful view and plenty of natural light, while the stone fireplace adds a sense of warmth to the space. Partially open to the Great Room, the Family Room provides even more opportunities to gather with family and accesses the rear Deck. To the right, you will find the Dining Room and Kitchen, which features a center island with seating for 4 and a spacious walk-in pantry. On the left side of The Westwind IV, your Master Suite awaits! The master bedroom is huge and boasts private access to the rear Deck, as well as a large walk-in closet. The Master Bath is sure to please with a corner whirlpool tub and separate shower. The kids will love their space upstairs, complete with a Loft open to the lower level and a full bath, which includes a whirlpool tub and separate shower. Bedrooms 2 and 3 are also found here, each with tons of closet space and small private Decks overlooking the front of the property. How would you customize this amazing house plan?

NOTE: Barna plans are intended for log exterior walls. Converting these to 2X6 exterior walls requires modification and will be subject to additional modification cost. Contact one of our home plan specialists today to discuss modification requirements by emailing info@nelsondesigngroup.com or calling 870-931-5777

Customizing This House Plan

Make this house plan into your dream home!

We understand that when it comes to building a home you want it to be perfect for you. Our team of experienced house plan specialists would love to be able to help you through the process of modifying this, or any of the other house plans found on our website, to better fit your needs. Whether you know the exact changes you need made or just have some ideas that would like to discuss with our team send us an email at: info@nelsondesigngroup.com or give us a call at 870-931-5777 What to know a little more about the process of customizing one of our house plans? Check out our Modifications FAQ page.

Specifications

  • Total Living Space:3341Sq.Ft.
  • Main Floor: 2126 Sq.Ft
  • Upper Floor (Sq.Ft.): 1215 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): N/A
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 3341 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: N/A
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: N/A
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 0
  • Insulation Exterior: N/A
  • Insulation Floor Minimum: N/A
  • Insulation Ceiling Minimum: N/A
  • Lower Bonus Space (Sq.Ft.): N/A
