House Plan 998 Georgia Avenue, Midtown Place House Plan

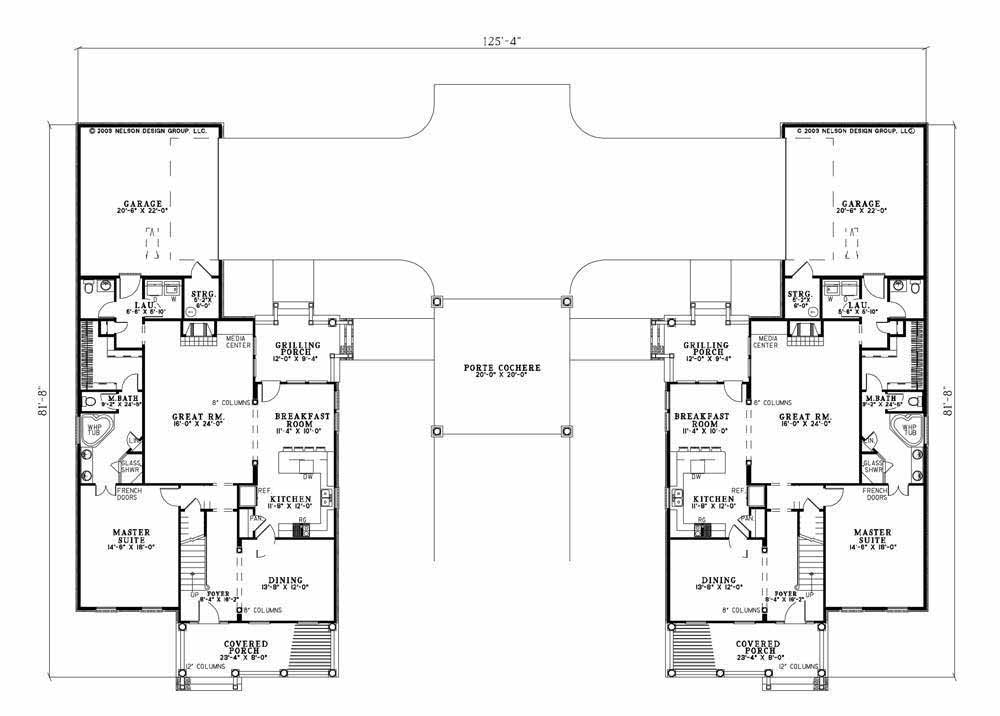

House Plan NDG 998 Main Floor

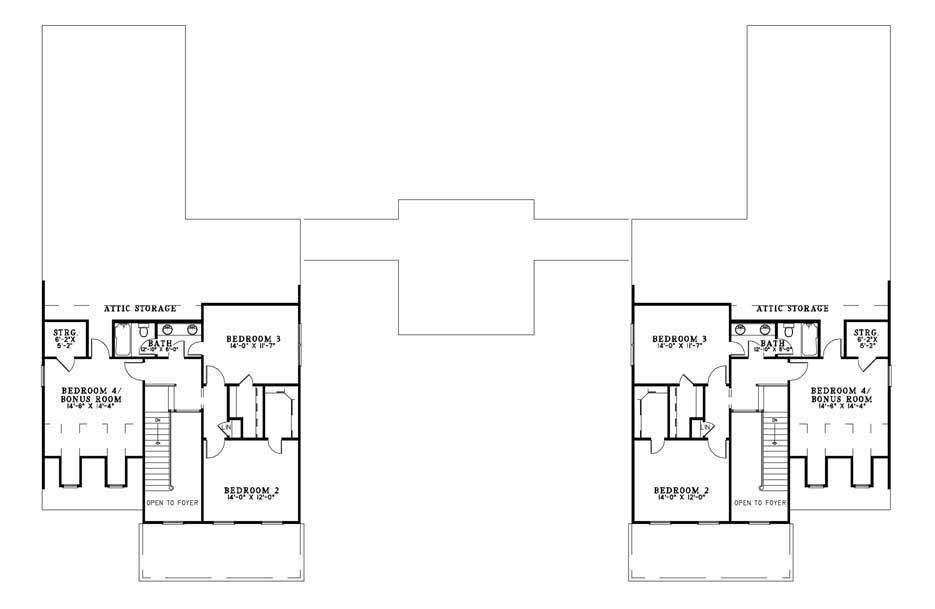

House Plan NDG 998 Upper Floor

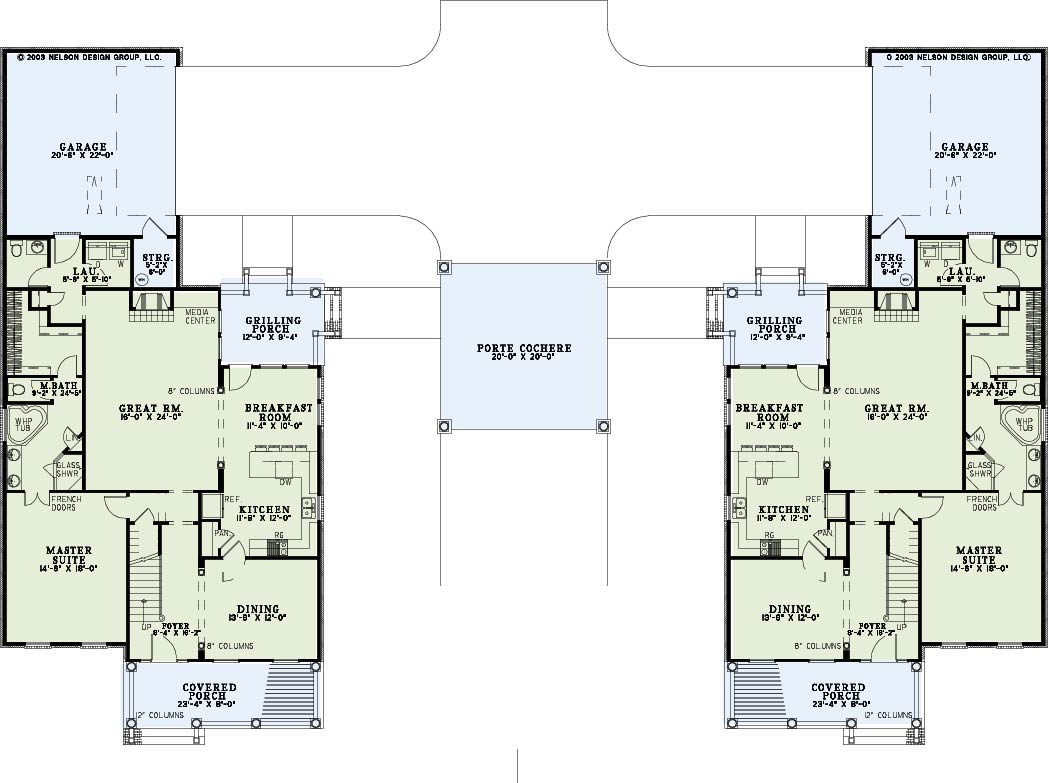

House Plan NDG 998 Main Floor

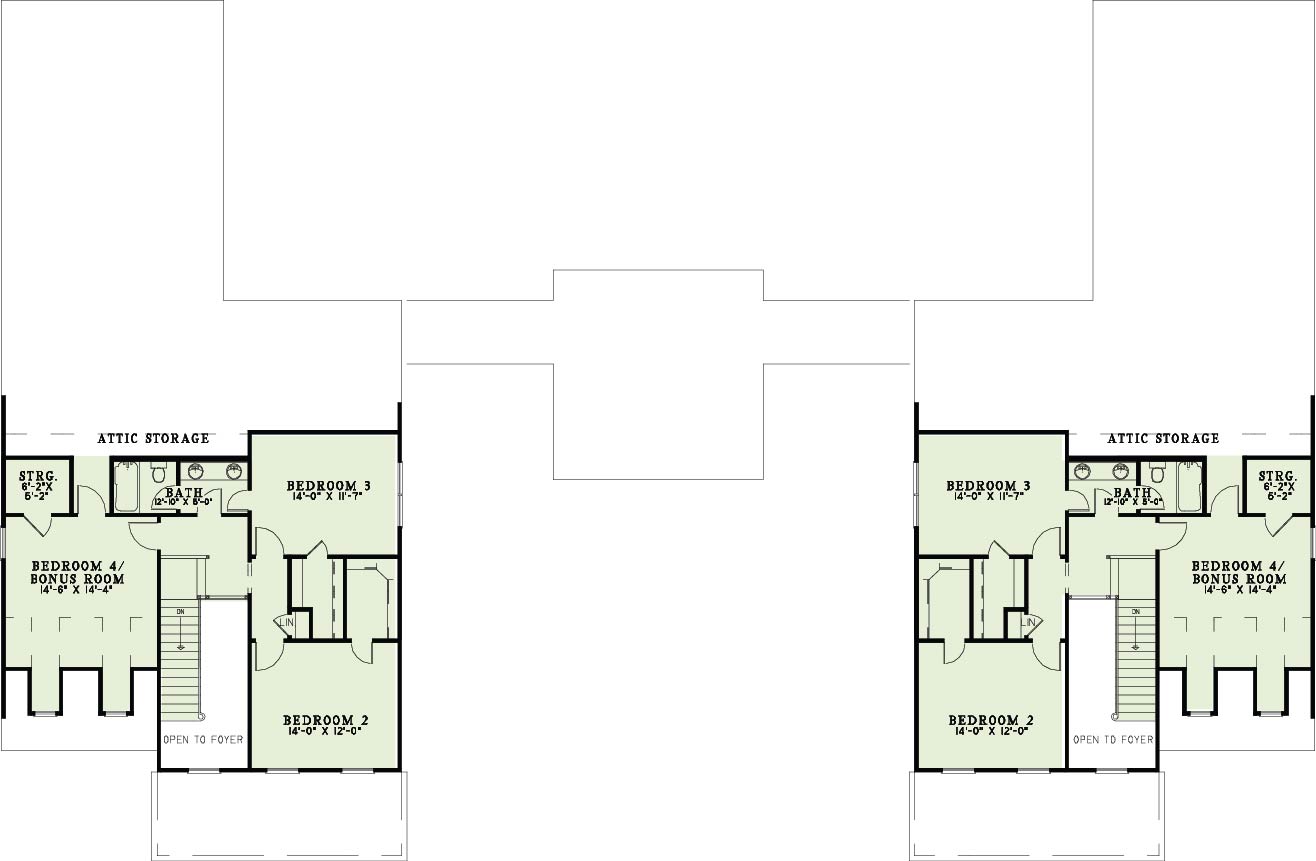

House Plan NDG 998 Upper Floor

Floor plans

NDG 998

House Plan 998 Georgia Avenue, Midtown Place House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 998
  • Total Living Space:2727Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: Yes
  • Carport Type: Porte Cochere
  • Stories: 1.5
  • Width Ft.: 125
  • Width In.: 4
  • Depth Ft.: 81
  • Depth In.: 8

Description

The outside of the attractive traditional home only hints at the comforts inside. The large kitchen features an island bar and a breakfast room perfect for casual family meals. For more formal occasions the dining room is conveniently accessed through a swinging doors. In a short hallway leading to the garage you’ll find a generously sized laundry room and half bath. The warm glow of the fireplace will draw everyone to the great room. Step past the fireplace on to the grilling porch. When bedtime beckons retreat to your luxurious master suite with the private master bath featuring a whirlpool bath. Upstairs there are two generous bedrooms to choose from along with a bonus room perfect for a home theater or game room.

Specifications

  • Total Living Space:2727Sq.Ft.
  • Main Floor: 1675 Sq.Ft
  • Upper Floor (Sq.Ft.): 1052 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 285 Sq.Ft.
  • Porch (Sq.Ft.): 588 Sq.Ft.
  • Garage (Sq.Ft.): 465 Sq.Ft.
  • Total Square Feet: 4065 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 33
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
