House Plan 993 Georgia Avenue, Midtown Place House Plan

House Plan NDG 993 Main Floor
House Plan NDG 993 Main Floor

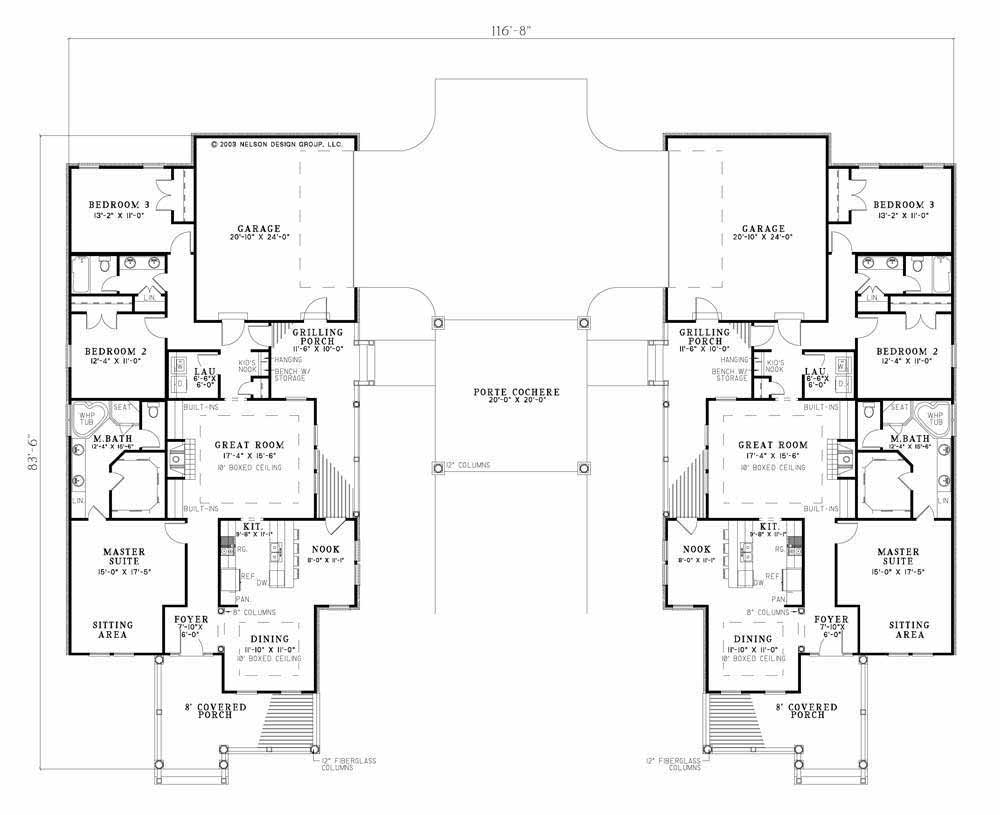

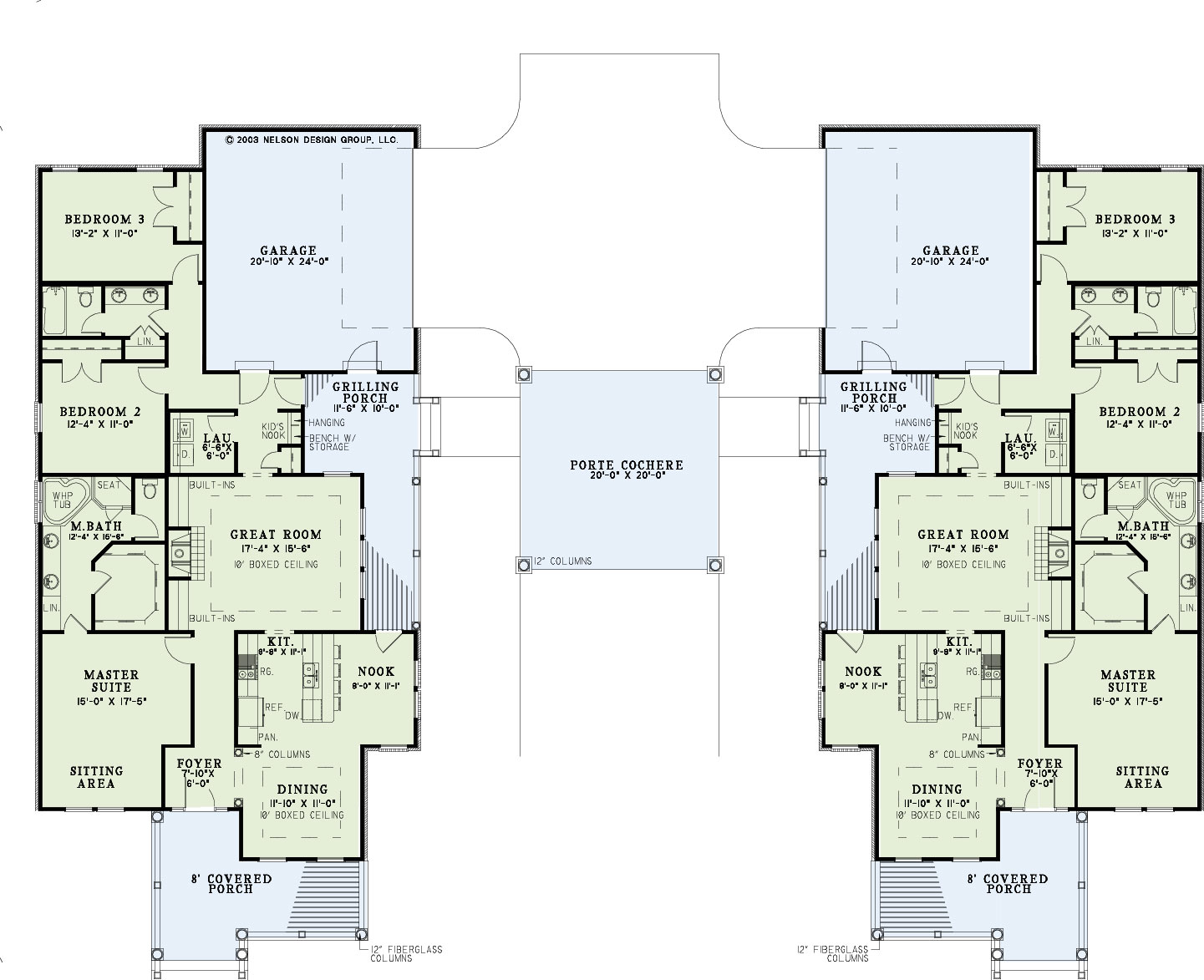

Floor plans

NDG 993

House Plan 993 Georgia Avenue, Midtown Place House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 993
  • Total Living Space:1848Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 116
  • Width In.: 8
  • Depth Ft.: 83
  • Depth In.: 6

Description

Gather with your neighbors under the shared porte cochere featured in this Nelson Design Group home. Each home has a cozy front porch with columns, as well as a covered grilling porch; perfect for cookouts. In addition to the amenity-filled master suite, each home also houses two secondary bedrooms for the kids or guests. Built-ins surround the fireplace in each great room with boxed ceiling. A step-saver kitchen and dining area help to complete each of the homes in this cleverly unique design.

Specifications

  • Total Living Space:1848Sq.Ft.
  • Main Floor: 1848 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 430 Sq.Ft.
  • Garage (Sq.Ft.): 429 Sq.Ft.
  • Total Square Feet: 2707 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
