House Plan 992 Georgia Avenue, Multi-Family House Plan

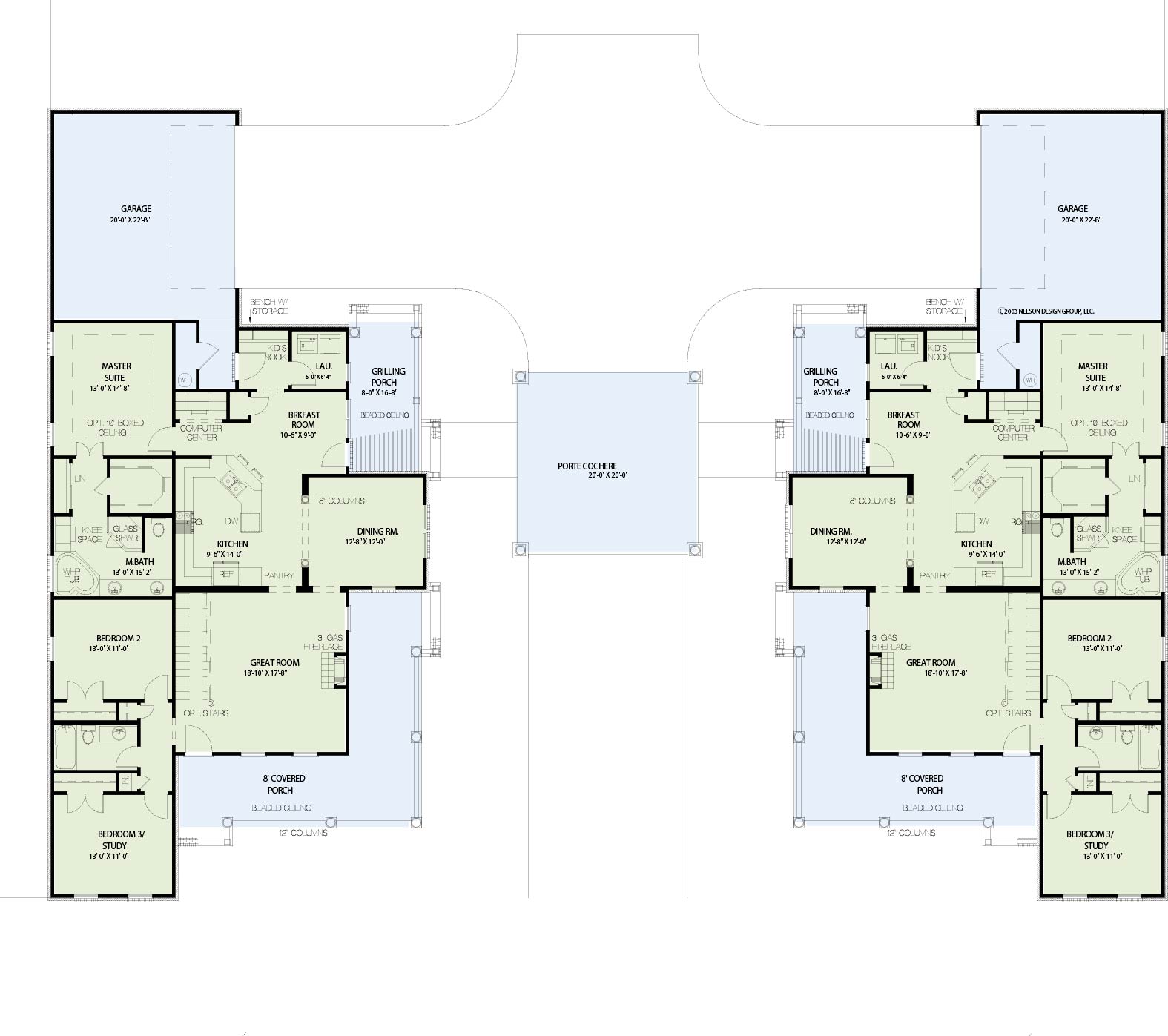

House Plan NDG 992 Main Floor

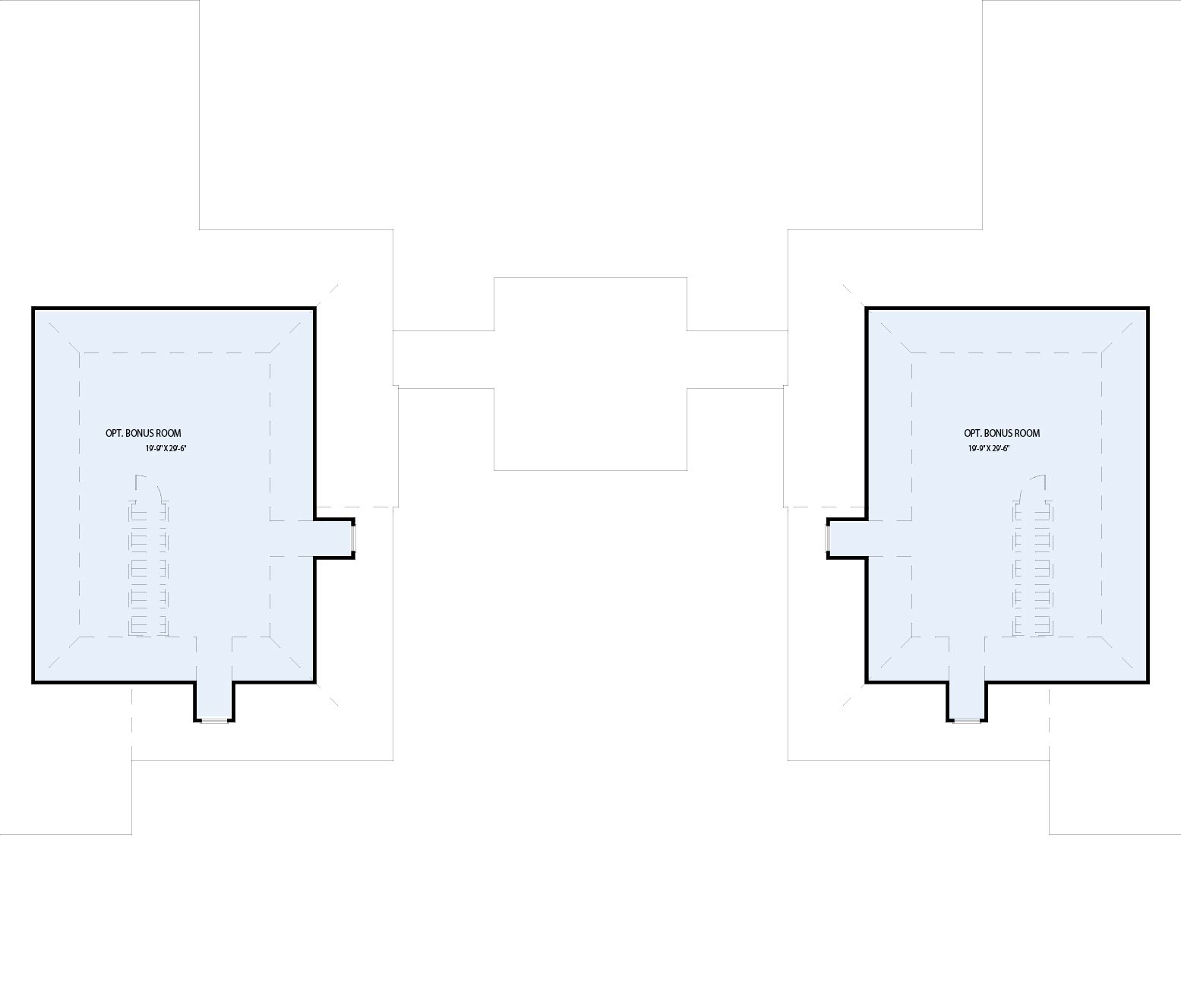

House Plan NDG 992 Bonus Room
House Plan NDG 992 Main Floor
House Plan NDG 992 Bonus Room

Floor plans

NDG 992

House Plan 992 Georgia Avenue, Multi-Family House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 992
  • Total Living Space:1845Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 122
  • Width In.: 8
  • Depth Ft.: 86
  • Depth In.: 8

Description

This multi-family plan features a shared porte cochere, perfect for dropping off family or friends before parking in the rear garage. An inviting wrap-around porch adds charm to the front while the spacious great room offers a fireplace. The cozy kitchen has an eat-at peninsula bar and is open to the dining and breakfast rooms. Around the corner is the master suite with a great walk-in closet, and double vanities, a corner whirlpool tub and glass shower. 2 additional bedrooms are located at the front of the house, off of the great room, that share a bathroom. And a massive optional bonus room could offer tons of ideas upstairs.

Specifications

  • Total Living Space:1845Sq.Ft.
  • Main Floor: 1845 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 1191 Sq.Ft.
  • Porch (Sq.Ft.): 465 Sq.Ft.
  • Garage (Sq.Ft.): 496 Sq.Ft.
  • Total Square Feet: 3997 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: 6:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 29
  • Ridge Height (In.): 7
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
