House Plan 989 Georgia Avenue, Midtown Place House Plan

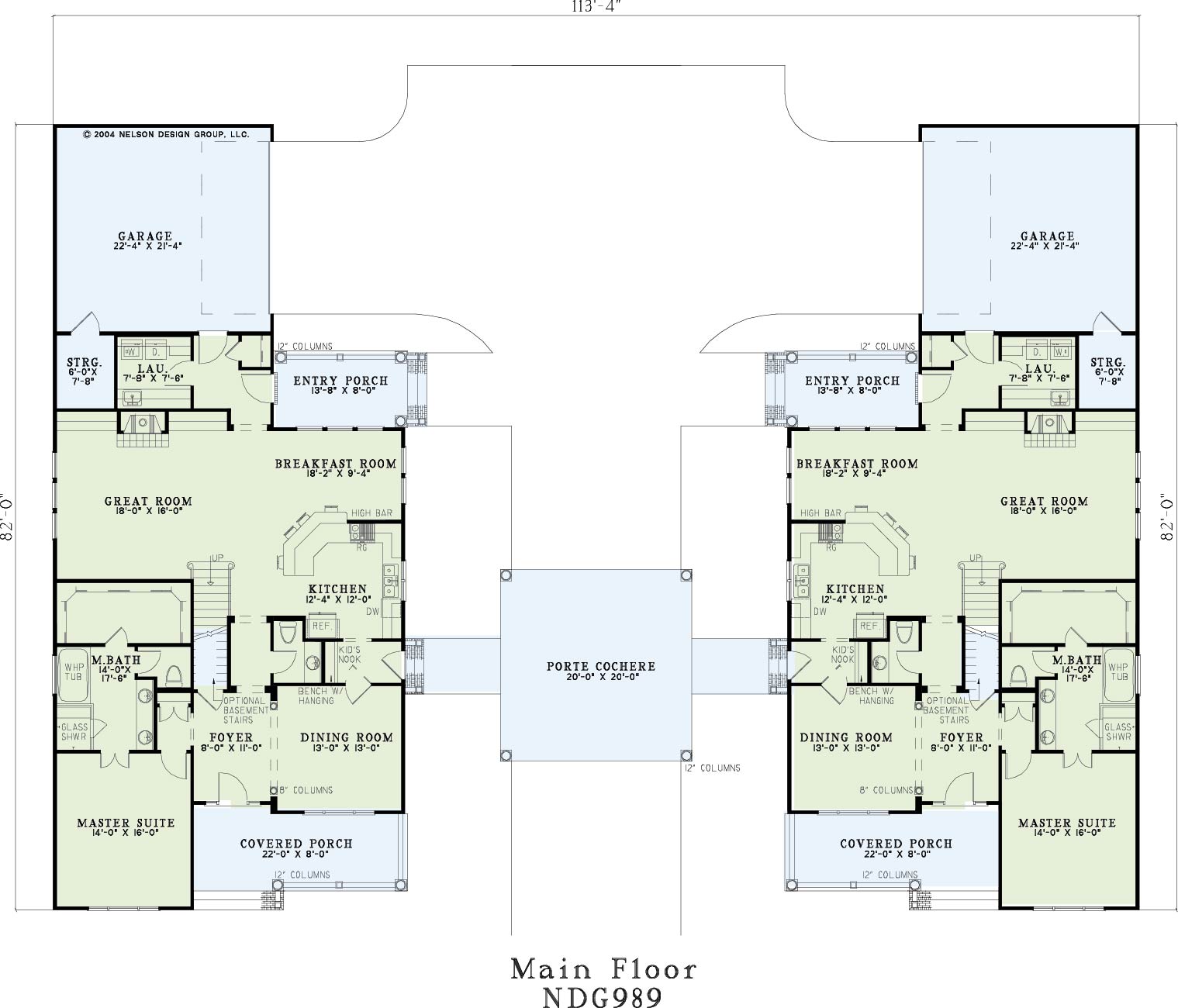

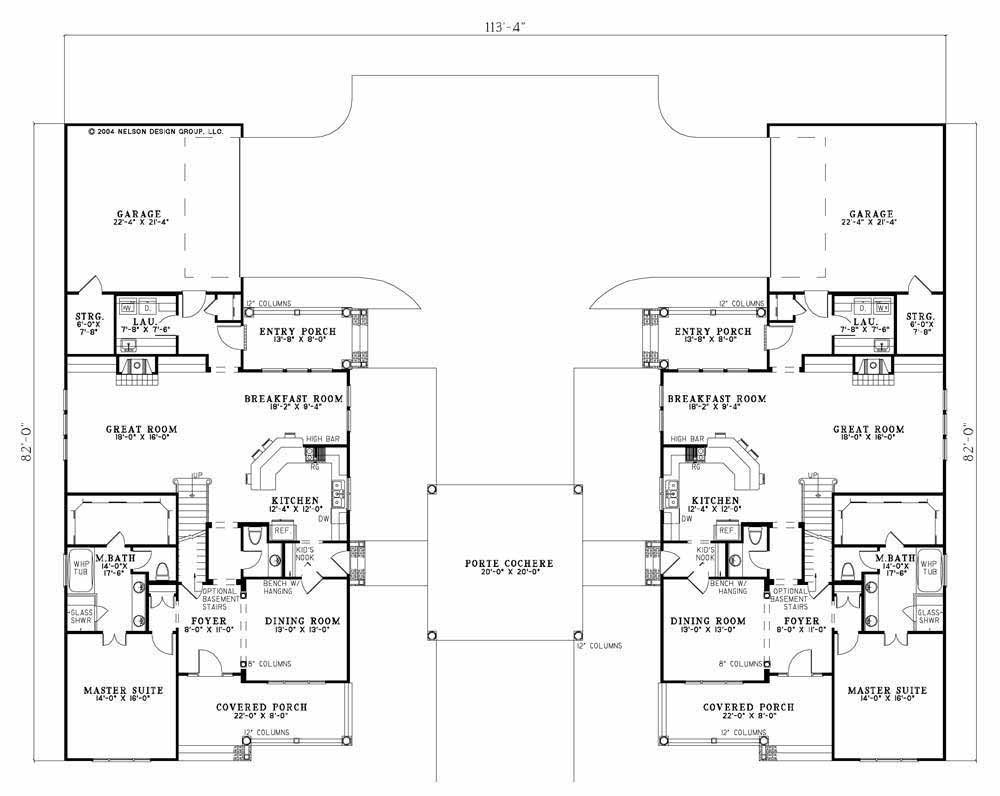

House Plan NDG 989 Main Floor

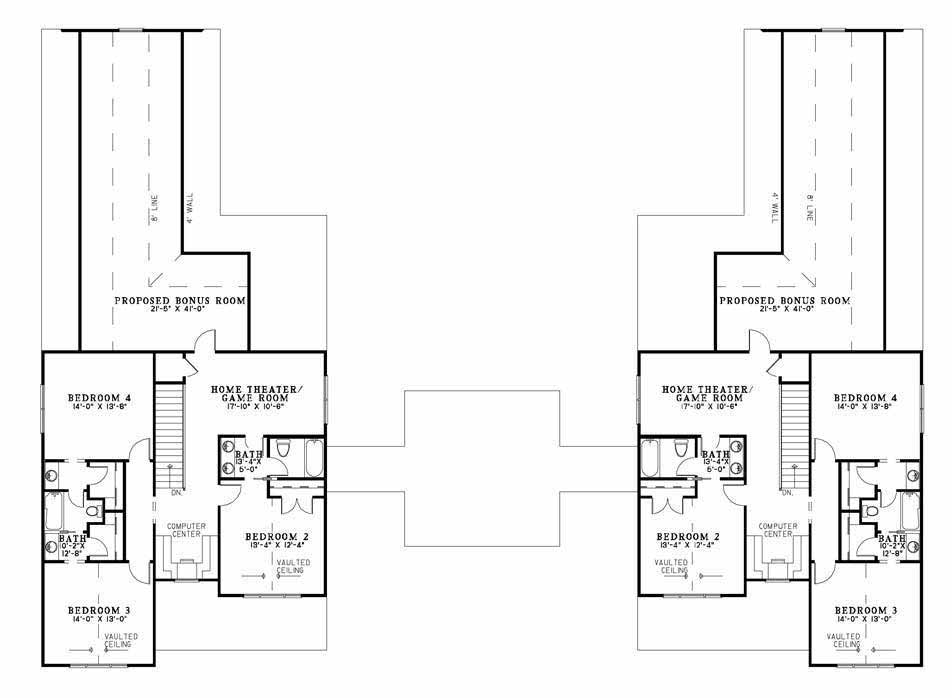

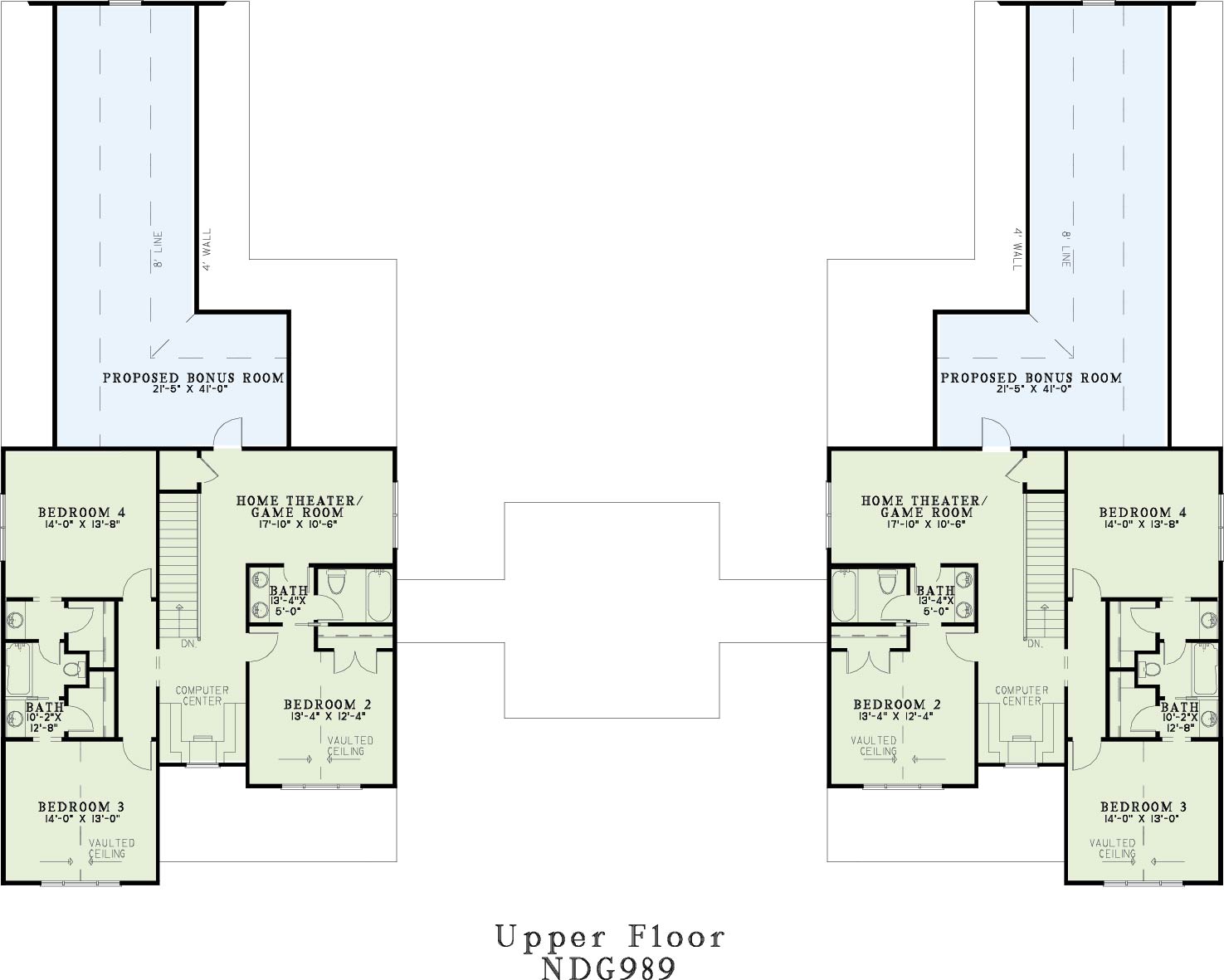

House Plan NDG 989 Upper Floor
House Plan NDG 989 Main Floor
House Plan NDG 989 Upper Floor

Floor plans

NDG 989

House Plan 989 Georgia Avenue, Midtown Place House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 989
  • Total Living Space:3022Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 113
  • Width In.: 4
  • Depth Ft.: 82
  • Depth In.: N/A

Description

There’s room to do a lot of living without taking up a lot of space in this traditional dual family plan from Nelson Design Group. The charming Porte Cochere is a focal point of this mirrored twin design. Other exterior highlights include a covered front porch and an entry porch in the rear of the home. Inside features a main floor master suite with a giant walk closet and master bath with both a separate whirlpool bath and shower. The stairs from the foyer leads to three more bedrooms, a home theater/game room, and a unique bonus room.

Specifications

  • Total Living Space:3022Sq.Ft.
  • Main Floor: 1796 Sq.Ft
  • Upper Floor (Sq.Ft.): 1226 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 351 Sq.Ft.
  • Garage (Sq.Ft.): 549 Sq.Ft.
  • Total Square Feet: 3922 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 34
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
