House Plan 988 Georgia Avenue, Midtown Place House Plan

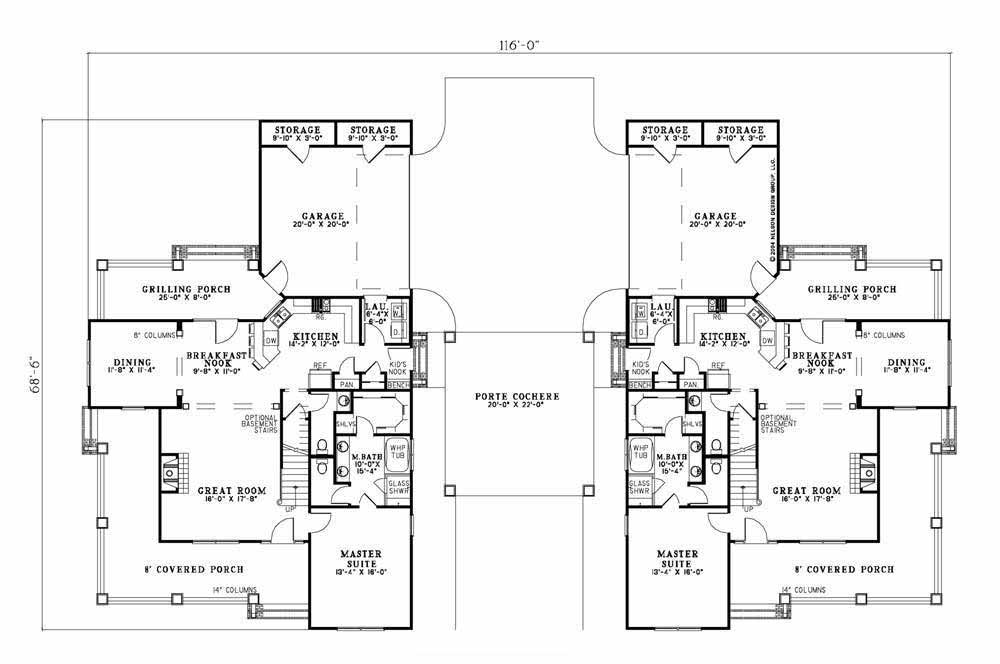

House Plan NDG 988 Main Floor

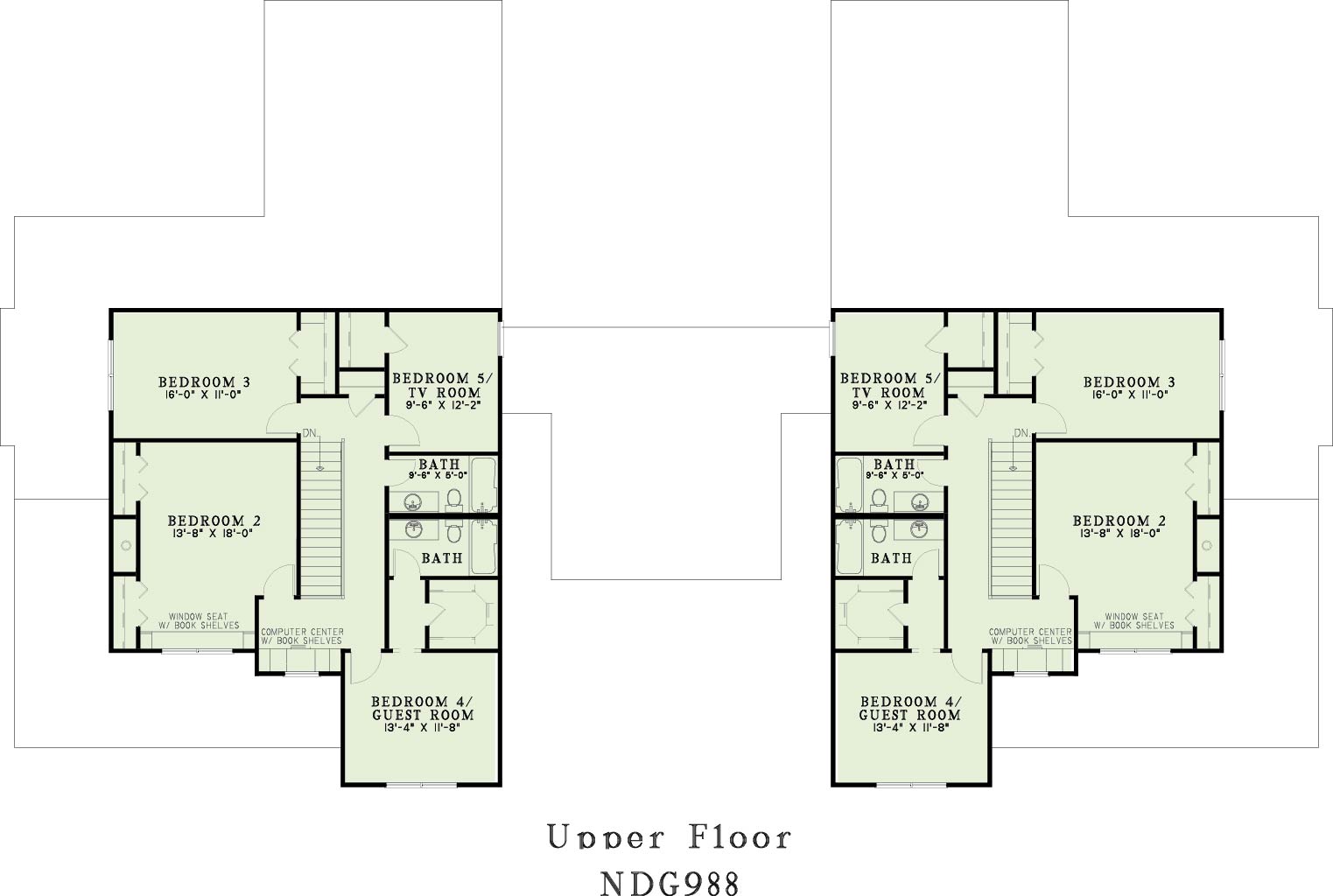

House Plan NDG 988 Upper Floor

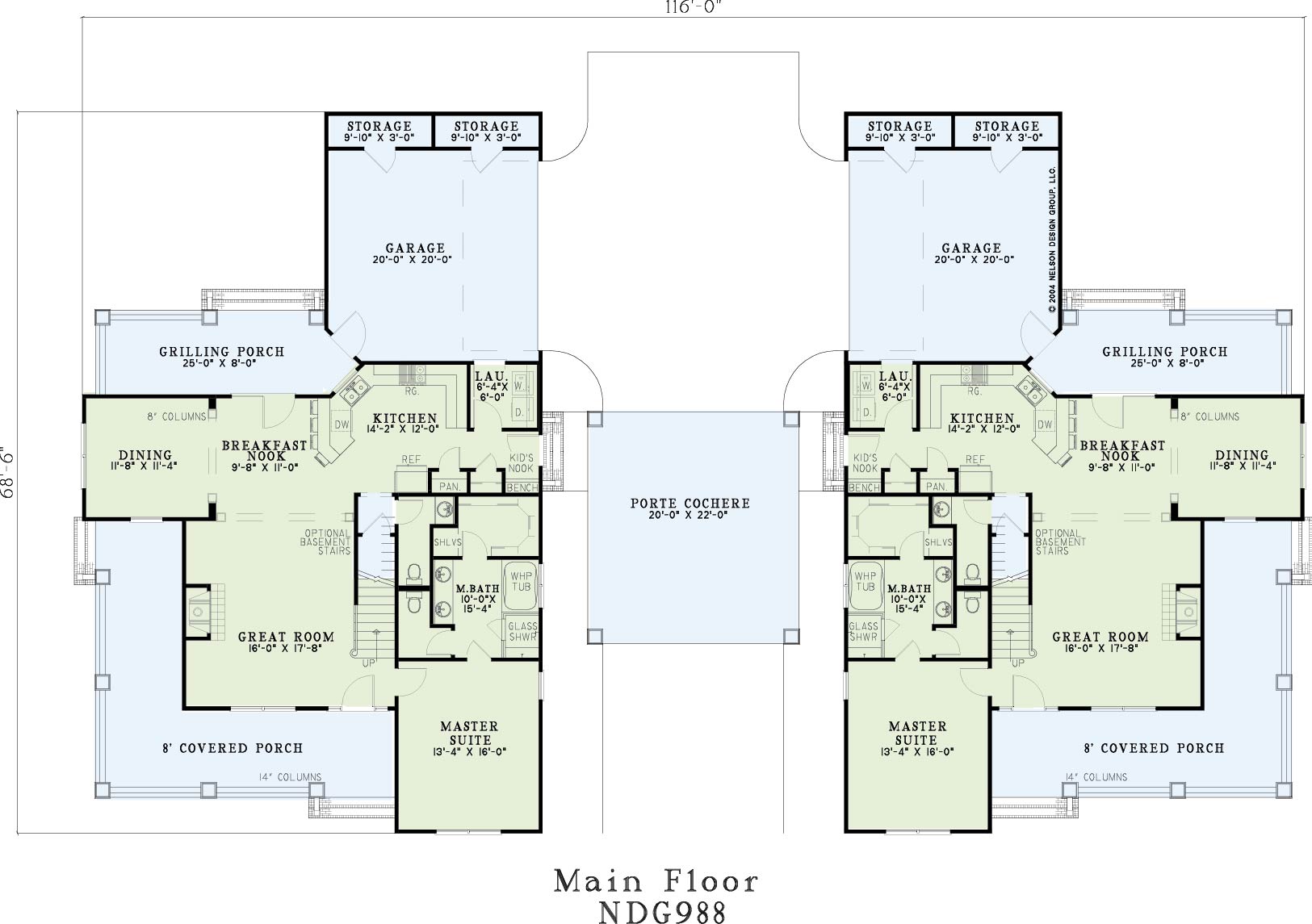

House Plan NDG 988 Main Floor

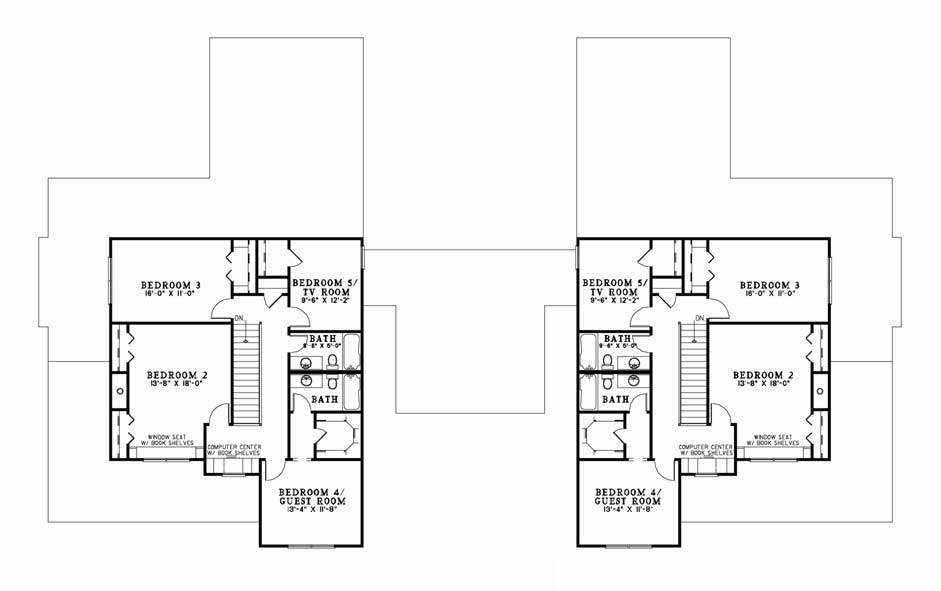

House Plan NDG 988 Upper Floor

Floor plans

NDG 988

House Plan 988 Georgia Avenue, Midtown Place House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 988
  • Total Living Space:2516Sq.Ft.
  • Bedrooms: 5
  • Full Baths: 3
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: Yes
  • Carport Type: Porte Cochere
  • Stories: 2
  • Width Ft.: 116
  • Width In.: N/A
  • Depth Ft.: 68
  • Depth In.: 6

Description

This spectacular design is an exceptional creation by Nelson Design Group. Two gorgeous homes adjoined by a common porte cochere make for a wonderful shared area for neighbors – add a basketball goal and you have a courtside seat! Each private residence has a front covered-porch with tapered columns atop rock pillars and a rear-porch privately located behind the garage. These well-planned interiors have a large great room with fireplace and a quaint breakfast nook centered between the dining room and spacious kitchen. The master suite is placed on the main-level and includes a private bathroom with all the amenities and a large walk-in closet with shelves. The upper level has four additional bedrooms and two full bathrooms. One bedroom has a private bathroom and large walk-in closet making the perfect set-up mature family member. A convenient computer/study center is located just at the top of the stairs for easy supervision.

Specifications

  • Total Living Space:2516Sq.Ft.
  • Main Floor: 1360 Sq.Ft
  • Upper Floor (Sq.Ft.): 1156 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 600 Sq.Ft.
  • Garage (Sq.Ft.): 839 Sq.Ft.
  • Total Square Feet: 3955 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 34
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
