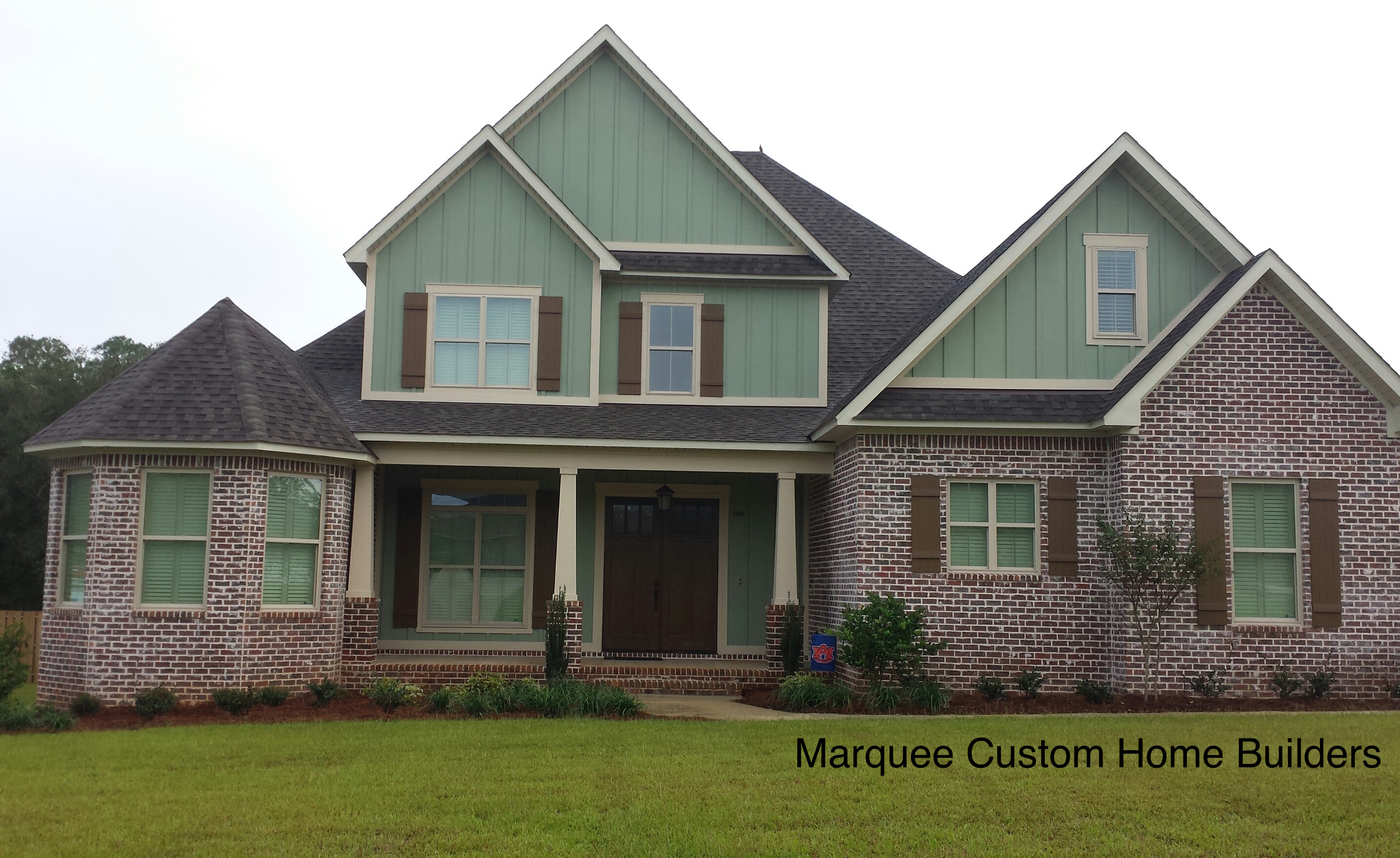

House Plan - marquee957 Front Exterior

Floor plans

NDG 957

House Plan 957 Anna Lane, Heritage House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 957
  • Total Living Space:2852Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: Yes 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 57
  • Width In.: N/A
  • Depth Ft.: 73
  • Depth In.: 4

Description

This craftsman style Nelson Design Group plan has a , unique exterior. Your family and guests alike will love the spacious great room that flows into the breakfast room. The private master bedroom is accompanied with a luxurious master bath – perfect for relaxing after a long day. Enjoy your view from the theater balcony on your way to one of the bedrooms housed on the upper floor. A large bonus room is also available, only adding to the options showcased in this wonderful design.

Specifications

  • Total Living Space:2852Sq.Ft.

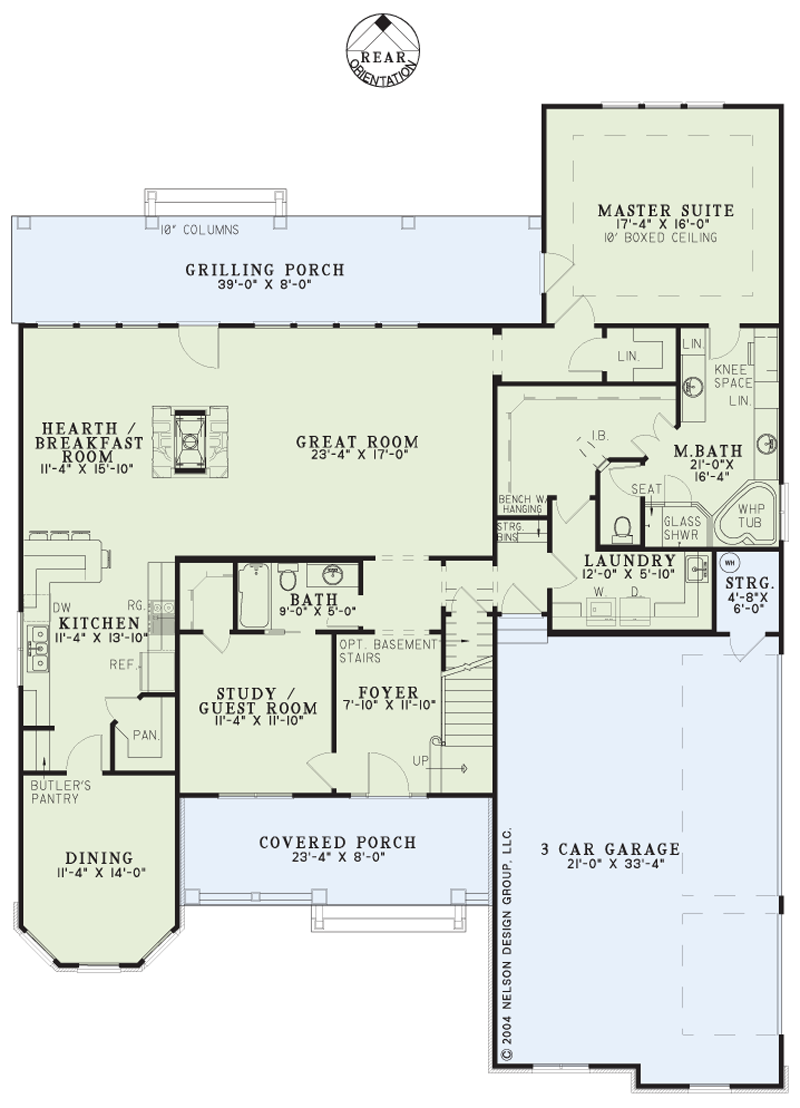

  • Main Floor: 2158 Sq.Ft

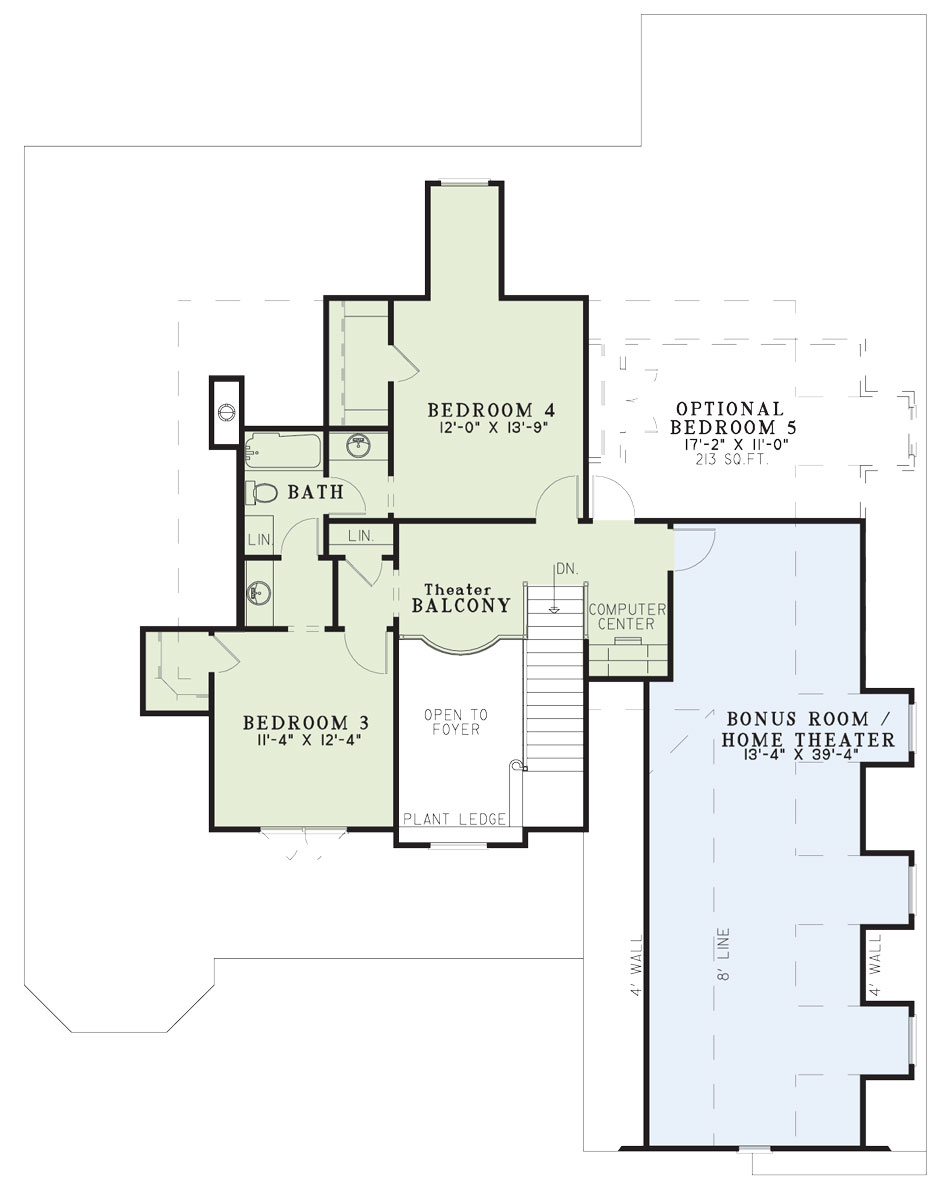

  • Upper Floor (Sq.Ft.): 694 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 587 Sq.Ft.
  • Porch (Sq.Ft.): 501 Sq.Ft.
  • Garage (Sq.Ft.): 746 Sq.Ft.
  • Total Square Feet: 4686 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 32
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
