House Plan 954 Ambrose Boulevard, Heritage House Plan

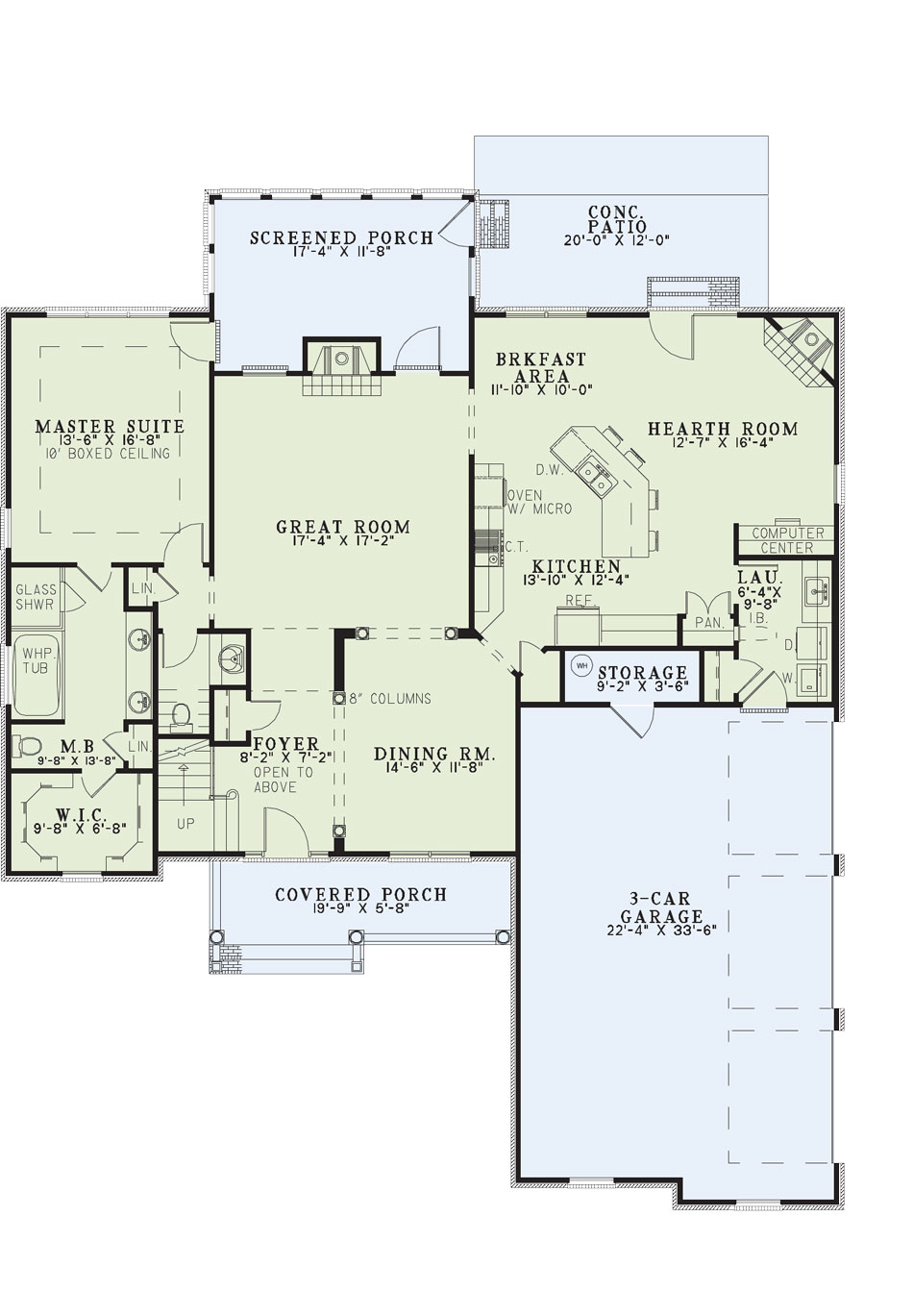

House Plan NDG 954 Main Floor

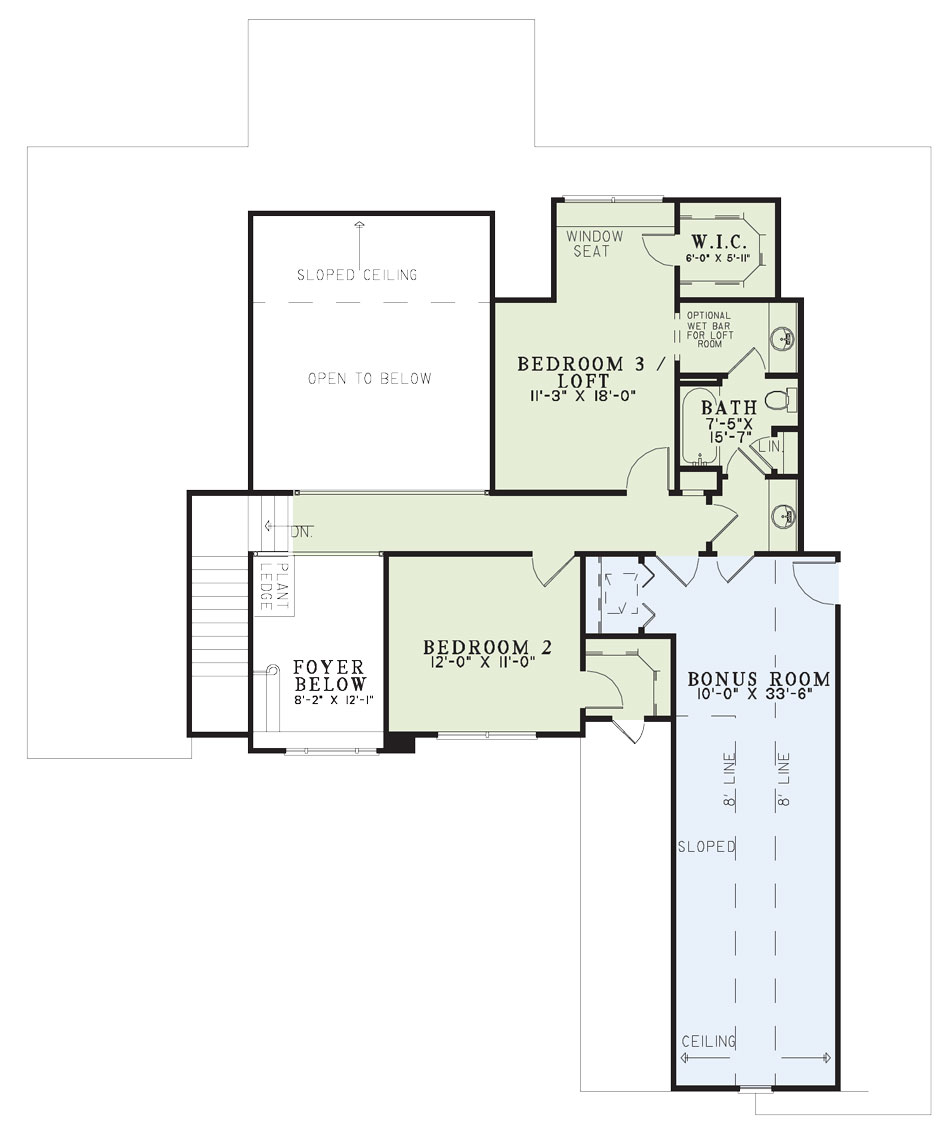

House Plan NDBG 954 Upper Floor
House Plan NDG 954 Main Floor
House Plan NDBG 954 Upper Floor

Floor plans

NDG 954

House Plan 954 Ambrose Boulevard, Heritage House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 954
  • Total Living Space:2354Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 56
  • Width In.: 8
  • Depth Ft.: 68
  • Depth In.: 8

Description

This home from Nelson Design Group boasts a gorgeous exterior and excellent street appeal. Warm yourself by the corner fireplace in the hearth room after preparing a meal in the well-planned kitchen. A generous great room with a second fireplace leads onto the large screened porch, ideal for summer barbecues. The upper floor houses two additional bedrooms and a bonus room, perfect for a future game room or home theater.

Specifications

  • Total Living Space:2354Sq.Ft.
  • Main Floor: 1770 Sq.Ft
  • Upper Floor (Sq.Ft.): 584 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 385 Sq.Ft.
  • Porch (Sq.Ft.): 347 Sq.Ft.
  • Garage (Sq.Ft.): 759 Sq.Ft.
  • Total Square Feet: 3845 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 32
  • Ridge Height (In.): 9
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
