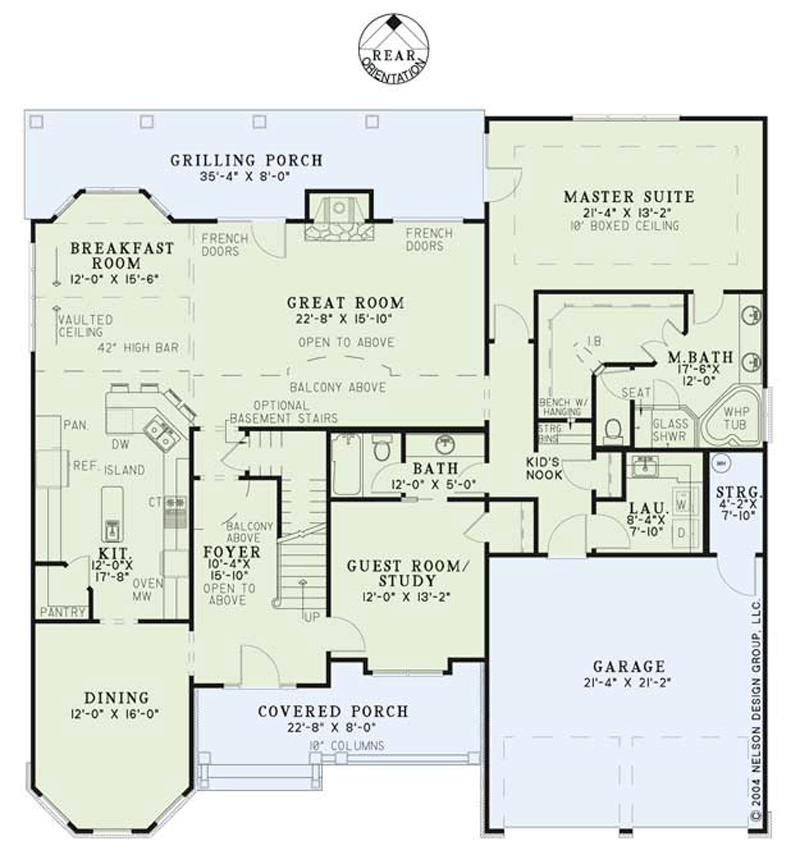

House Plan NDG 950 Main Floor

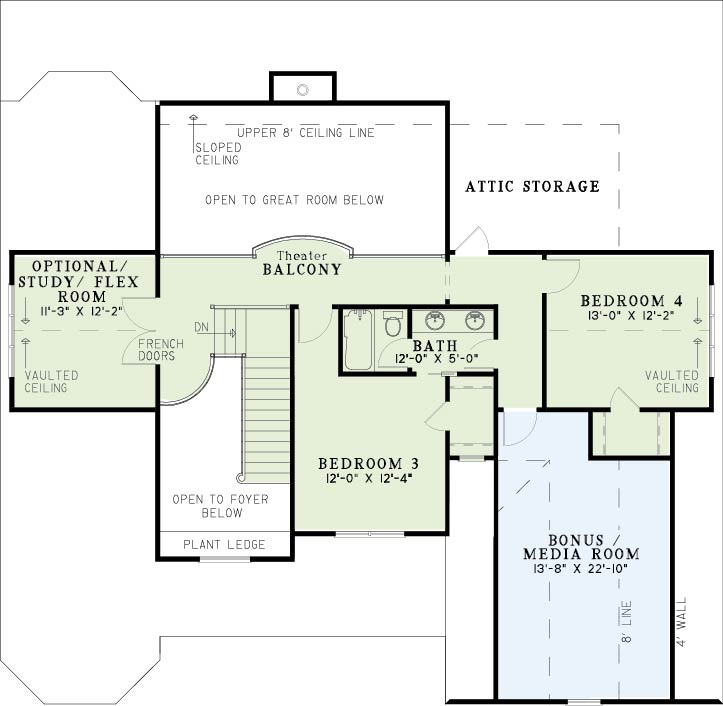

House Plan NDG 950 Upper Floor

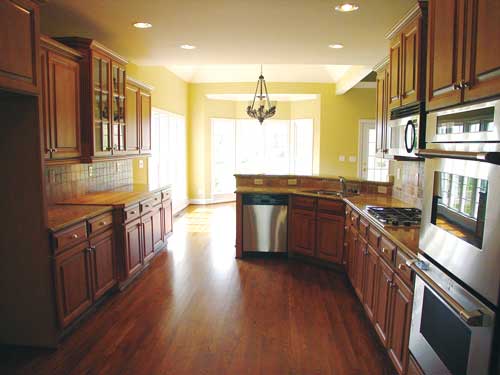

House Plan - 92kitch_p 950 Kitchen

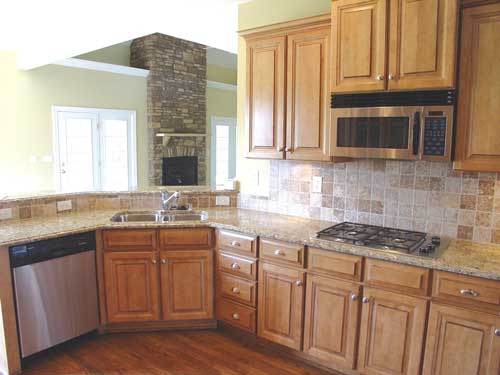

House Plan - ndg950kitch2p 950 Kitchen 2

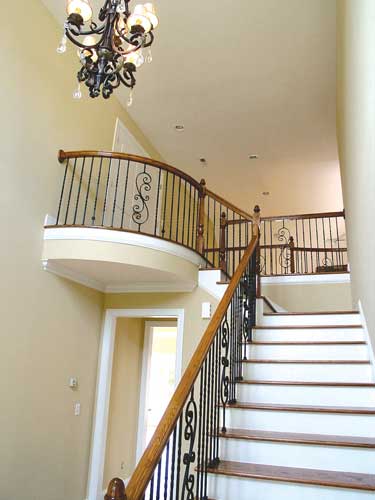

House Plan - 950foyer_p 950 Foyer

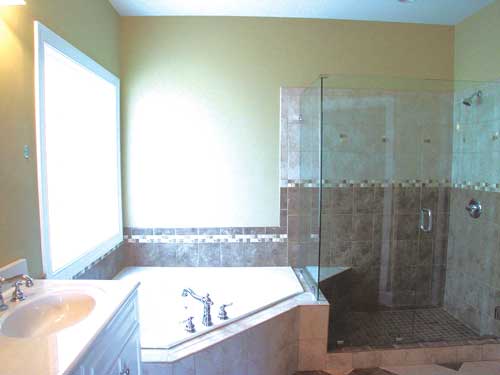

House Plan - 950bath_p 950 Bath

Floor plans

NDG 950

House Plan 950 Sophia Circle, Heritage House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 950
  • Total Living Space:2815Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 57
  • Width In.: 4
  • Depth Ft.: 55
  • Depth In.: 10

Description

Family unity and tradition come together in this home designed by Nelson Design Group. A generous great room provides the perfect setting for family movie night. Preparing meals will be a breeze, and serving them will be just as simple with the adjoining breakfast and dining rooms, both with bay windows. The master suite is nestled in the rear of this home on the main level. The upper floor offers balcony views of the great room and the foyer, as well as two more bedrooms and a media room option.

Specifications

  • Total Living Space:2815Sq.Ft.
  • Main Floor: 2142 Sq.Ft
  • Upper Floor (Sq.Ft.): 673 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 455 Sq.Ft.
  • Porch (Sq.Ft.): 417 Sq.Ft.
  • Garage (Sq.Ft.): 507 Sq.Ft.
  • Total Square Feet: 4194 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 32
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
