House Plan 949 Ambrose Boulevard, Heritage House Plan

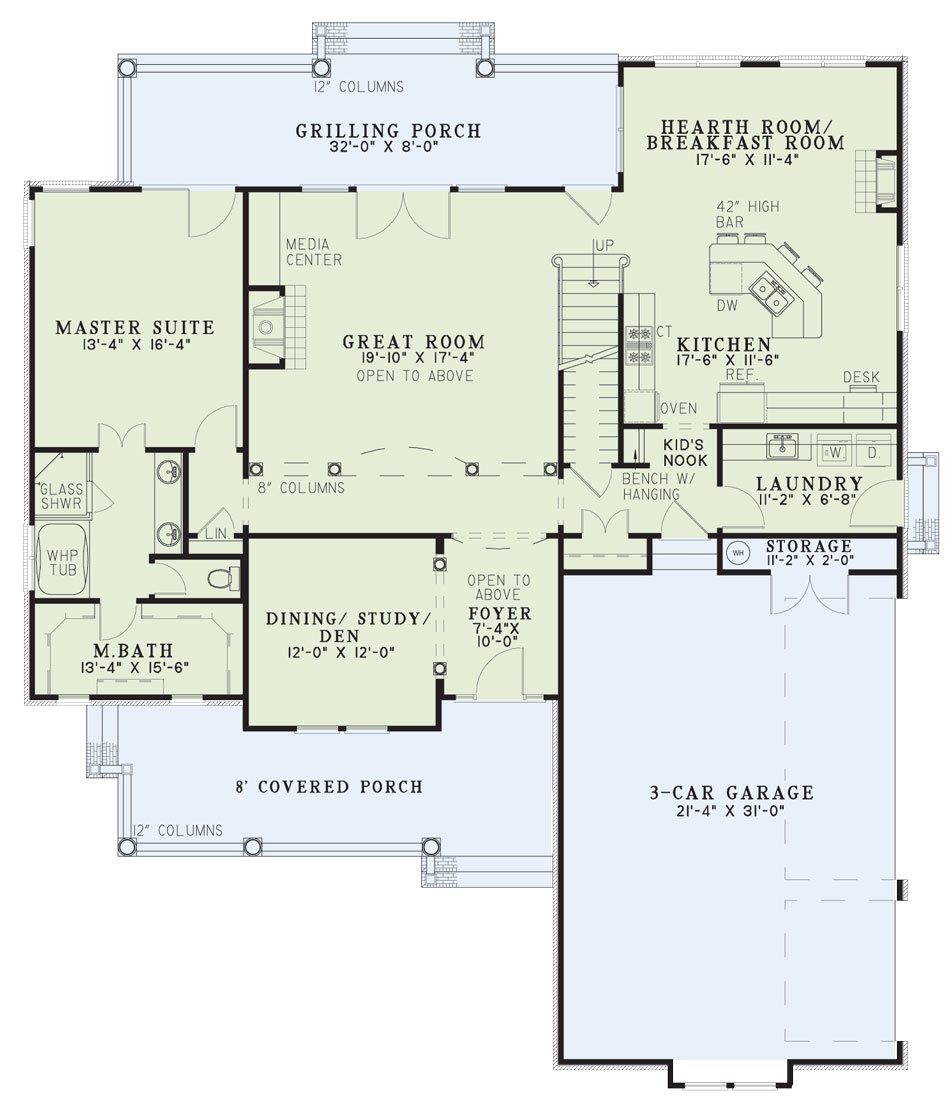

House Plan NDG 949 Main Floor

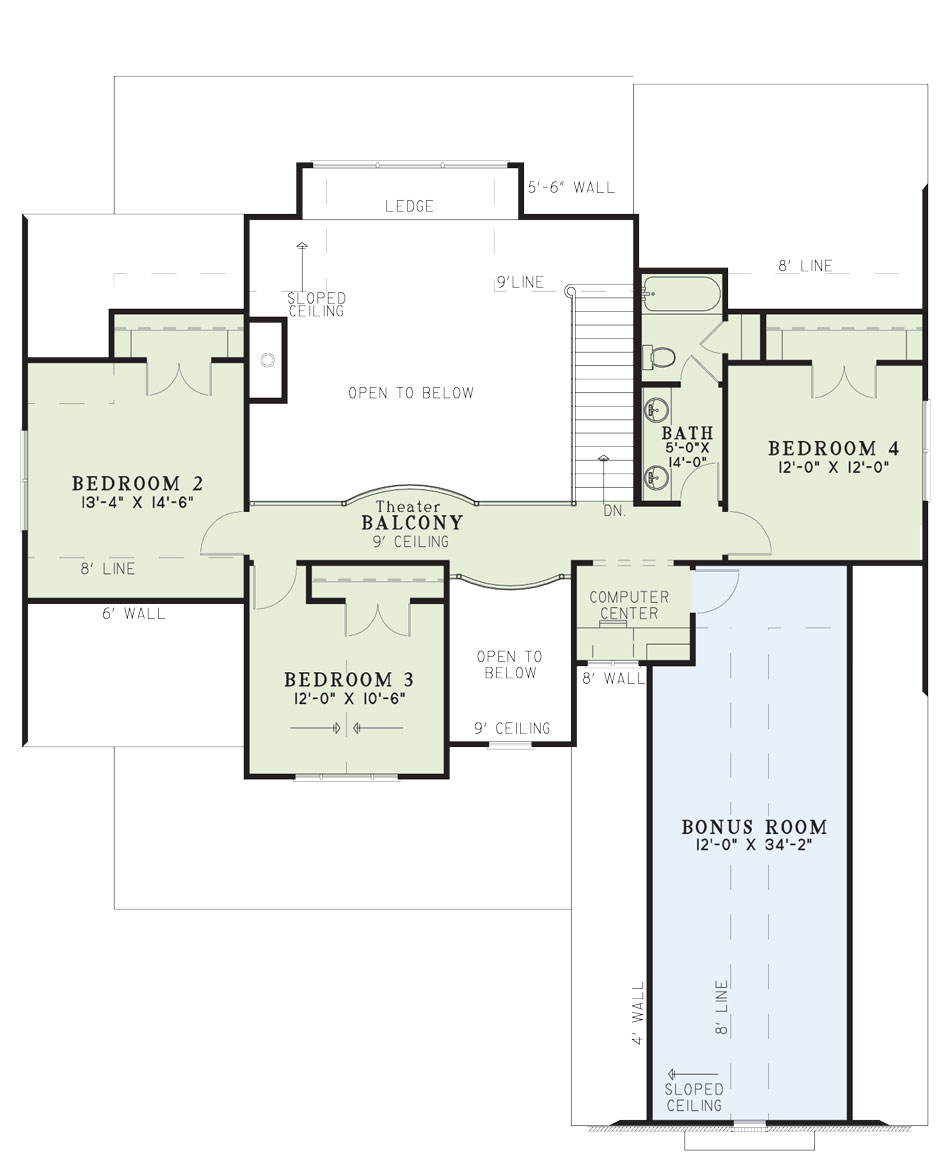

House Plan NDG 949 Upper Floor
House Plan NDG 949 Main Floor
House Plan NDG 949 Upper Floor

Floor plans

NDG 949

House Plan 949 Ambrose Boulevard, Heritage House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 949
  • Total Living Space:2651Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 55
  • Width In.: 10
  • Depth Ft.: 65
  • Depth In.: 8

Description

Picture yourself in this traditional Nelson Design Group home. The spacious great room boasts a fireplace, media center, and French doors that lead to the rear grilling porch. A breakfast room merges with the kitchen to form a large serving area. Feel free to relax in the whirlpool bath in your luxurious master suite. The upper level of this home has a theater balcony that looks over the great room and into the foyer. A kid’s nook, computer center, and a bonus room complete this family oriented design.

Specifications

  • Total Living Space:2651Sq.Ft.
  • Main Floor: 1793 Sq.Ft
  • Upper Floor (Sq.Ft.): 858 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 418 Sq.Ft.
  • Porch (Sq.Ft.): 504 Sq.Ft.
  • Garage (Sq.Ft.): 736 Sq.Ft.
  • Total Square Feet: 4309 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 31
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
