House Plan 930 Park Street, Midtown Village House Plan

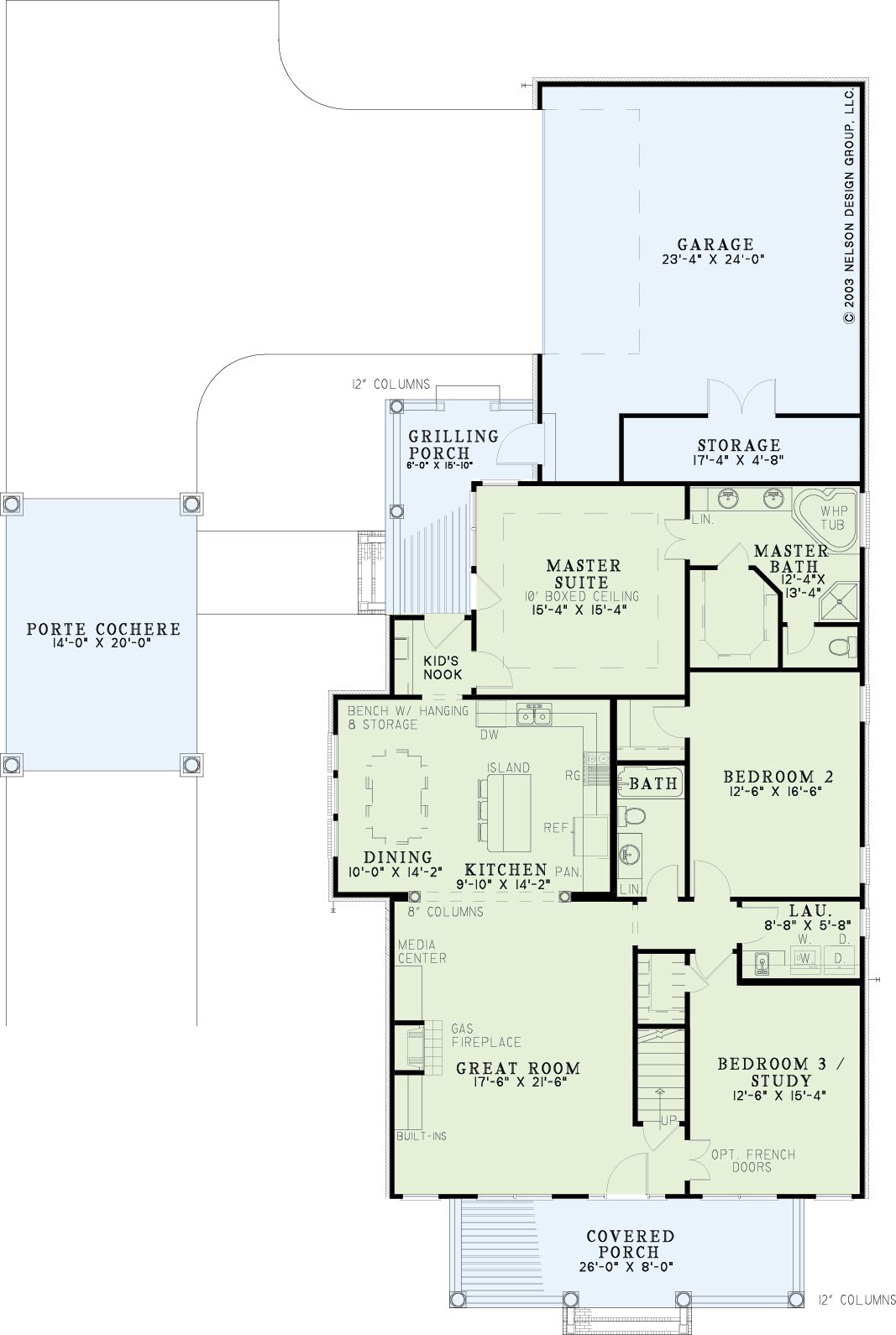

House Plan NDG 930 Main Floor

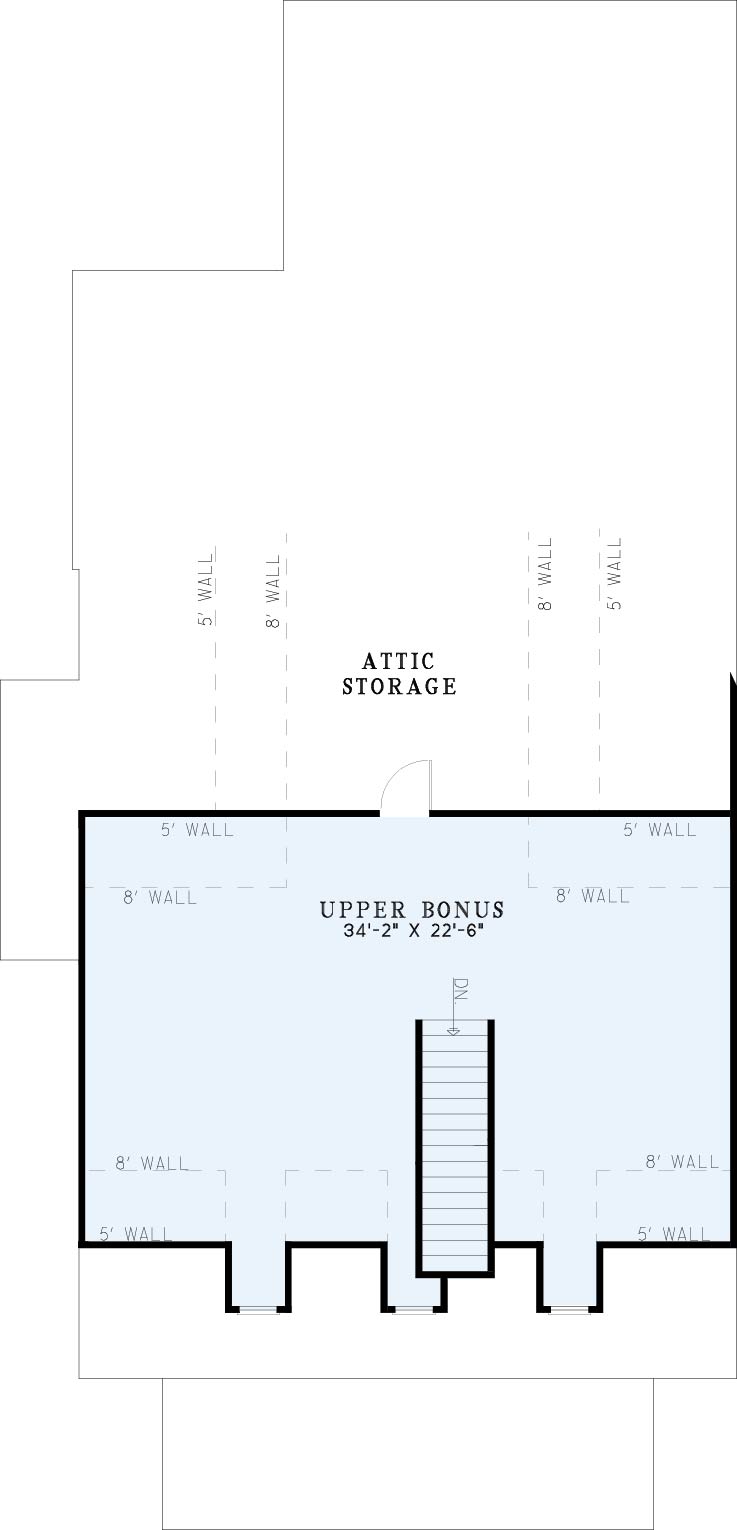

House Plan NDG 930 Upper Floor/Bonus Room
House Plan NDG 930 Main Floor
House Plan NDG 930 Upper Floor/Bonus Room

Floor plans

NDG 930

House Plan 930 Park Street, Midtown Village House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 930
  • Total Living Space:1832Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: Yes
  • Carport Type: Porte Cochere
  • Stories: 1
  • Width Ft.: 63
  • Width In.: N/A
  • Depth Ft.: 90
  • Depth In.: N/A

Description

This timeless design Nelson Design Group has amenities galore! The cozy front porch is quite the contrast from the great room media center- but reflective of how this home caters to family. An open kitchen and dining room combination share a large work island with seating, for large gatherings at dinner time. The heads of the home will enjoy a private a master suite with 10-foot boxed ceiling and access to the rear-grilling porch. Two bedrooms finish out the main level and a massive bonus room is located on the upper floor, for a world of opportunity!

Specifications

  • Total Living Space:1832Sq.Ft.
  • Main Floor: 1832 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 790 Sq.Ft.
  • Porch (Sq.Ft.): 418 Sq.Ft.
  • Garage (Sq.Ft.): 984 Sq.Ft.
  • Total Square Feet: 4024 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
