House Plan 925 Park Street, Midtown Village House Plan

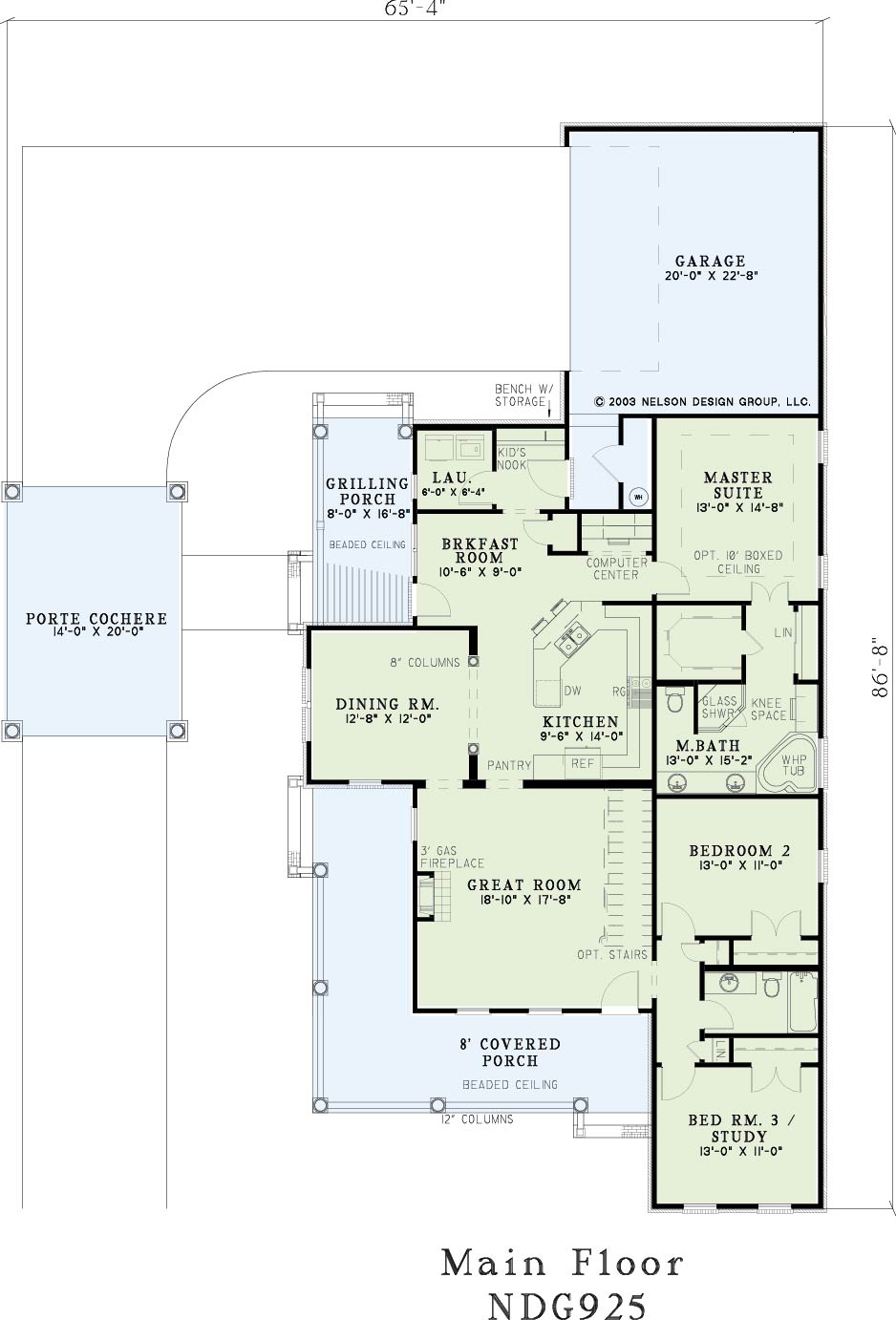

House Plan NDG 925 Main Floor

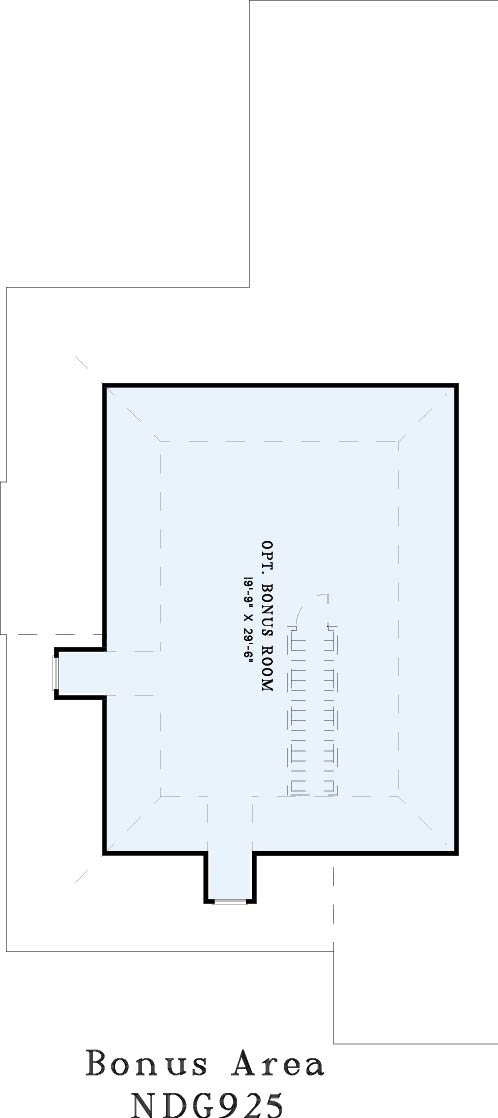

House Plan NDG 925 Bonus Room
>
House Plan NDG 925 Main Floor
House Plan NDG 925 Bonus Room

Floor plans

NDG 925

House Plan 925 Park Street, Midtown Village House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 925
  • Total Living Space:1845Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: Yes
  • Carport Type: Porte Cochere
  • Stories: 1
  • Width Ft.: 65
  • Width In.: 4
  • Depth Ft.: 86
  • Depth In.: 8

Description

The heart of this home by Nelson Design Group is a spacious kitchen and cozy breakfast room and a convenient computer center for easy monitoring. A formal dining room has a column-entry and view of the massive great room with fireplace. The master suite is just steps away and has a private bathroom fit for royalty and opposite two additional bedrooms. An optional bonus room upstairs will make the perfect home theatre.

Specifications

  • Total Living Space:1845Sq.Ft.
  • Main Floor: 1845 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 1191 Sq.Ft.
  • Porch (Sq.Ft.): 554 Sq.Ft.
  • Garage (Sq.Ft.): 808 Sq.Ft.
  • Total Square Feet: 4398 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 29
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
