House Plan 922 Summer Avenue, Midtown Estate House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 922
  • Total Living Space:3970Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: 2
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: Yes
  • Carport Type: Porte Cochere
  • Stories: 2
  • Width Ft.: 80
  • Width In.: 6
  • Depth Ft.: 79
  • Depth In.: 10

Description

This Nelson Design Group home has a timeless porch front and will cater to a very large family. An enormous great room gently adjoins the spacious kitchen and breakfast room and has a window seat and handy breakfast bar. The master suite and an additional bedroom are located on the main level while the upstairs has a trendy home theatre/game room and three additional bedrooms. A porte cochere leads to a rear load garage and a basement foundation is available.

Specifications

  • Total Living Space:3970Sq.Ft.
  • Main Floor: 2404 Sq.Ft

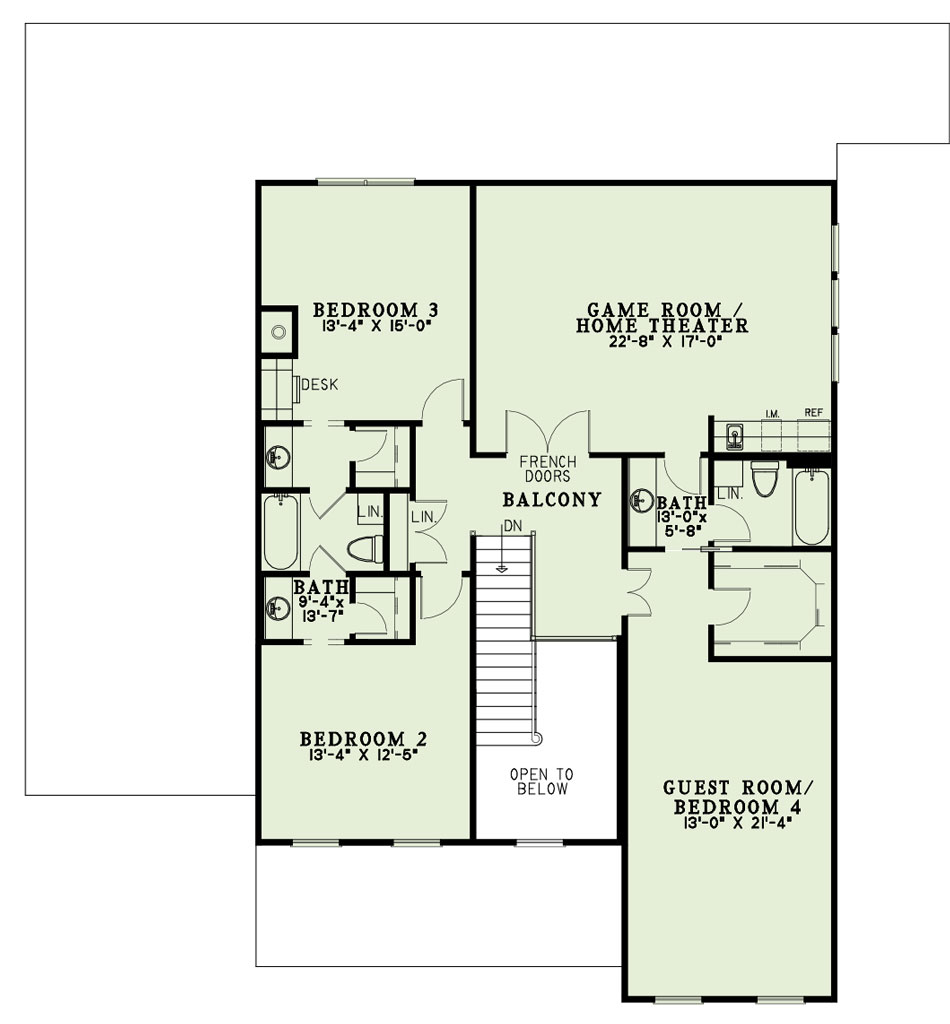

  • Upper Floor (Sq.Ft.): 1566 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 638 Sq.Ft.
  • Garage (Sq.Ft.): 904 Sq.Ft.
  • Total Square Feet: 5512 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 32
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
