House Plan 919 Summer Avenue, Midtown Estate House Plan

House Plan 919 Summer Avenue, Midtown Estate House Plan

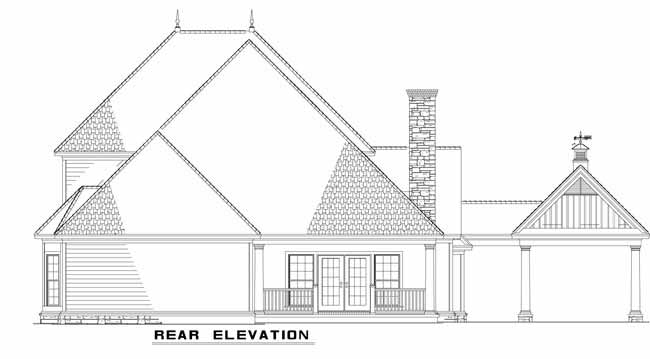

Floor plans

NDG 919

House Plan 919 Summer Avenue, Midtown Estate House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 919
  • Total Living Space:3063Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 4
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: Yes
  • Carport Type: Porte Cochere
  • Stories: 2
  • Width Ft.: 69
  • Width In.: 8
  • Depth Ft.: 84
  • Depth In.: 4

Description

This Nelson Design Group home has a timeless porch front and will cater to a very large family. An enormous great room gently adjoins the spacious kitchen and breakfast room and has a window seat and handy breakfast bar. The master suite and an additional bedroom are located on the main level while the upstairs has a trendy home theatre/game room and three additional bedrooms. A porte cochere leads to a rear load garage and a basement foundation is available.

Specifications

  • Total Living Space:3063Sq.Ft.

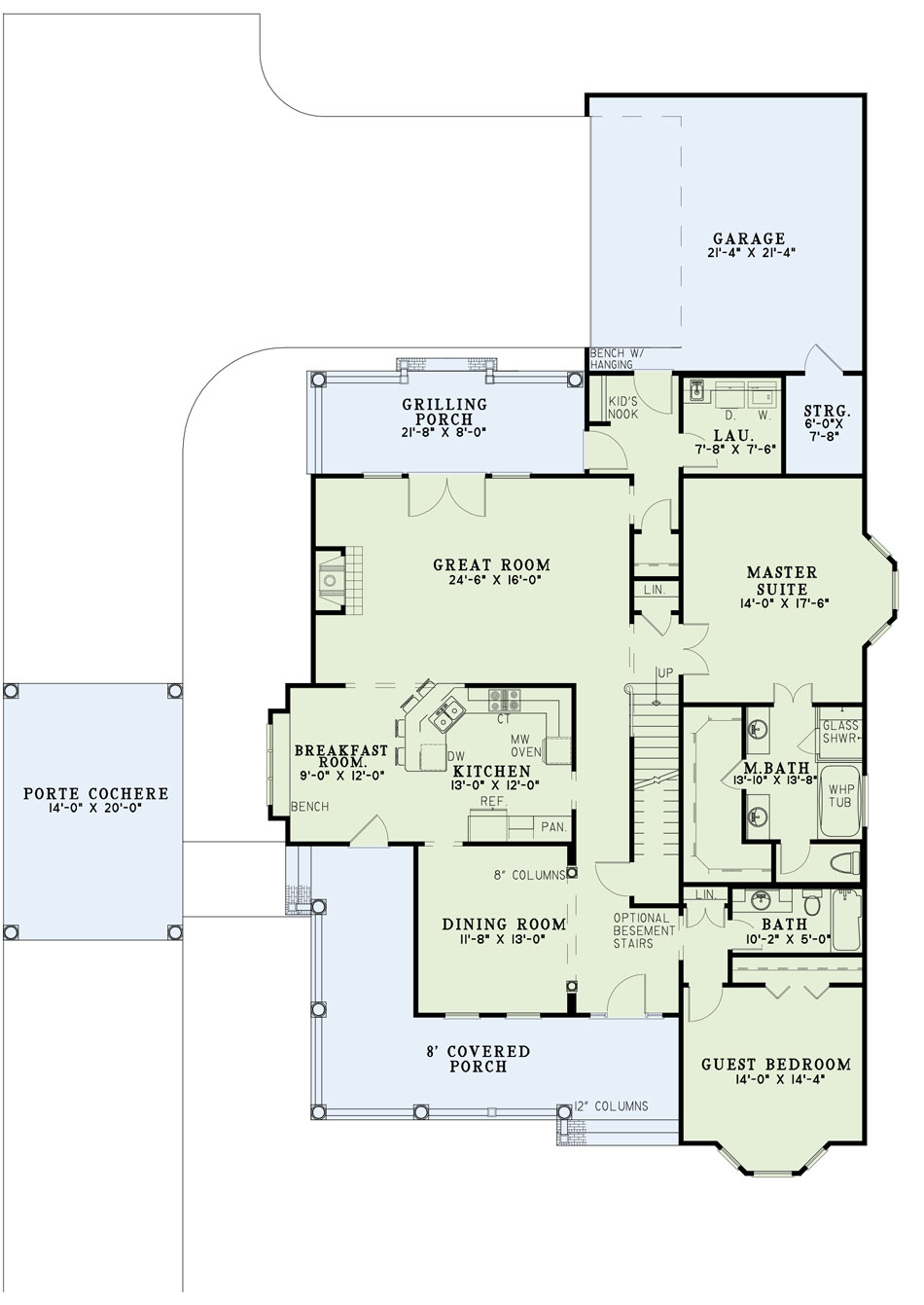

  • Main Floor: 2067 Sq.Ft

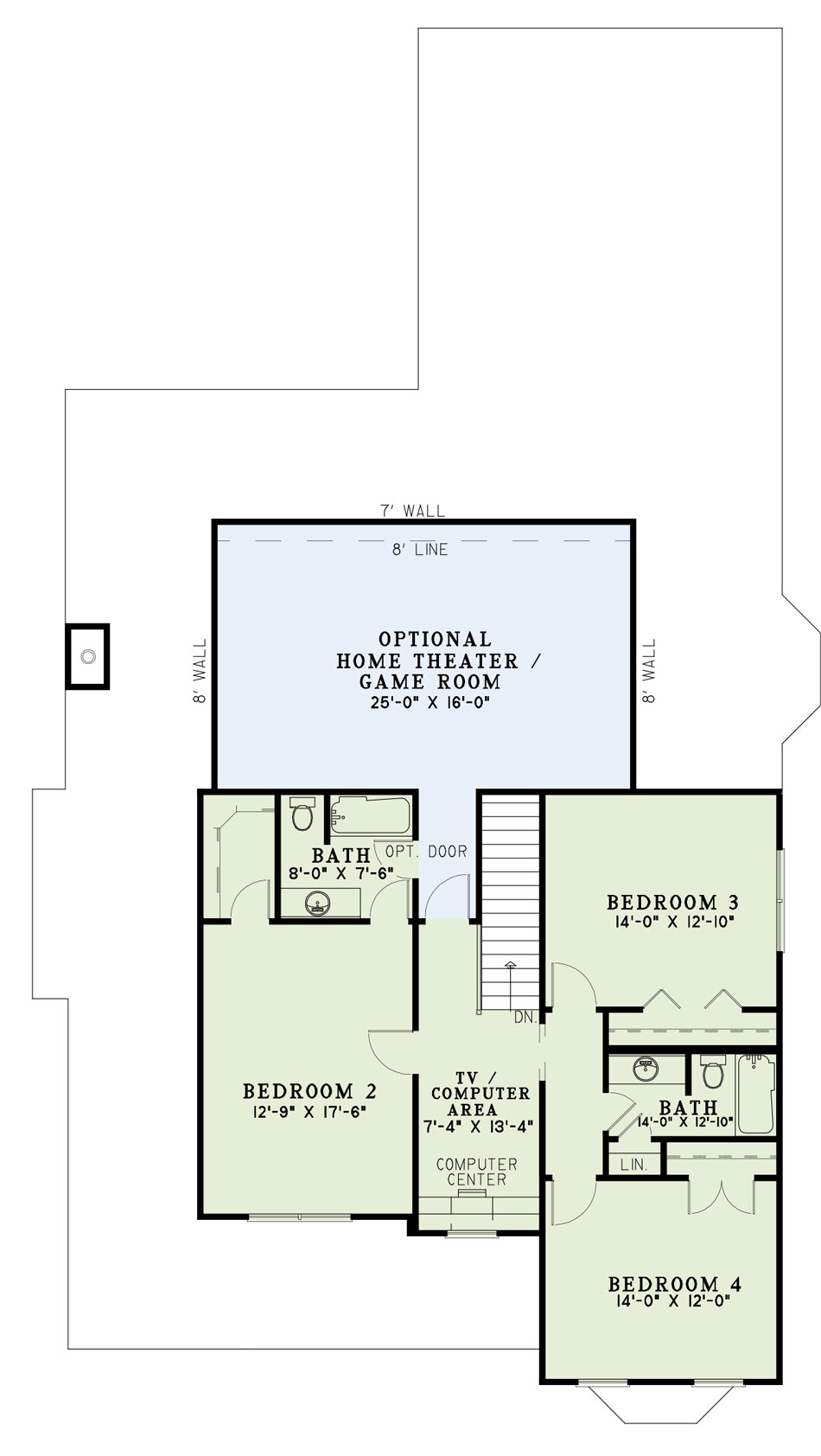

  • Upper Floor (Sq.Ft.): 996 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 446 Sq.Ft.
  • Porch (Sq.Ft.): 564 Sq.Ft.
  • Garage (Sq.Ft.): 807 Sq.Ft.
  • Total Square Feet: 4880 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 33
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments

Plan Package

  • PDF ($1,200.00)
    • CAD ($2,400.00)
    • Five Set ($1,300.00)
    • PDF ($1,200.00)
    • PDF + Unlimited Build ($1,900.00)
  • House Plan Options

    Crawl Space ($0.00)
    • Crawl Space ($0.00)
    • Optional Basement ($299.00)
    • Optional Daylight Basement ($299.00)
    • Slab ($0.00)
  • --None--
    • --None--
    • Five Sets (+$400.00)
    • Four Sets (+$320.00)
    • One Set (+$80.00)
    • Three Sets (+$240.00)
    • Two Sets (+$160.00)
