House Plan 900 Dogwood Avenue, Traditional House Plan
Floor plans
NDG 900
House Plan 900 Dogwood Avenue, Traditional House Plan
Plan Details
- Plan Number: NDG 900
- Total Living Space:2593Sq.Ft.
- Bedrooms: 4
- Full Baths: 2
- Half Baths: 1
- Garage: Yes 2 Bay
- Garage Type: Front Load
- Carport: N/A
- Carport Type: N/A
- Stories: 2
- Width Ft.: 64
- Width In.: 6
- Depth Ft.: 47
- Depth In.: 9
Description

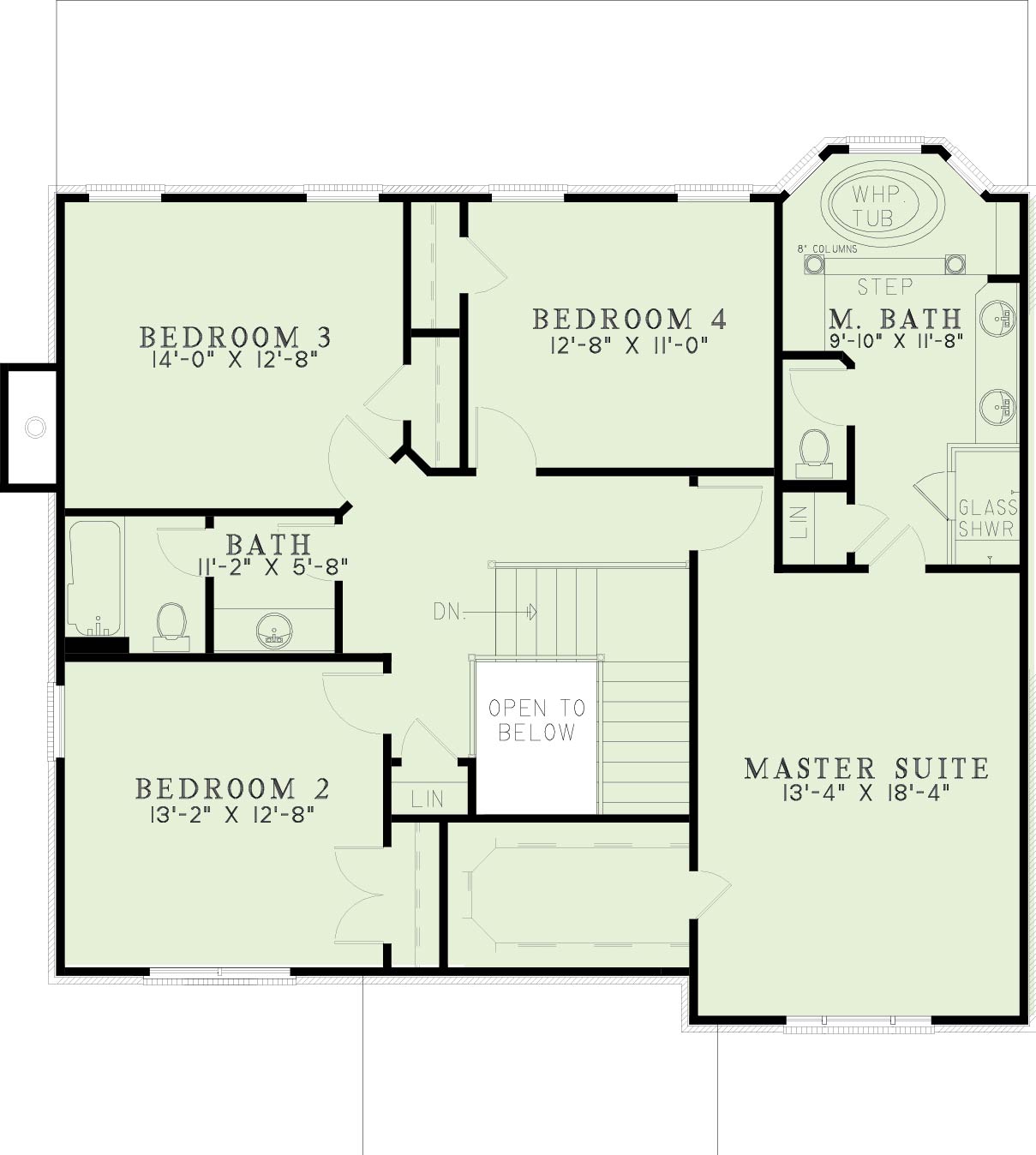

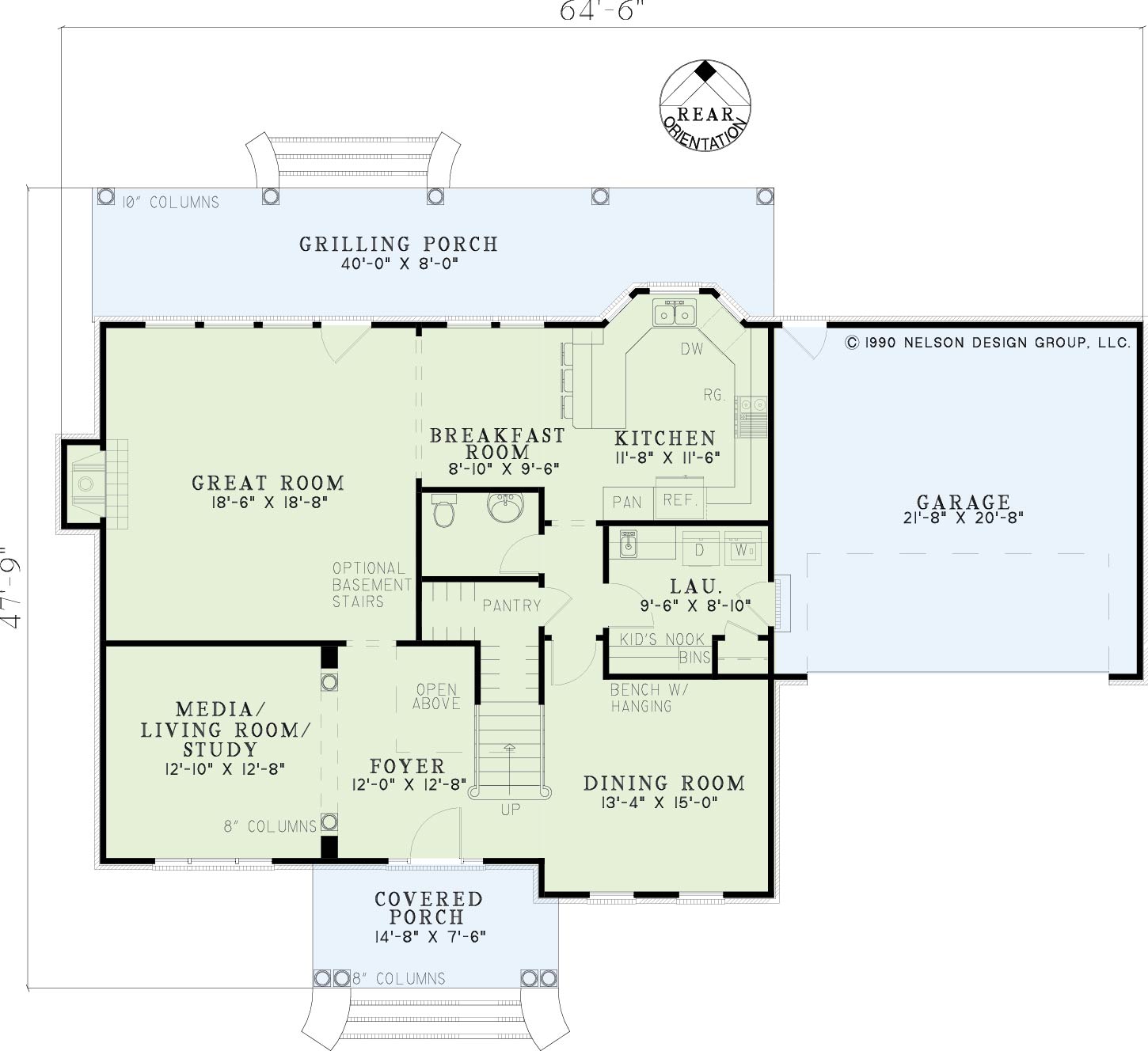

This classic home design is sure to last through the ages with its beautiful brick siding and grand entryway. The first floor is dedicated to living space with a Media Room/Study, a Great Room with a cozy fireplace the flows into the Breakfast Room and Kitchen, and even a Formal Dining Room. Down the hall from the Kitchen is a Half Bath and the spacious Laundry Room with a Kid's Nook that leads to the 2-Car Garage.Upstairs you'll find all 4 Bedrooms including the Master Suite which has its own bathroom and walk-in closet.
Specifications
- Total Living Space:2593Sq.Ft.
- Main Floor: 1340 Sq.Ft
- Upper Floor (Sq.Ft.): 1253 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 413 Sq.Ft.
- Garage (Sq.Ft.): 469 Sq.Ft.
- Total Square Feet: 3475 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 10
- Upper Ceiling Height: 9
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 10:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 36
- Ridge Height (In.): 8
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
- Master Bedroom: Master Bedroom Upper Level
