House Plan 885 Spruce Street, Affordable House Plan

>

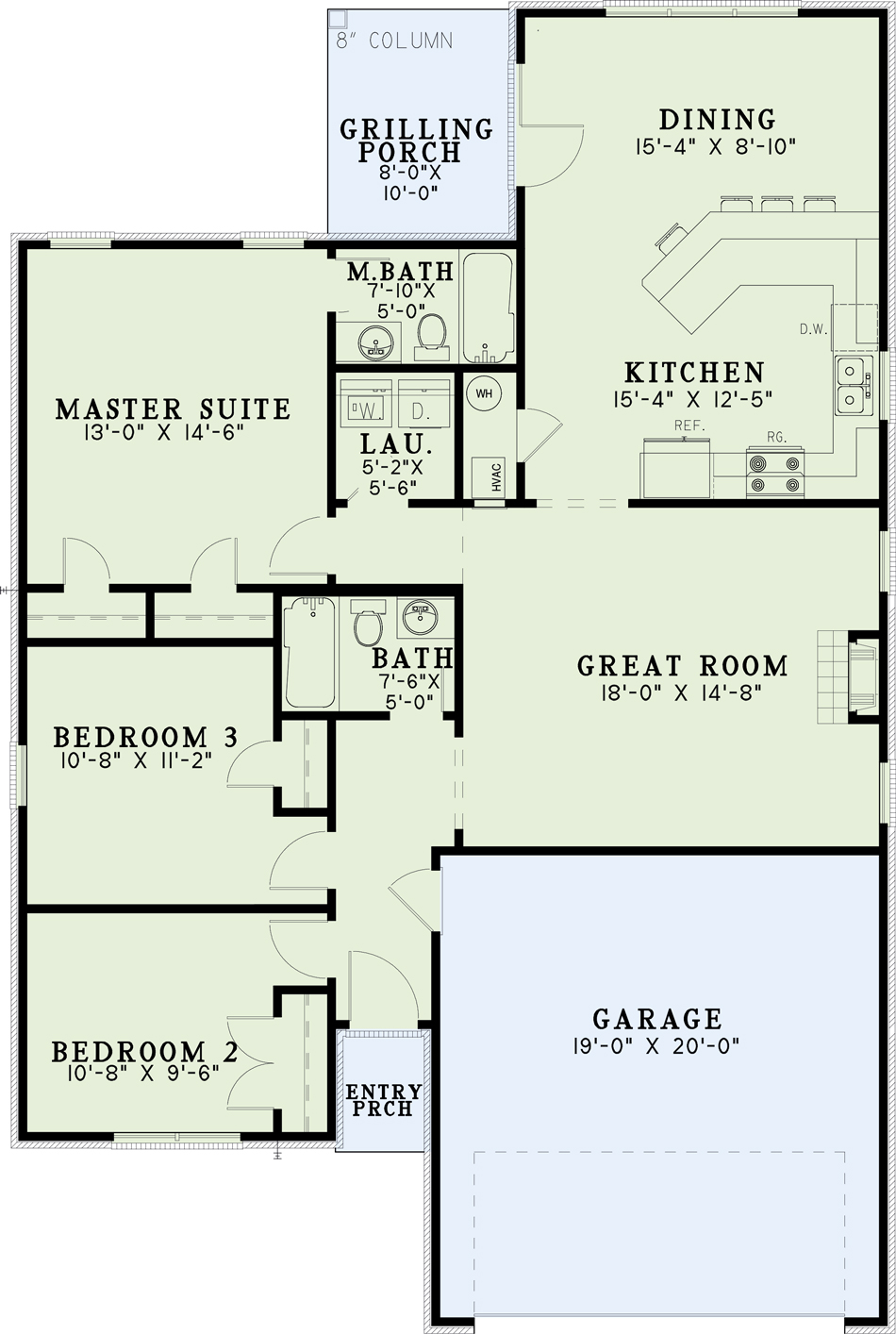

Floor plans

NDG 885

House Plan 885 Spruce Street, Affordable House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 885
  • Total Living Space:1356Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 37
  • Width In.: 6
  • Depth Ft.: 56
  • Depth In.: 10

Description

This simple yet charming house plan works great for a narrow lot. Enter into this home and you'll find bedrooms 2 and 3 to your left. This layout is perfect for the kids so that they can take their things directly to their rooms instead of cluttering up the living room. Head into the great room to enjoy the cozy fireplace or go the kitchen with its attached dining room giving a very spacious feel. The master bedroom has his and her closets and a master bath.

Specifications

  • Total Living Space:1356Sq.Ft.
  • Main Floor: 1356 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 101 Sq.Ft.
  • Garage (Sq.Ft.): 397 Sq.Ft.
  • Total Square Feet: 1854 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 6:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 17
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
