House Plan 845 Pinewood Village, Multi-Family House Plan

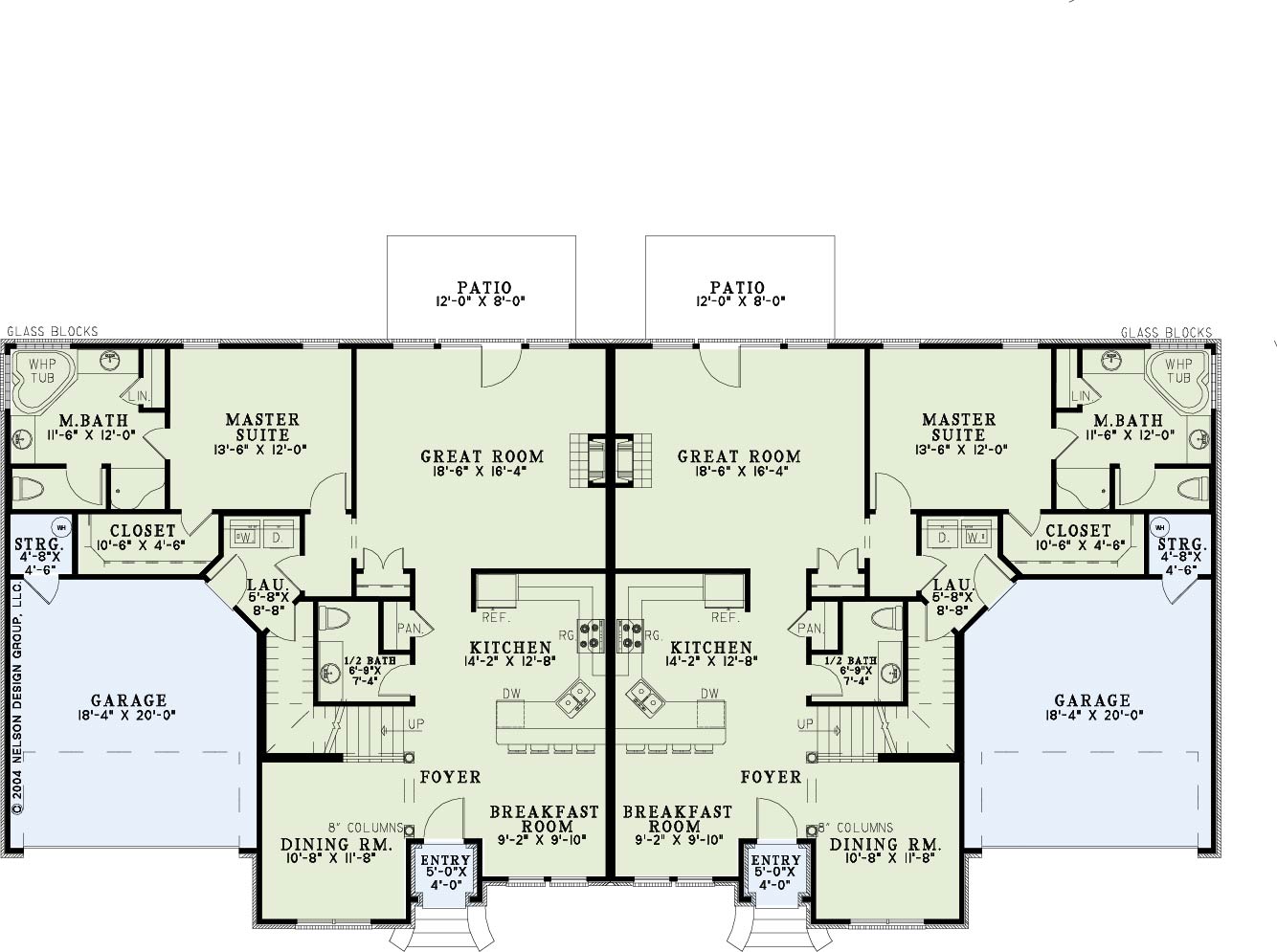

House Plan NDG 845 Main Floor

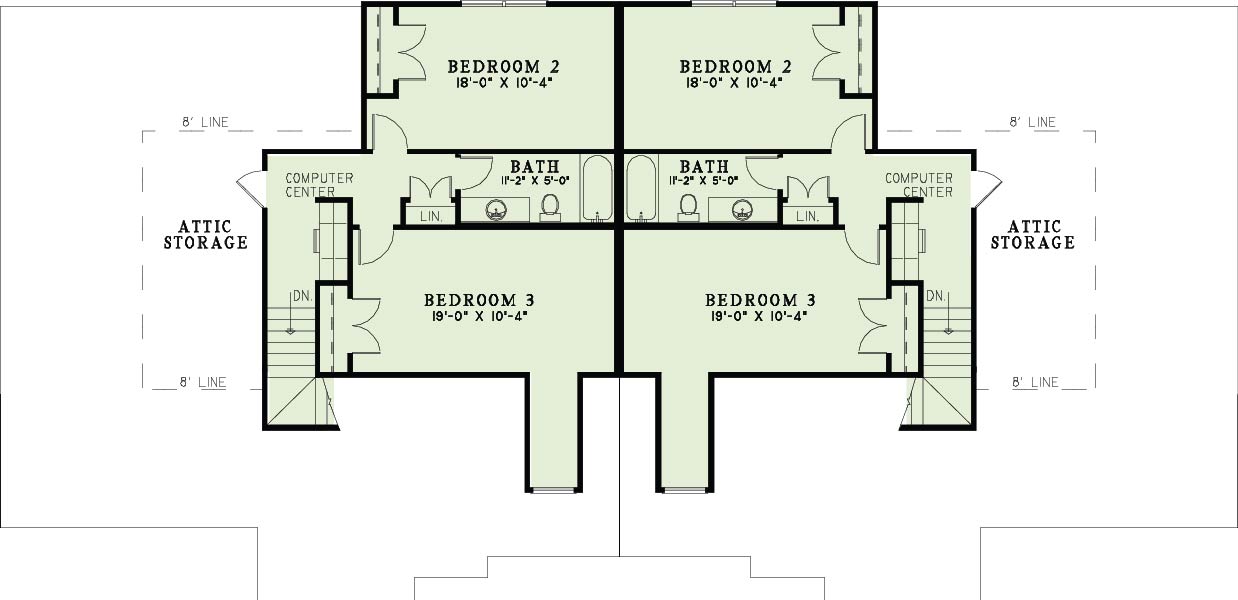

House Plan NDG 845 Upper Floor
House Plan NDG 845 Main Floor
House Plan NDG 845 Upper Floor

Floor plans

NDG 845

House Plan 845 Pinewood Village, Multi-Family House Plan

PDF: $1,850.00

Plan Details

  • Plan Number: NDG 845
  • Total Living Space:2038Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 89
  • Width In.: 8
  • Depth Ft.: 43
  • Depth In.: N/A

Description

This duplex has excellent curb appeal. Plan is so nice, we made it twice. It’s one of our most spectacular multifamily homeplans. It has an open kitchen and large great room area, and a sizeble master suite with walk in closet. There are also two spacious bedrooms on the second floor.

Specifications

  • Total Living Space:2038Sq.Ft.
  • Main Floor: 1397 Sq.Ft
  • Upper Floor (Sq.Ft.): 641 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 22 Sq.Ft.
  • Garage (Sq.Ft.): 371 Sq.Ft.
  • Total Square Feet: 2431 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
