House Plan 823 Mulberry Lane, Olde Town House Plan

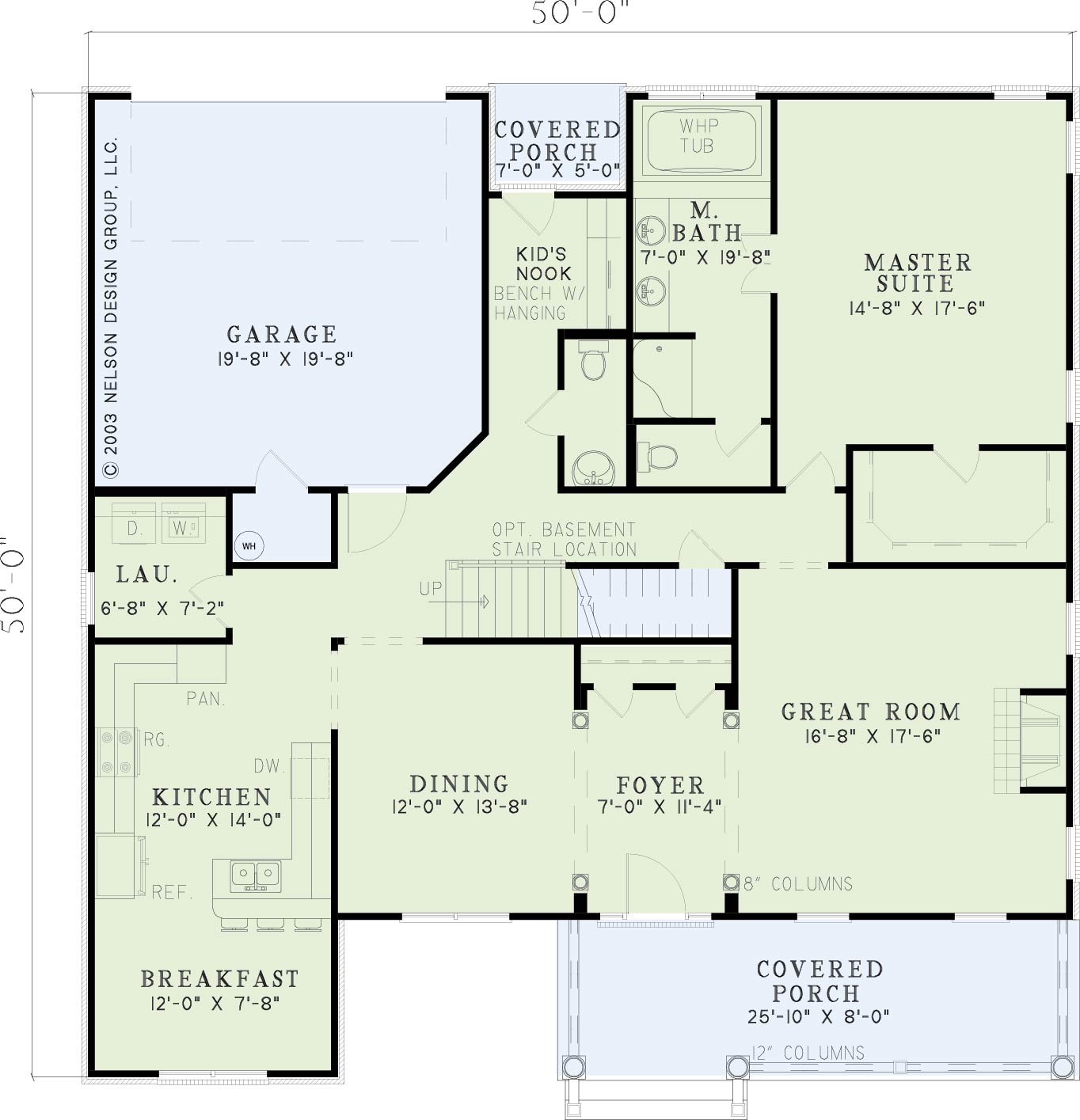

House Plan NDG 823 Main Floor

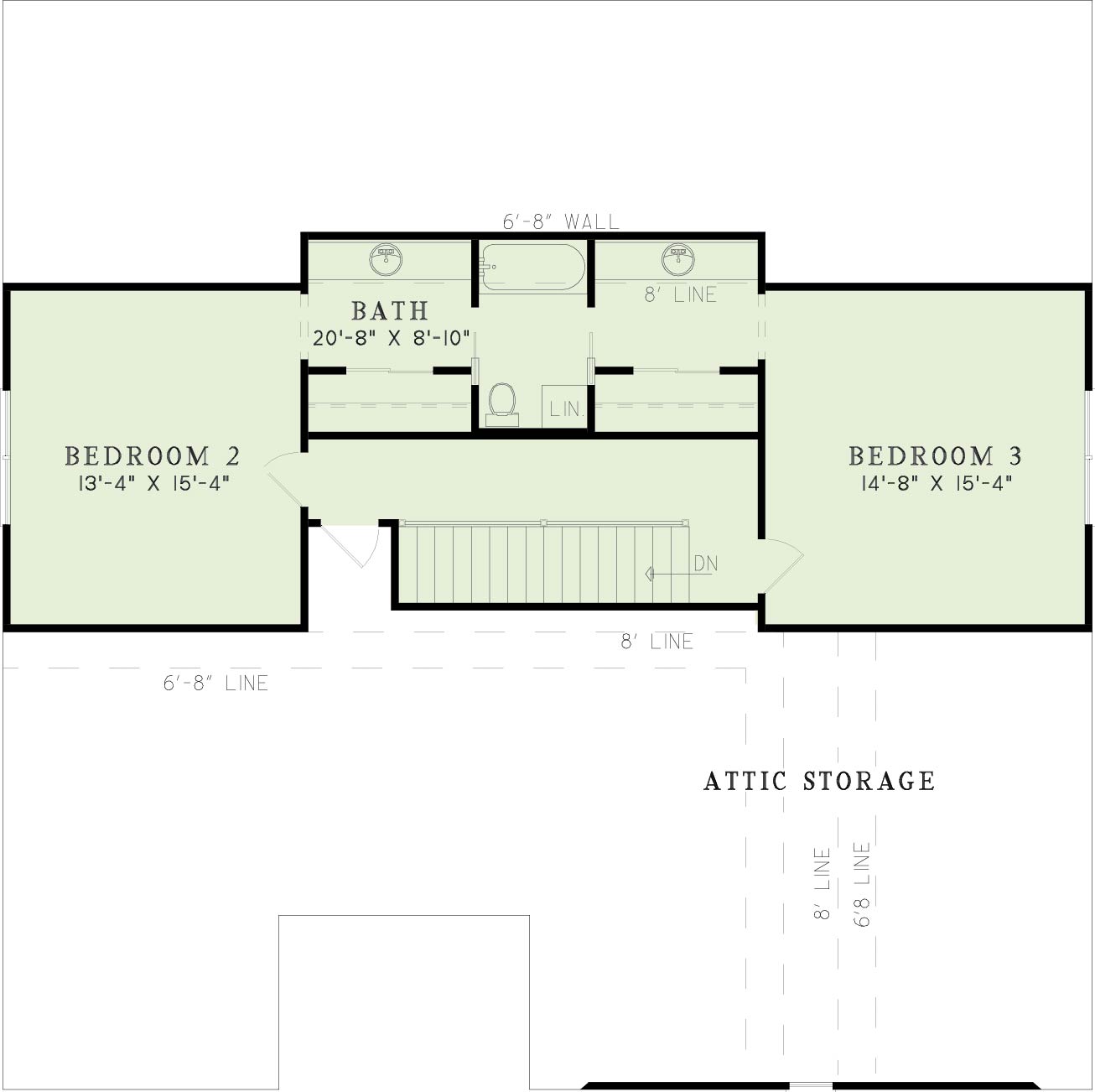

House Plan NDG 823 Upper Floor
House Plan NDG 823 Main Floor
House Plan NDG 823 Upper Floor

Floor plans

NDG 823

House Plan 823 Mulberry Lane, Olde Town House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 823
  • Total Living Space:2533Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 50
  • Width In.: N/A
  • Depth Ft.: 50
  • Depth In.: N/A

Description

Take a few steps onto the covered front porch of this lovely Nelson Design Group home and you’ll truly feel at home. An open foyer will welcome your guests into the Great Room, complete with fireplace. Comfort and relaxation are a must in the spacious Master Suite and Bath, where the whirlpool tub will call your name after a long day. A breakfast room adjoins the ergonomically planned kitchen-designed with the chef in mind. Two bedrooms and a large bathroom on the upper lever of this home provide plenty of space should company drop in for the night.

Specifications

  • Total Living Space:2533Sq.Ft.
  • Main Floor: 1768 Sq.Ft
  • Upper Floor (Sq.Ft.): 765 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 242 Sq.Ft.
  • Garage (Sq.Ft.): 398 Sq.Ft.
  • Total Square Feet: 3173 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 9:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
