House Plan 819 Mulberry Lane, Olde Town House Plan

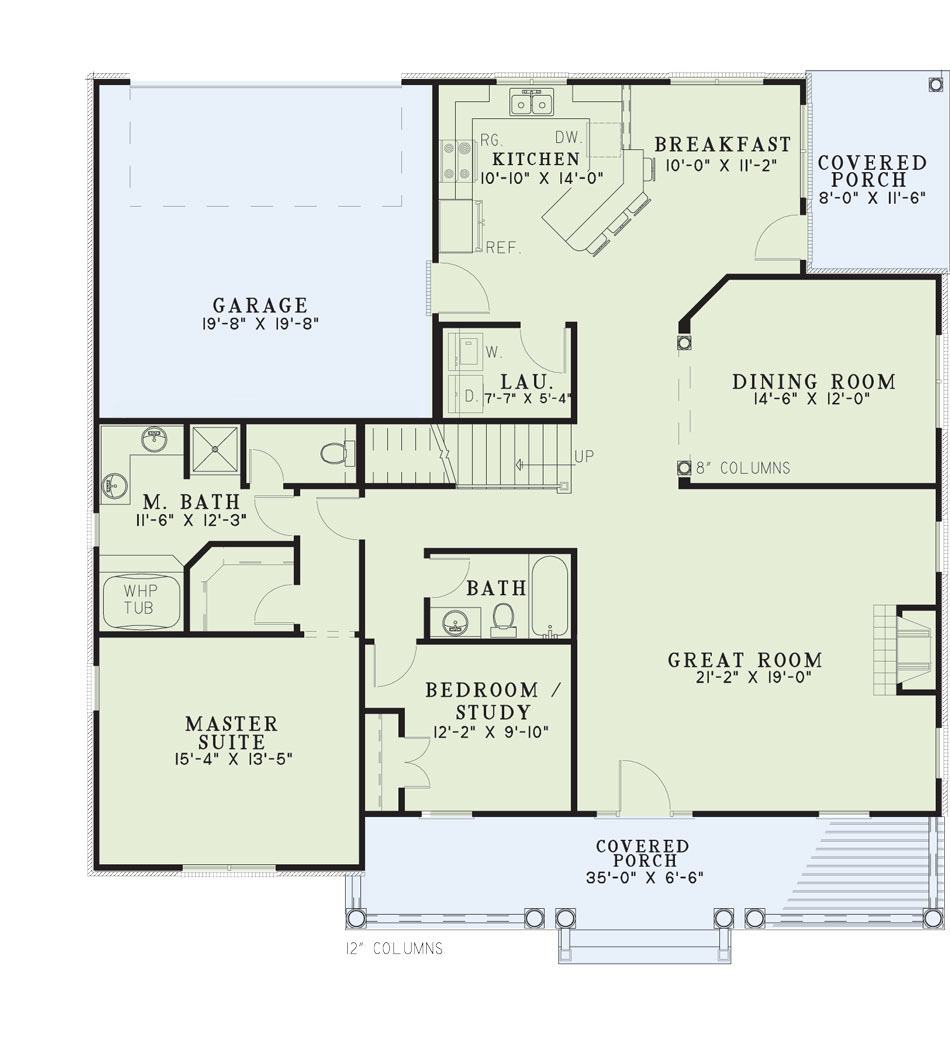

House Plan NDG 819 Main Floor

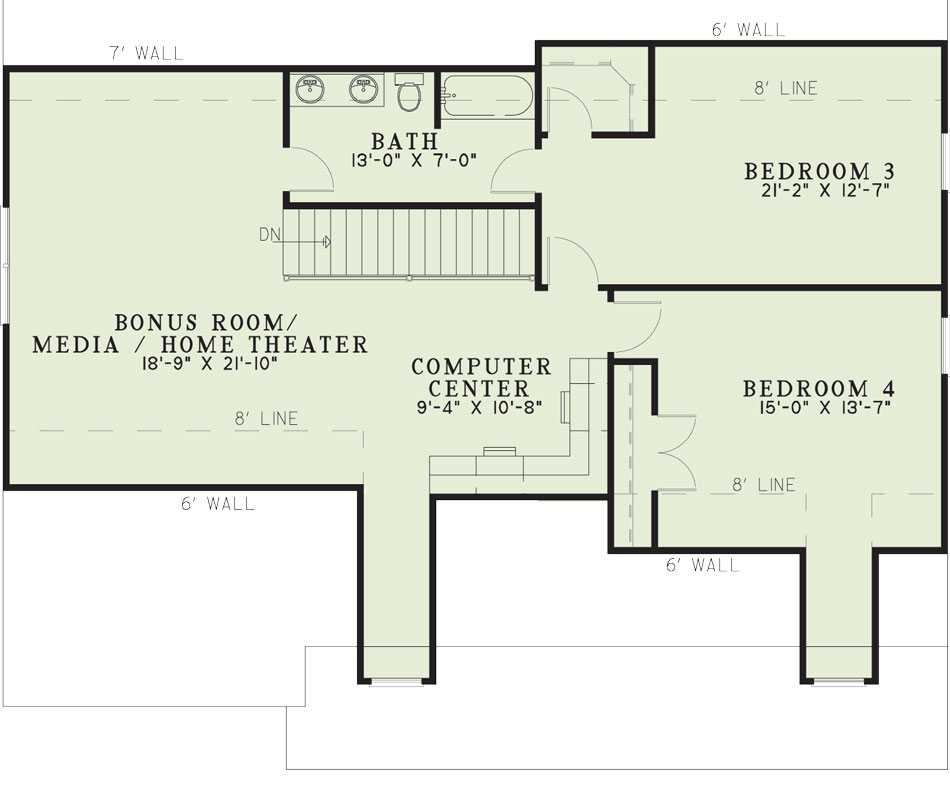

House Plan NDG 819 Upper Floor
House Plan NDG 819 Main Floor
House Plan NDG 819 Upper Floor

Floor plans

NDG 819

House Plan 819 Mulberry Lane, Olde Town House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 819
  • Total Living Space:3002Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 50
  • Width In.: N/A
  • Depth Ft.: 50
  • Depth In.: N/A

Description

Great street appeal created by the use of traditional dormers and double columns on the quaint covered-porch which leads directly into a spacious with centered fireplace. A large dining room can easily open into the kitchen with some minor adjustments and give the ultimate open floor plan for wonderful entertainment. The main floor has two bedrooms; a great master bathroom layout with double vanity, shower and whirlpool or soaking tub; and the upper level has two bedrooms large computer center and a home theater, bonus room or game room. Many options are available for this spacious upper floor.

Specifications

  • Total Living Space:3002Sq.Ft.
  • Main Floor: 1733 Sq.Ft
  • Upper Floor (Sq.Ft.): 1269 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 316 Sq.Ft.
  • Garage (Sq.Ft.): 400 Sq.Ft.
  • Total Square Feet: 3718 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
