House Plan 818 Anna Circle, Traditional House Plan

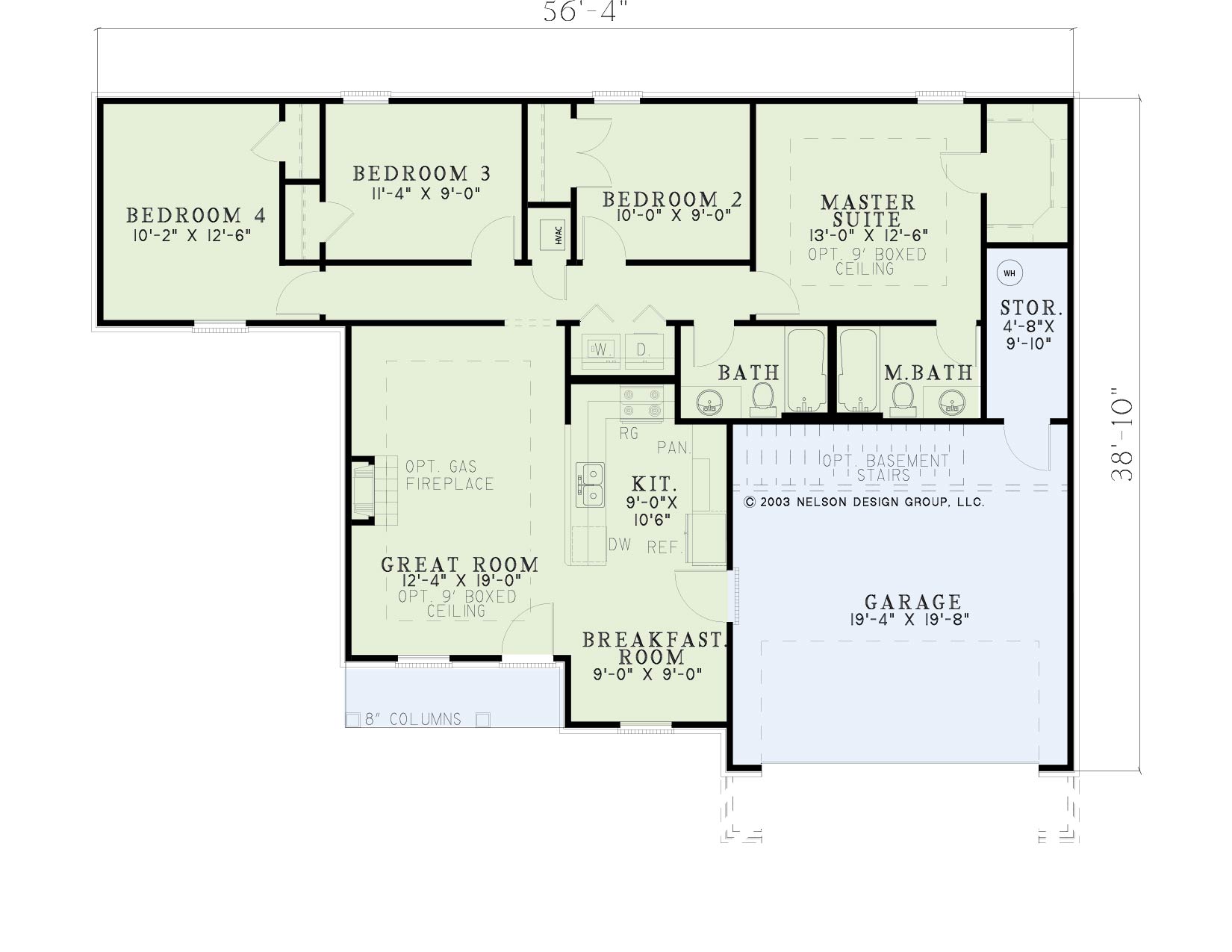

House Plan NDG 818 Main Floor
House Plan NDG 818 Main Floor

Floor plans

NDG 818

House Plan 818 Anna Circle, Traditional House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 818
  • Total Living Space:1271Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 56
  • Width In.: 4
  • Depth Ft.: 38
  • Depth In.: 10

Description

Appearing much larger than it actually is ? this Nelson Design Group home plan includes everything a single parent or small family might need. An optional basement is available for this design giving you a vast array of options. The quaint front porch has 8-inch columns adding a nice touch to this conservative design. This step-saver kitchen and sunny breakfast room are located at the front of the home while all bedrooms are placed at the rear of the home for added privacy. For a touch of elegance, nine-foot boxed ceilings are used in the great room and master suite bedroom giving an illusion of a much larger space. The master suited has a large walk-in closet and private bathroom while the additional two bedrooms share the other full bathroom. Conveniently located in the hallway is the laundry area with storage above and bi-fold doors for easy access. A two-car garage with storage completes this design.

Specifications

  • Total Living Space:1271Sq.Ft.
  • Main Floor: 1271 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 48 Sq.Ft.
  • Garage (Sq.Ft.): 446 Sq.Ft.
  • Total Square Feet: 1765 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 7:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 19
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan
