House Plan 815 Janice, Affordable House Plan

>

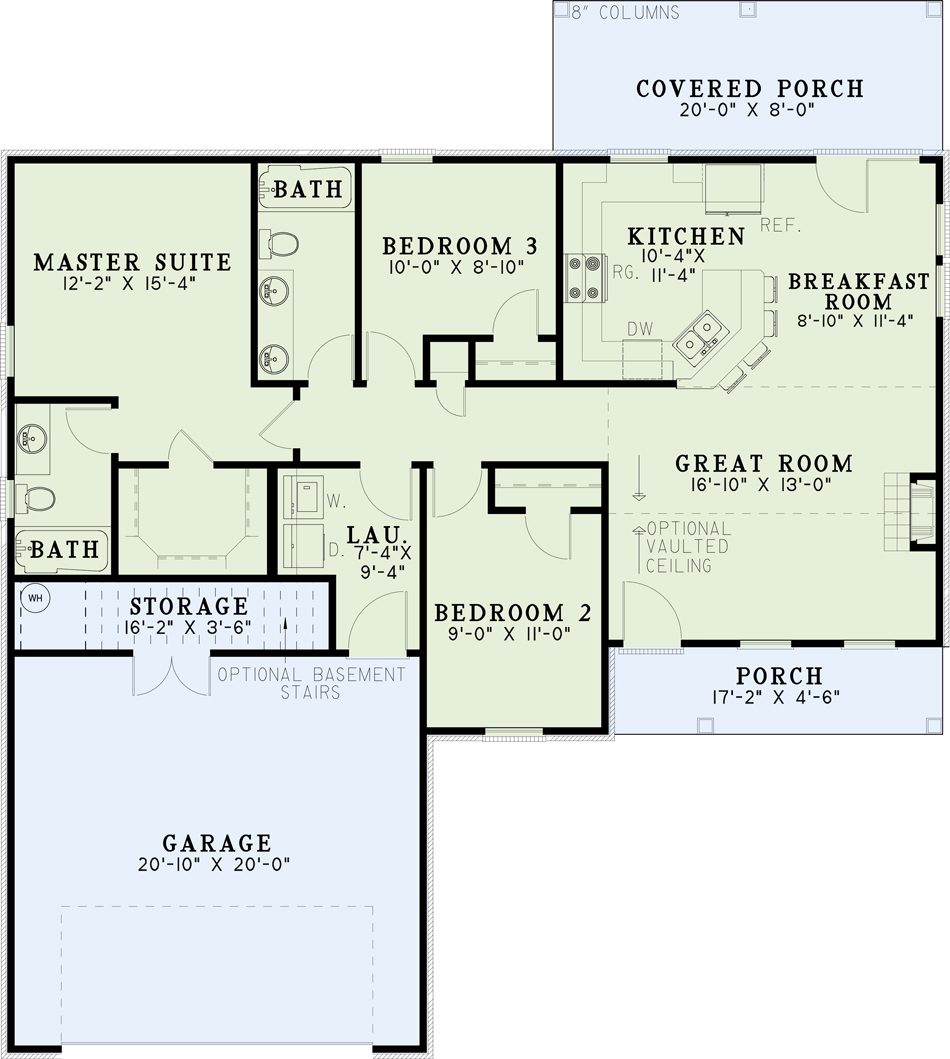

Floor plans

NDG 815

House Plan 815 Janice, Affordable House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 815
  • Total Living Space:1193Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 48
  • Width In.: N/A
  • Depth Ft.: 54
  • Depth In.: N/A

Description

A vaulted ceiling and open floor plan give this Nelson Design Group home an air of grandeur while a cozy fireplace provides an intimate gathering space. The kitchen and breakfast rooms share a fabulous angled bar with seating and a view of the spacious great room. For privacy, the master suite is located at the rear of the home and has a large walk-in closet. Extra storage in the garage will help keep a clutter-free environment. A rear porch will be a favorite place to unwind after a long day.

Specifications

  • Total Living Space:1193Sq.Ft.
  • Main Floor: 1193 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 237 Sq.Ft.
  • Garage (Sq.Ft.): 505 Sq.Ft.
  • Total Square Feet: 1935 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 7:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 17
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
