House Plan 797 Cambridge Court, Multi-Family House Plan

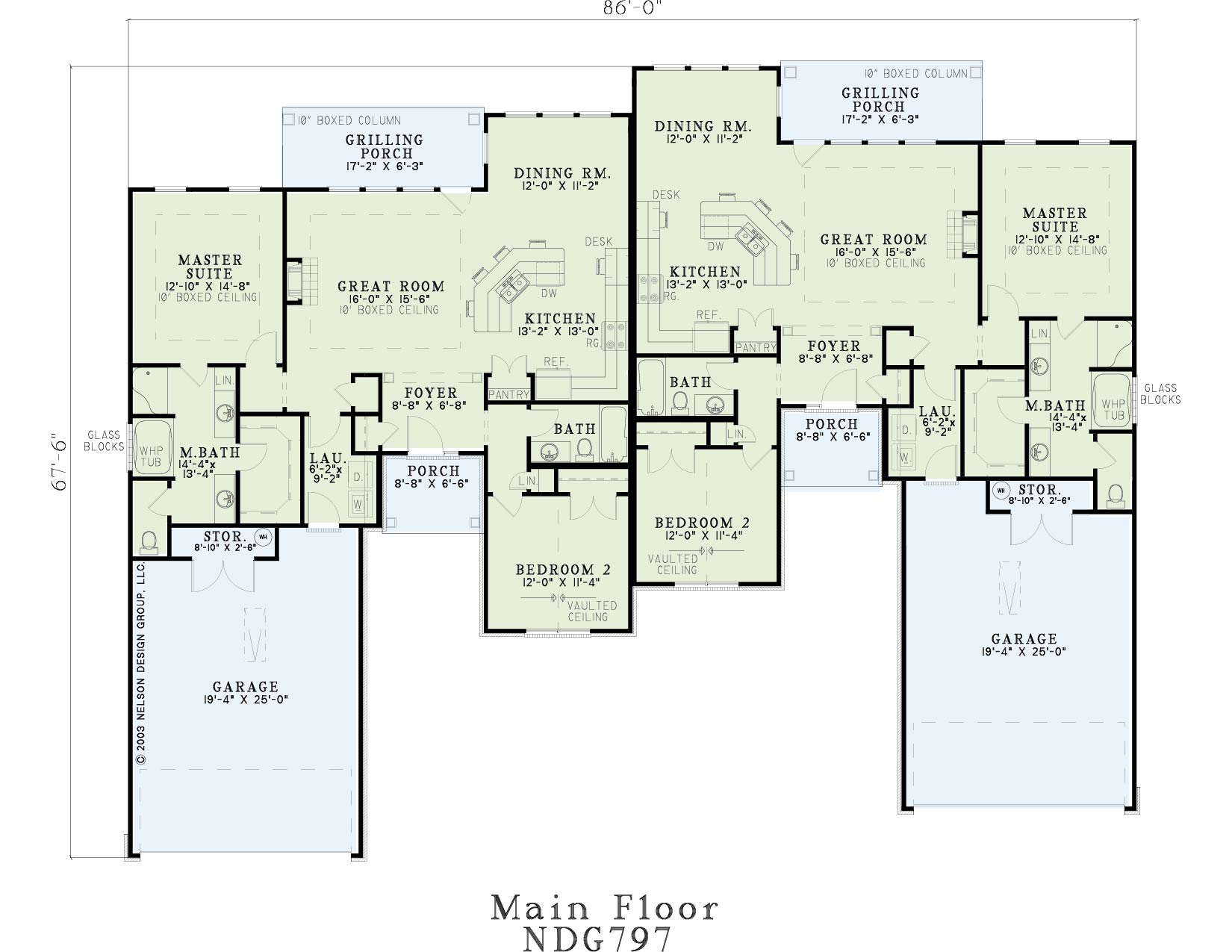

House Plan NDG 797 Main Floor
House Plan NDG 797 Main Floor

Floor plans

NDG 797

House Plan 797 Cambridge Court, Multi-Family House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 797
  • Total Living Space:1398Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 86
  • Width In.: N/A
  • Depth Ft.: 67
  • Depth In.: 6

Description

You’re sure to love this charming duplex design from Nelson Design Group. Entry into each home leads into the foyer flanked by columns. The generous great room boasts a 10-foot boxed ceiling, fireplace, and access to the rear-grilling porch. A convenient dining room complements the well-planned kitchen, which features bar seating and lots of amenities. In addition to the master suite with boxed ceiling and an elegant master bath, each home also includes a second bedroom with a full bath close by, perfect for guests.

Specifications

  • Total Living Space:1398Sq.Ft.
  • Main Floor: 1398 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 162 Sq.Ft.
  • Garage (Sq.Ft.): 553 Sq.Ft.
  • Total Square Feet: 2113 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 22
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
