House Plan 796 Pinewood Village, Multi-Family House Plan

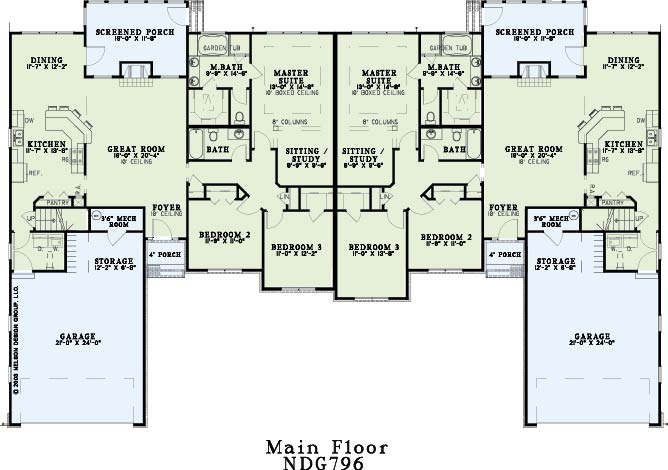

House Plan NDG 796 Main Floor

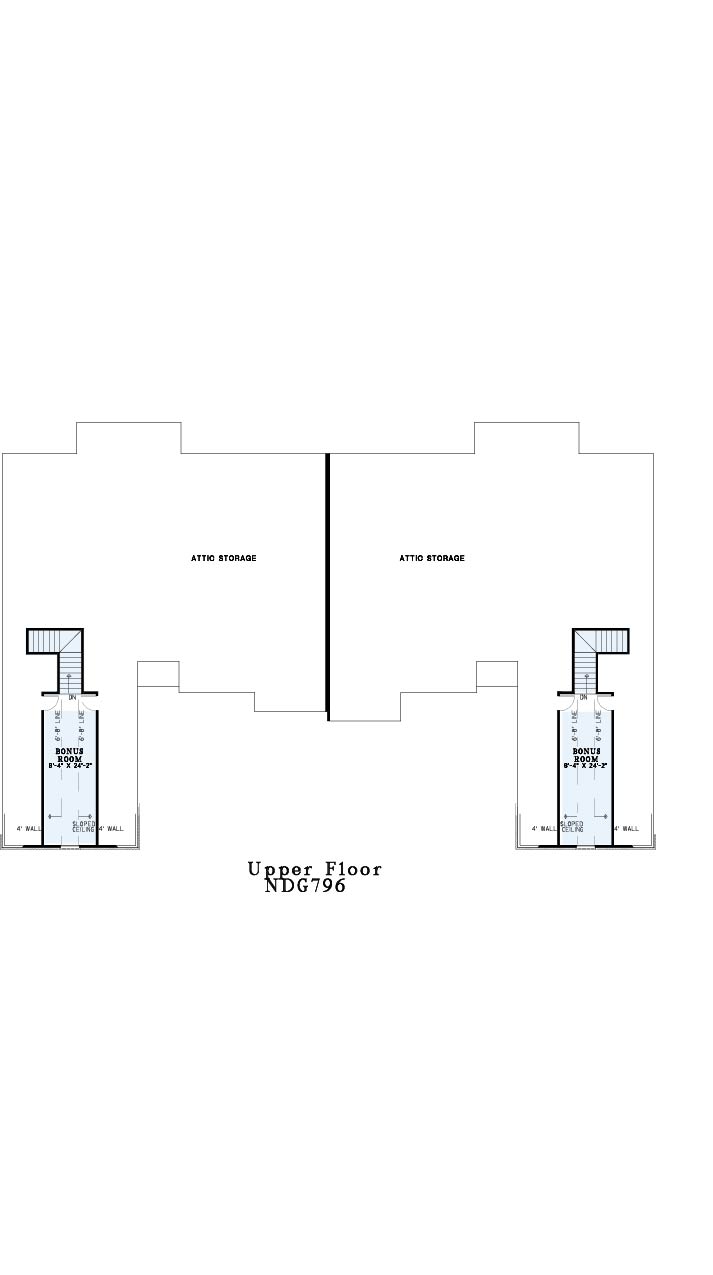

House Plan NDG 796 Bonus Room
House Plan NDG 796 Main Floor
House Plan NDG 796 Bonus Room

Floor plans

NDG 796

House Plan 796 Pinewood Village, Multi-Family House Plan

PDF: $1,850.00

Plan Details

  • Plan Number: NDG 796
  • Total Living Space:1780Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 104
  • Width In.: N/A
  • Depth Ft.: 67
  • Depth In.: 10

Description

Specifications

  • Total Living Space:1780Sq.Ft.
  • Main Floor: 1780 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 249 Sq.Ft.
  • Porch (Sq.Ft.): 209 Sq.Ft.
  • Garage (Sq.Ft.): 642 Sq.Ft.
  • Total Square Feet: 2880 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
