House Plan 764 Magnolia Drive, Traditional House Plan

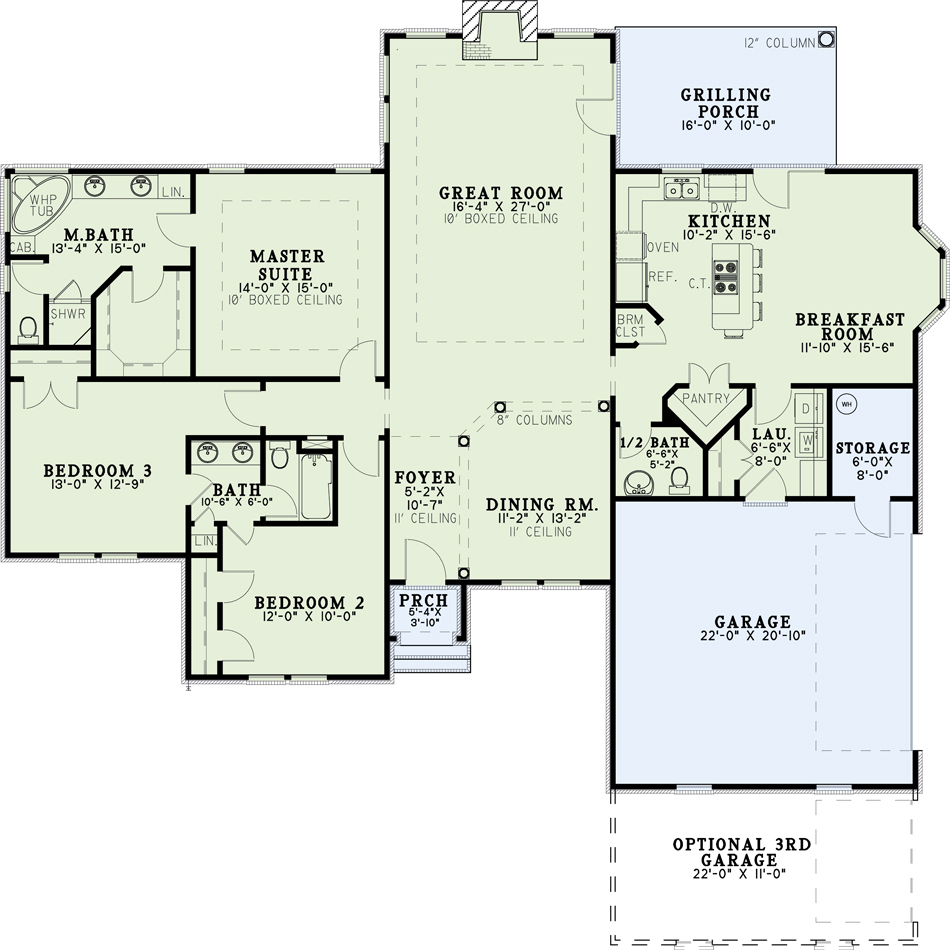

Floor plans

NDG 764

House Plan 764 Magnolia Drive, Traditional House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 764
  • Total Living Space:2134Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 69
  • Width In.: 4
  • Depth Ft.: 58
  • Depth In.: 2

Description

Nelson Design Group has created this home plan which includes elegant features such as columns, boxed ceilings and a luxurious master bathroom, keeping your budget in mind. Beauty doesn’t have to cost a fortune. Elements such as these columns that line the formal dining room and foyer will give a grand appearance upon entering this lovely home. A massive great room has access to the grilling porch and a vast amount of wall space, lending many options for furniture arrangement. The kitchen is fit for a gourmet and has a large preparation island with seating, a large pantry and a nearby half-bath. The opposite side of the home includes the master suite with luxurious bathroom complete with an oval whirlpool tub and separate shower. The two additional bedrooms both adjoin a large bathroom with separate shower area, helping maintain peace in the family. This plan offers either a two or three car-garage.

Specifications

  • Total Living Space:2134Sq.Ft.
  • Main Floor: 2134 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 185 Sq.Ft.
  • Garage (Sq.Ft.): 532 Sq.Ft.
  • Total Square Feet: 2851 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan
