House Plan 754 Elm Street, Affordable House Plan
Plan Details
- Plan Number: NDG 754
- Total Living Space:1100Sq.Ft.
- Bedrooms: 3
- Full Baths: 2
- Half Baths: N/A
- Garage: No
- Garage Type: N/A
- Carport: Yes
- Carport Type: Rear Load
- Stories: 1
- Width Ft.: 44
- Width In.: N/A
- Depth Ft.: 50
- Depth In.: N/A
Description

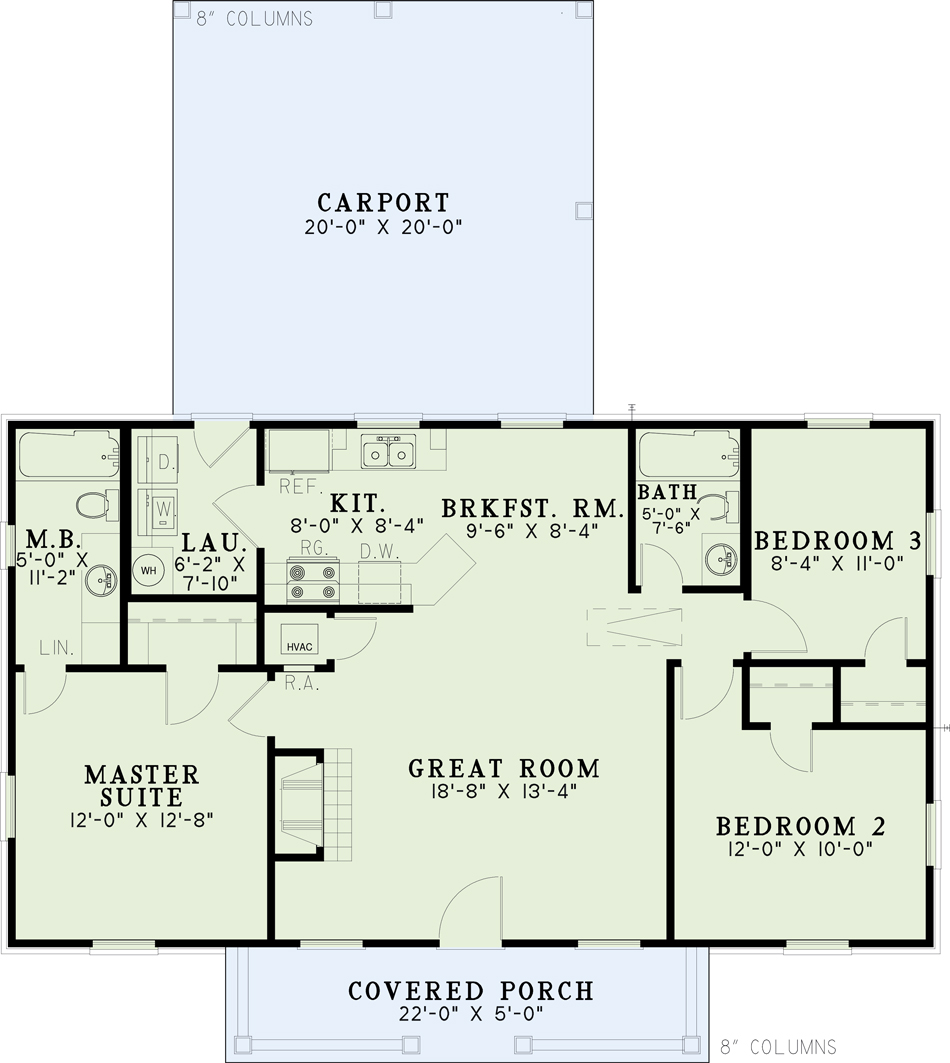

Greet the neighbors from the quaint covered porch of this economical Nelson Design Group home. Enjoy family movie night in the great room with fireplace. Preparing and serving meals will be easy with this kitchen and adjoining breakfast room. This split bedroom design allows privacy for all family members with the master suite on one side of the home and two additional bedrooms on the other side.
Specifications
- Total Living Space:1100Sq.Ft.
- Main Floor: 1100 Sq.Ft
- Upper Floor (Sq.Ft.): N/A
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 110 Sq.Ft.
- Garage (Sq.Ft.): 400 Sq.Ft.
- Total Square Feet: 1610 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 8
- Upper Ceiling Height: N/A
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 7:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 17
- Ridge Height (In.): 0
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
