House Plan 729 Plymouth Cove, Traditional House Plan

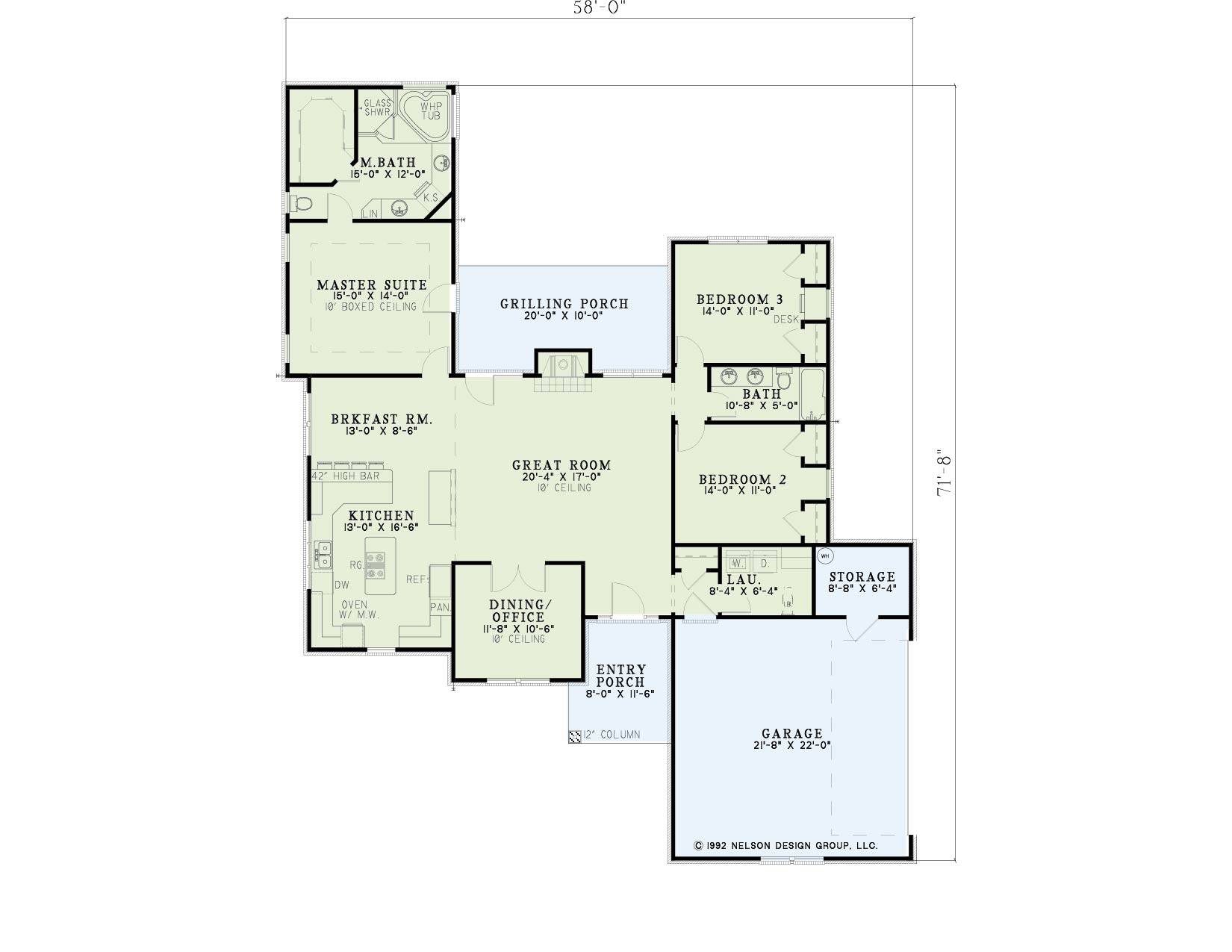

Floor plans
NDG 729
House Plan 729 Plymouth Cove, Traditional House Plan
Plan Details
- Plan Number: NDG 729
- Total Living Space:1797Sq.Ft.
- Bedrooms: 3
- Full Baths: 2
- Half Baths: N/A
- Garage: Yes 2 Bay
- Garage Type: Side Load
- Carport: N/A
- Carport Type: N/A
- Stories: 1
- Width Ft.: 58
- Width In.: N/A
- Depth Ft.: 71
- Depth In.: 8
Description
This Nelson Design Group home was designed with family in mind. The great room with fireplace will provide the perfect setting for movie night. Enjoy meals in your breakfast or dining room, or quick snacks at the bar in the kitchen. Retiring to this master suite every night will truly be a luxury in itself. The generous bedroom is enhanced by a ten-foot boxed ceiling while the bathroom includes a glass shower and whirlpool bath. Two additional bedrooms with a full bath between round out this lovely design.
Specifications
- Total Living Space:1797Sq.Ft.
- Main Floor: 1797 Sq.Ft
- Upper Floor (Sq.Ft.): N/A
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 300 Sq.Ft.
- Garage (Sq.Ft.): 561 Sq.Ft.
- Total Square Feet: 2658 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 8
- Upper Ceiling Height: N/A
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 10:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 23
- Ridge Height (In.): 6
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
