House Plan 728 Red Oak Court, Multi-Family House Plan

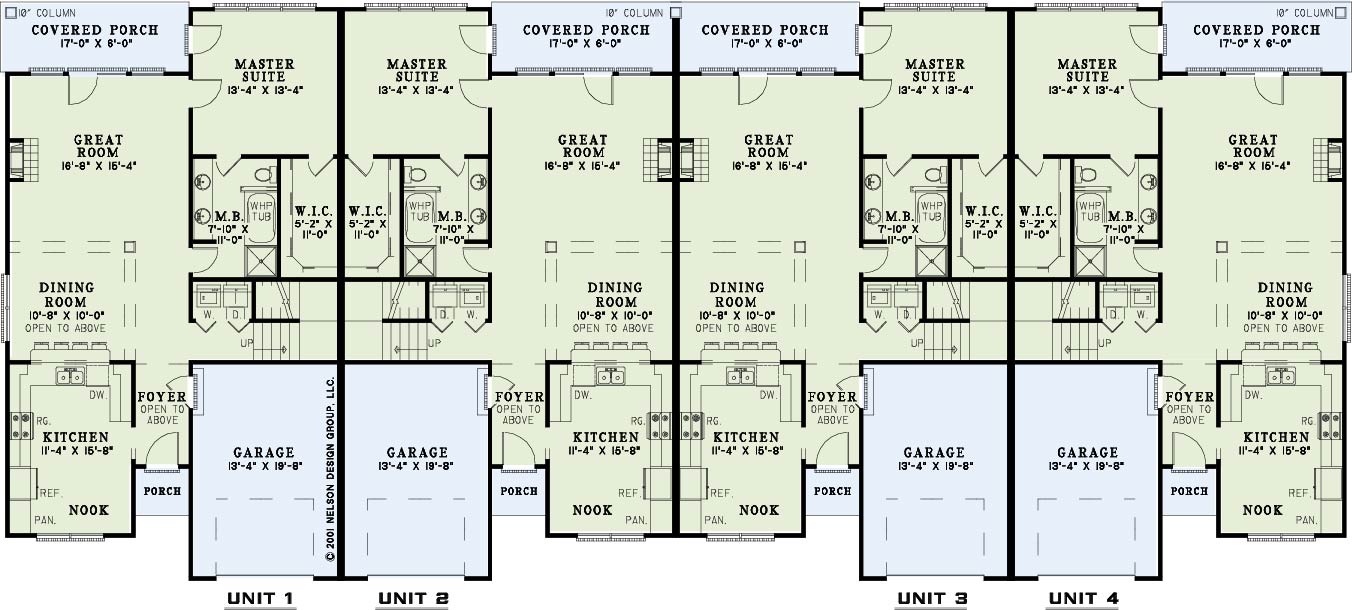

House Plan NDG 728 Main Floor

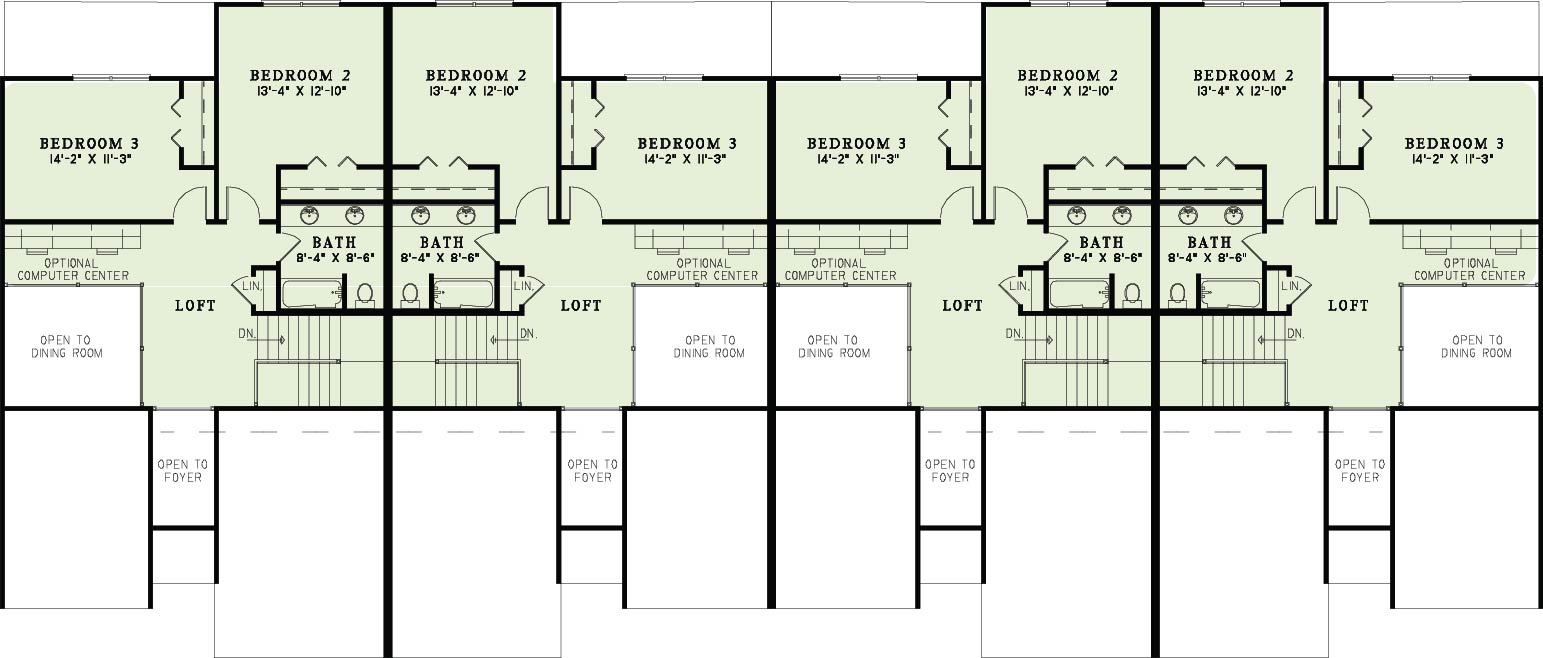

House Plan NDG 728 Upper Floor
House Plan NDG 728 Main Floor
House Plan NDG 728 Upper Floor

Floor plans

NDG 728

House Plan 728 Red Oak Court, Multi-Family House Plan

PDF: $2,250.00

Plan Details

  • Plan Number: NDG 728
  • Total Living Space:1900Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 124
  • Width In.: N/A
  • Depth Ft.: 53
  • Depth In.: N/A

Description

This 4-plex house plan is great at blending into the single family home around it! Each unit is complete with a spacious Kitchen and eat at bar that is open to the Dining Room and Great Room creating a perfect open floor plan. Also located on the main floor is the Master Suite with a walk-in closet and connected bathroom. Upstairs are Bedrooms 2 and 3 as well as a bathroom and a convenient computer center.

Specifications

  • Total Living Space:1900Sq.Ft.
  • Main Floor: 1164 Sq.Ft
  • Upper Floor (Sq.Ft.): 736 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 102 Sq.Ft.
  • Garage (Sq.Ft.): 277 Sq.Ft.
  • Total Square Feet: 2279 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
