House Plan 717 Birchwood Lane, Traditional House Plan

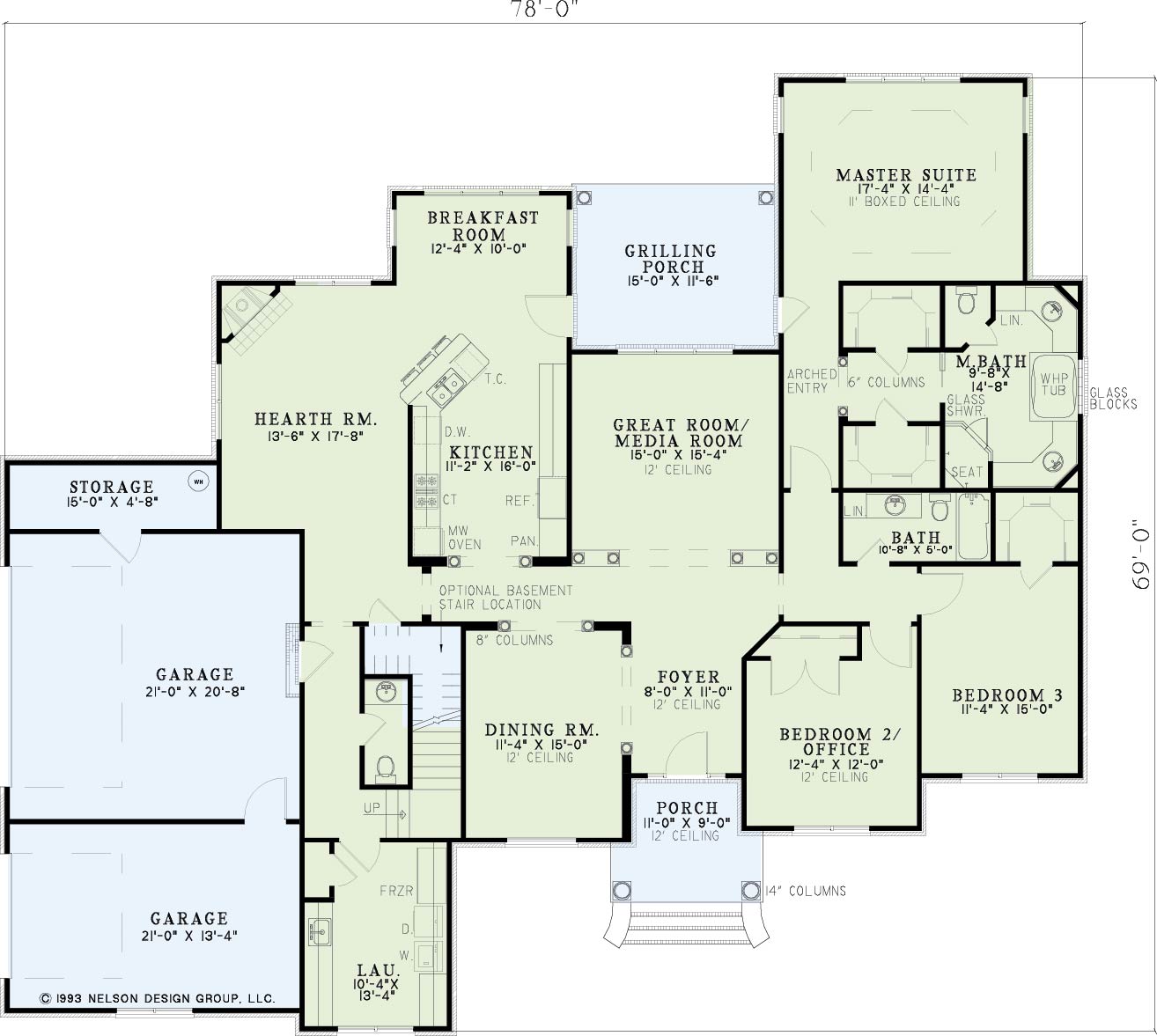

House Plan NDG 717 Main Floor

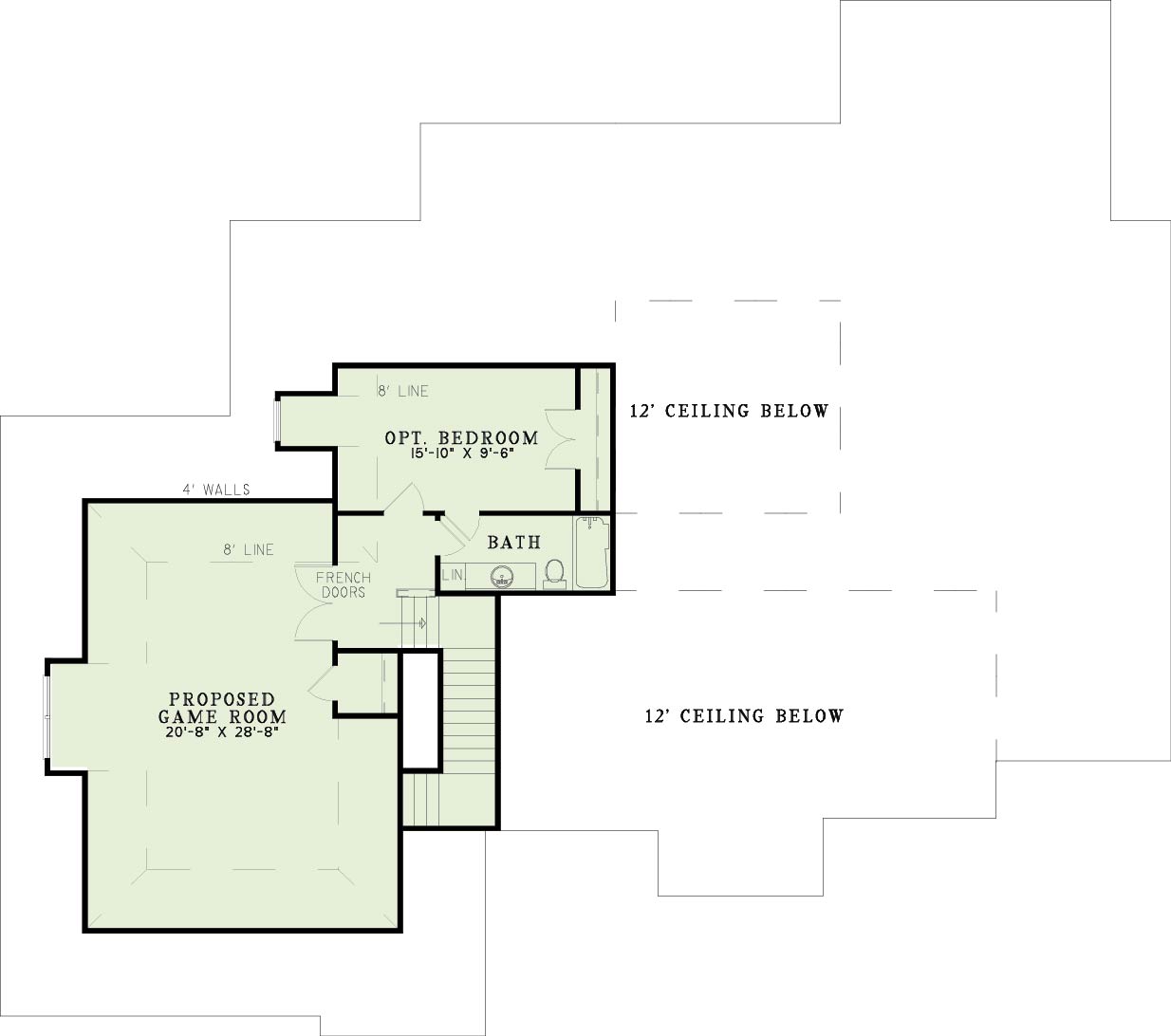

House Plan NDG 717 Upper Floor
House Plan NDG 717 Main Floor

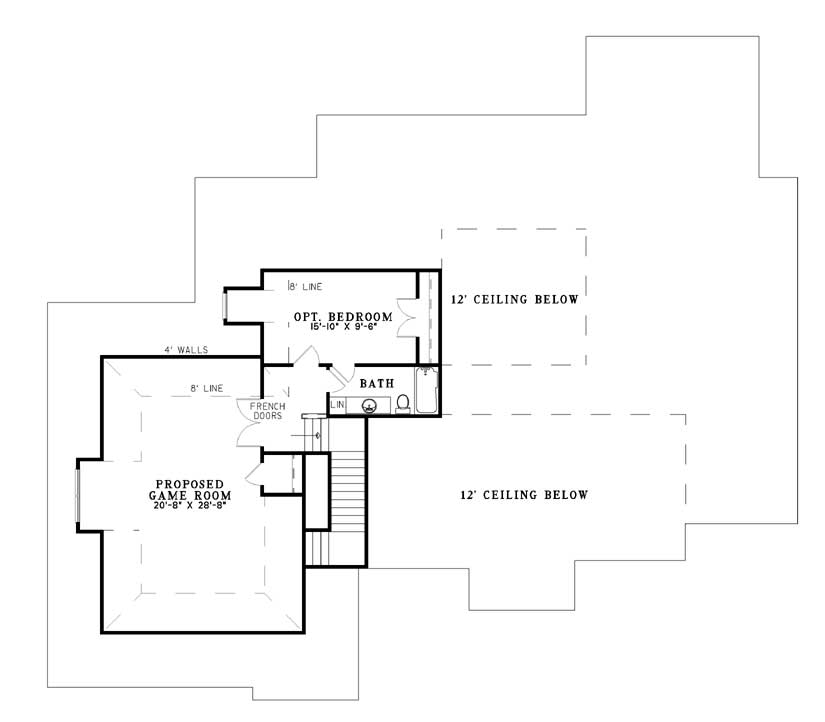

House Plan NDG 717 Upper Floor

Floor plans

NDG 717

House Plan 717 Birchwood Lane, Traditional House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 717
  • Total Living Space:2738Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 3 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 78
  • Width In.: N/A
  • Depth Ft.: 69
  • Depth In.: N/A


Columns and a brick arched entryway make this Nelson Design Group home stand out from the rest. The columns continue inside as well, framing the doorways to the great room, dining room, and kitchen. Warm yourself by the fire in the unique hearth room near the kitchen. The family chef will love showing off their grilling skills on the huge rear grilling porch. This master suite is fit for a king with its elegant boxed ceiling and amenities such as two walk-in closets, double vanities, and a whirlpool bath. Two additional bedrooms complete the main floor of this home. A proposed game room, an optional bedroom, and a full bath are included in the upper floor plan.


  • Total Living Space:2738Sq.Ft.
  • Main Floor: 2738 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 915 Sq.Ft.
  • Porch (Sq.Ft.): 288 Sq.Ft.
  • Garage (Sq.Ft.): 821 Sq.Ft.
  • Total Square Feet: 4762 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 10
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 31
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
