House Plan 715 Olive Street, Farmhouse House Plan

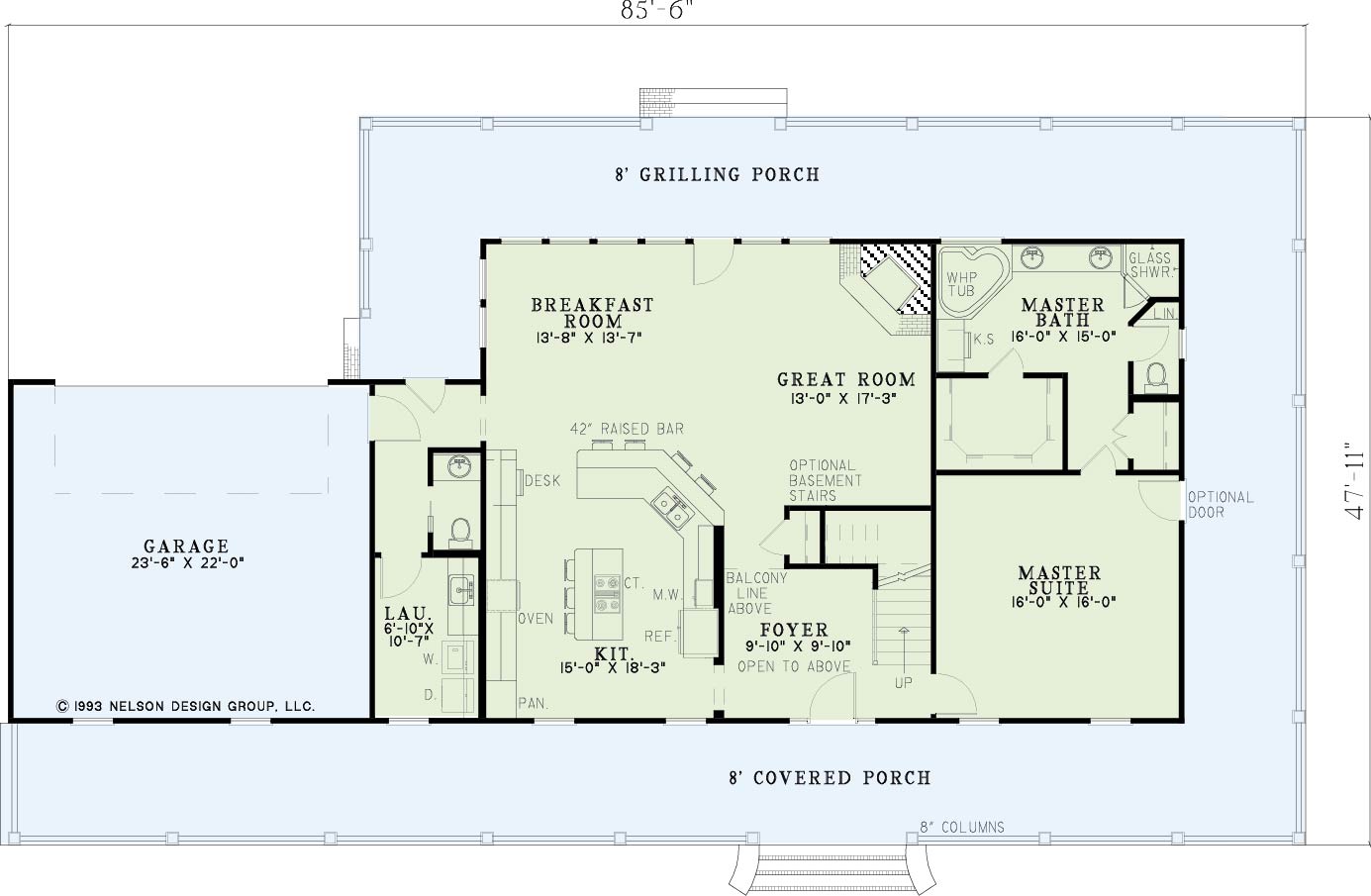

House Plan NDG 715 Main Floor

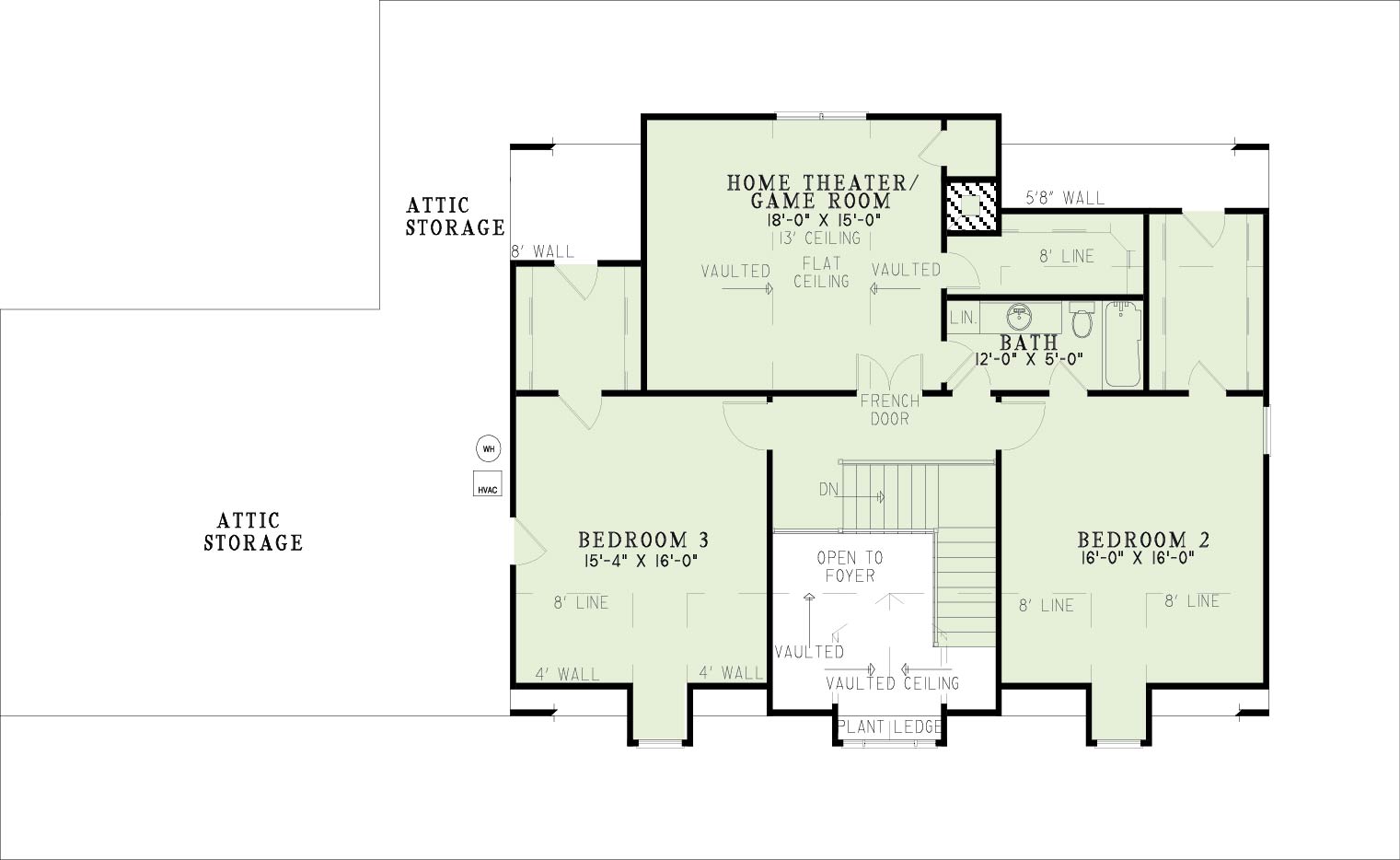

House Plan NDG 715 Upper Floor
House Plan NDG 715 Main Floor
House Plan NDG 715 Upper Floor

Floor plans

NDG 715

House Plan 715 Olive Street, Farmhouse House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 715
  • Total Living Space:2851Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 85
  • Width In.: 6
  • Depth Ft.: 47
  • Depth In.: 11

Description

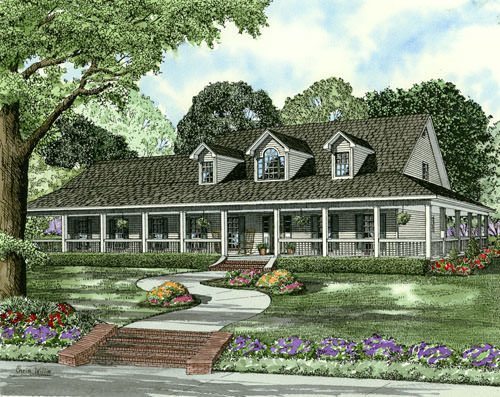

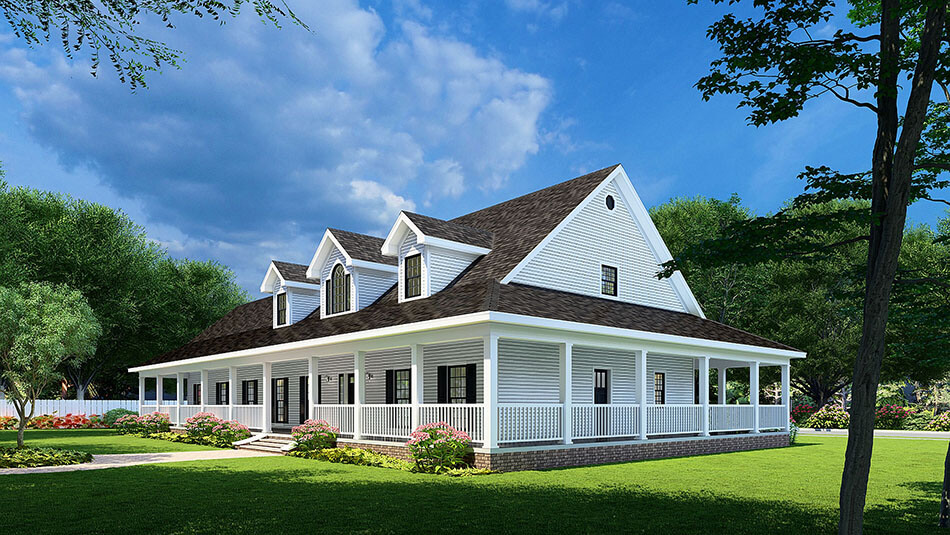

Relax on the covered wrap-around porch featured on this charming Nelson Design Group home. The great room with corner fireplace and the breakfast room merge together to create a huge area for entertaining. An island range and angled bar with seating, as well as a built-in desk, will help keep the family close at mealtime. The master suite can also be found on the main level of this home. Upstairs you’ll find two bedrooms with walk-in closets, a full bath, and a Home Theater/Game Room.

Specifications

  • Total Living Space:2851Sq.Ft.
  • Main Floor: 1645 Sq.Ft
  • Upper Floor (Sq.Ft.): 1206 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 1512 Sq.Ft.
  • Garage (Sq.Ft.): 540 Sq.Ft.
  • Total Square Feet: 4903 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 6:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
