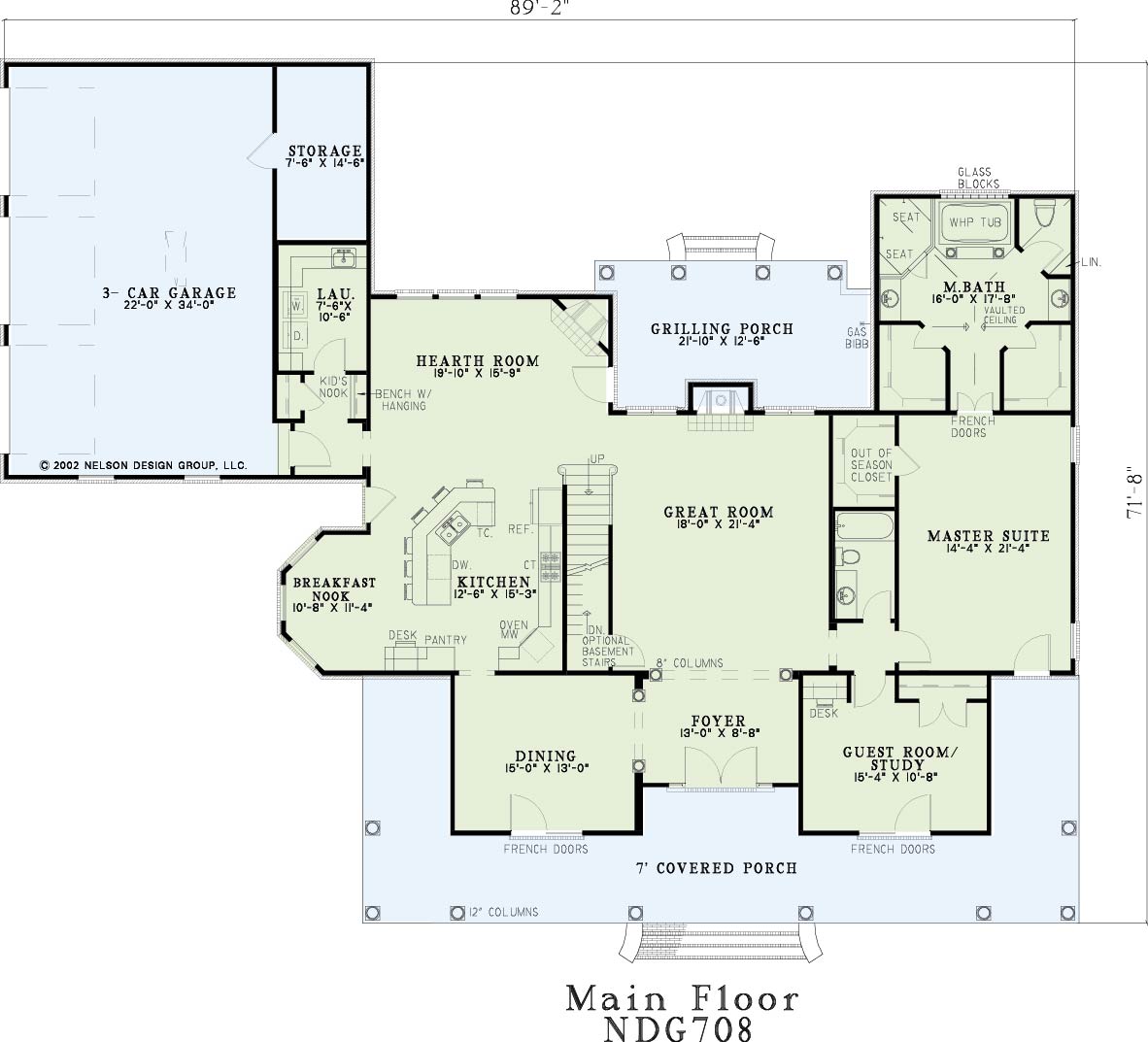

NDG 708 Main Floor
NDG 708 Upper Floor
House Plan NDG 708

Floor plans

NDG 708

House Plan 708 Cottonwood Drive, Country House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 708
  • Total Living Space:3678Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 4
  • Half Baths: N/A
  • Garage: Yes 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 89
  • Width In.: 2
  • Depth Ft.: 71
  • Depth In.: 8

Description

This Southern Traditional design by Nelson Design Group features French doors and a timeless wrap around porch flanked with twelve-inch columns. A foyer divides the dining room from the study and leads into the great room with fireplace. Warmth and family gatherings await you in the cozy Hearth room that opens into a spacious kitchen with breakfast nook. Luxury can be found in the Master Suite located at the rear of the main level for the ultimate privacy. Travel upstairs and find a game room or home theater with a nearby hobby room as well as additional bedrooms and private baths.

Specifications

  • Total Living Space:3678Sq.Ft.
  • Main Floor: 2580 Sq.Ft
  • Upper Floor (Sq.Ft.): 1098 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 943 Sq.Ft.
  • Garage (Sq.Ft.): 902 Sq.Ft.
  • Total Square Feet: 5523 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
