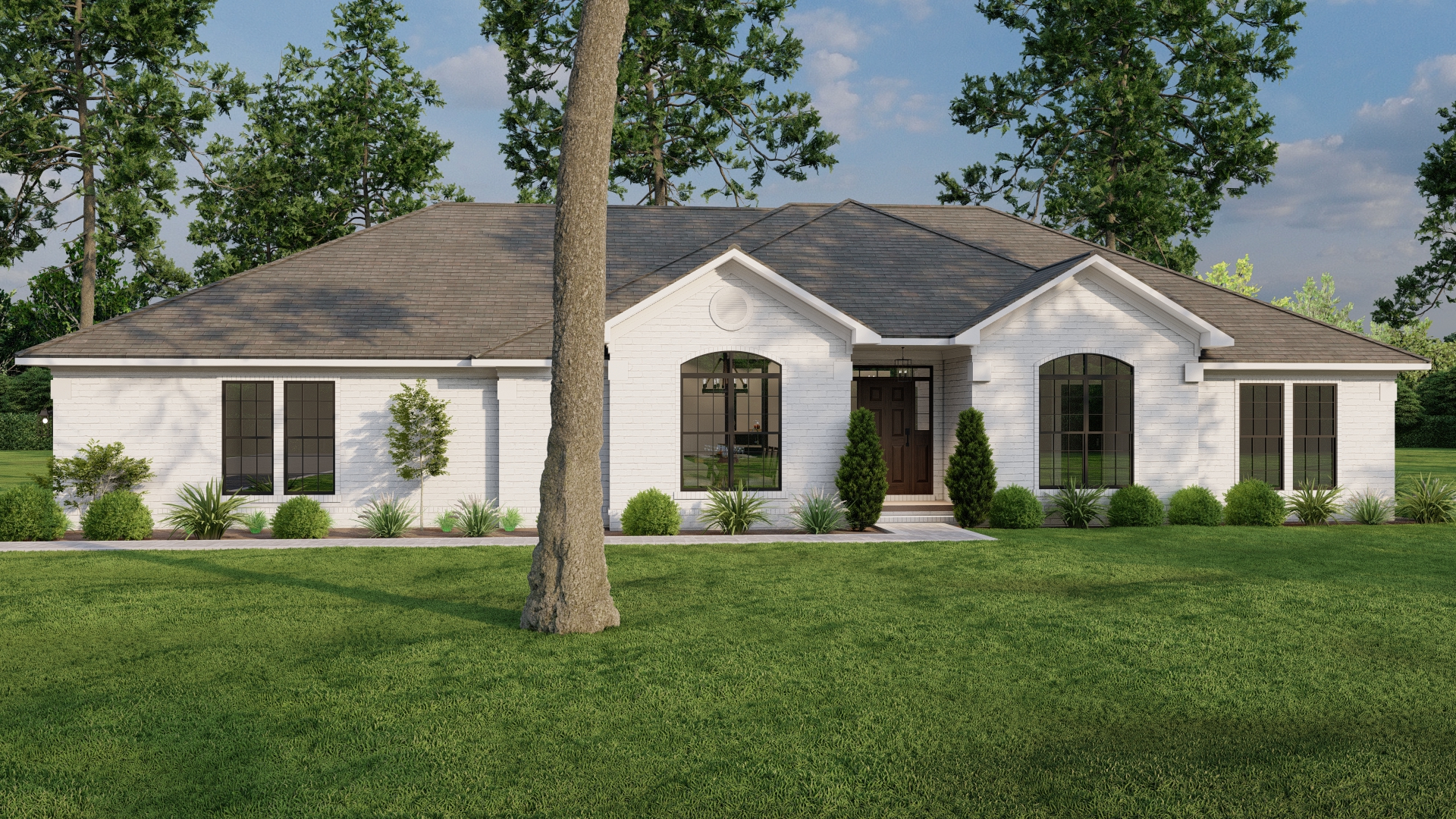

House Plan 702 Cherry Street, Traditional House Plan

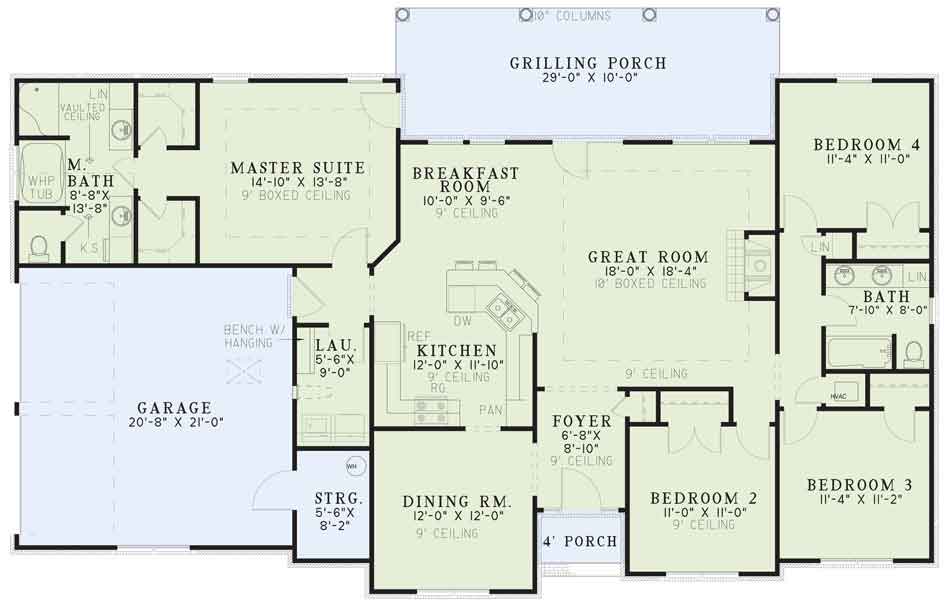

House Plan NDG 702 Main Floor
House Plan NDG 702 Main Floor

Floor plans

NDG 702

House Plan 702 Cherry Street, Traditional House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 702
  • Total Living Space:1913Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 69
  • Width In.: 6
  • Depth Ft.: 44
  • Depth In.: 4

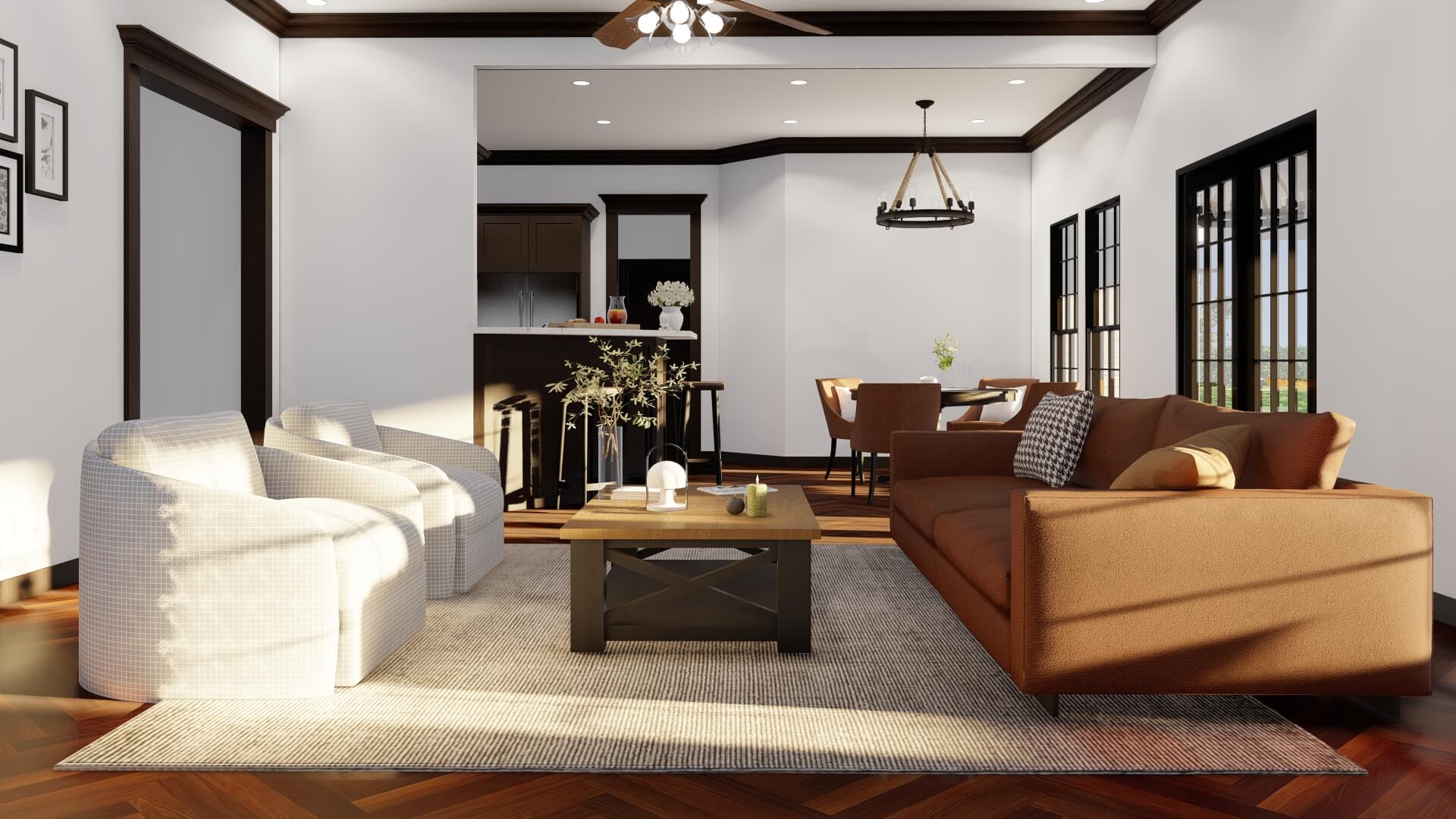

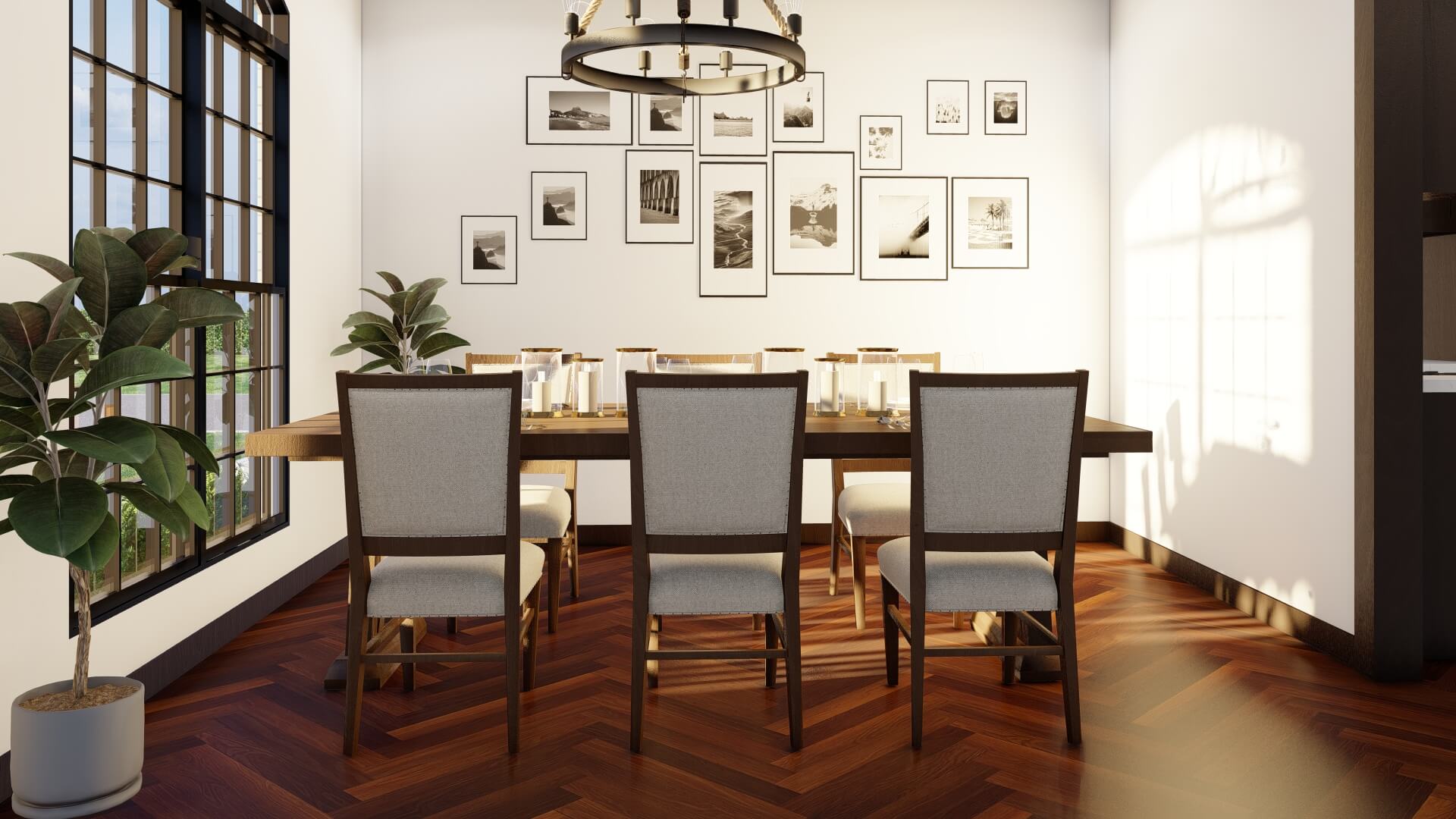

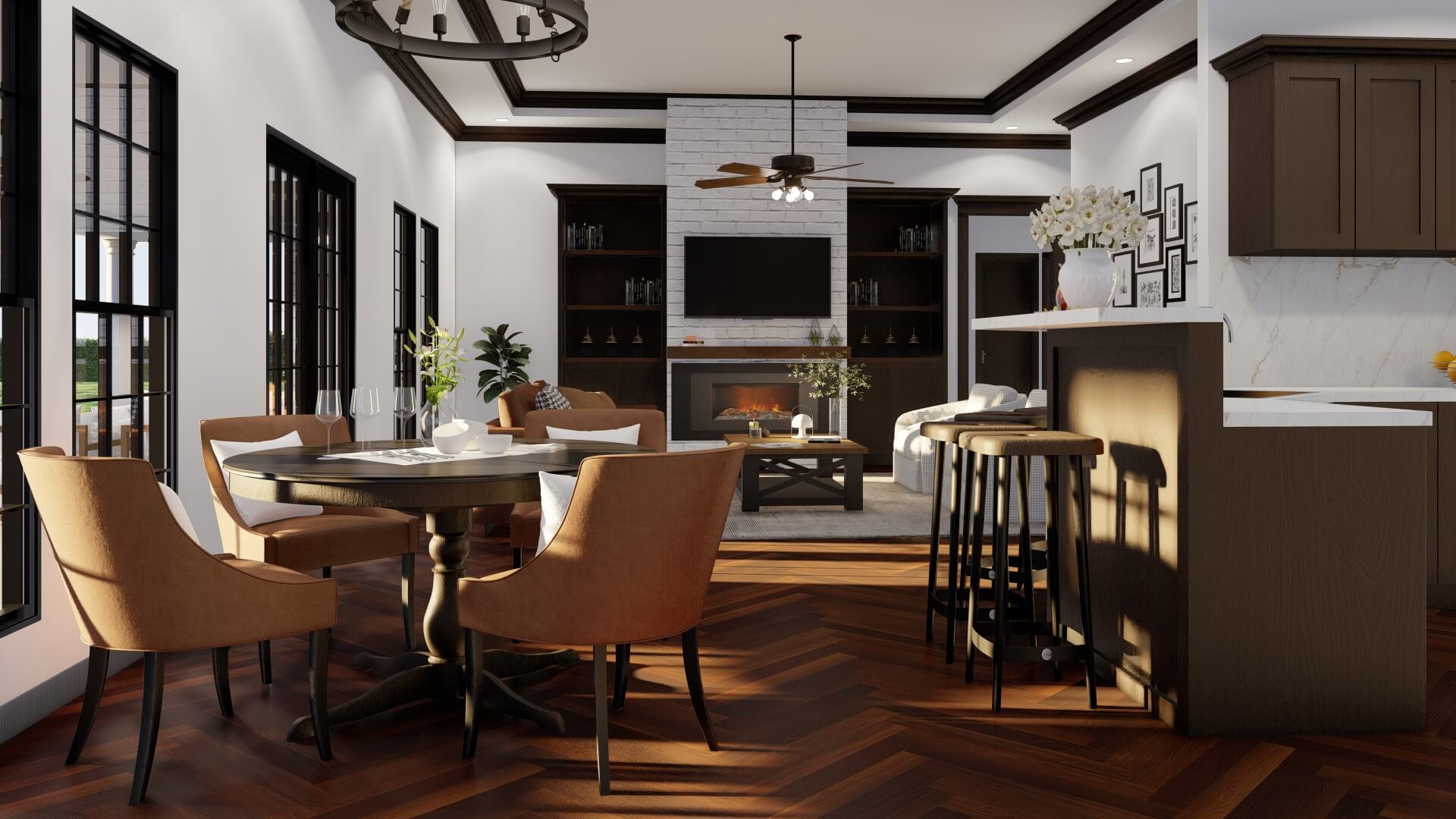

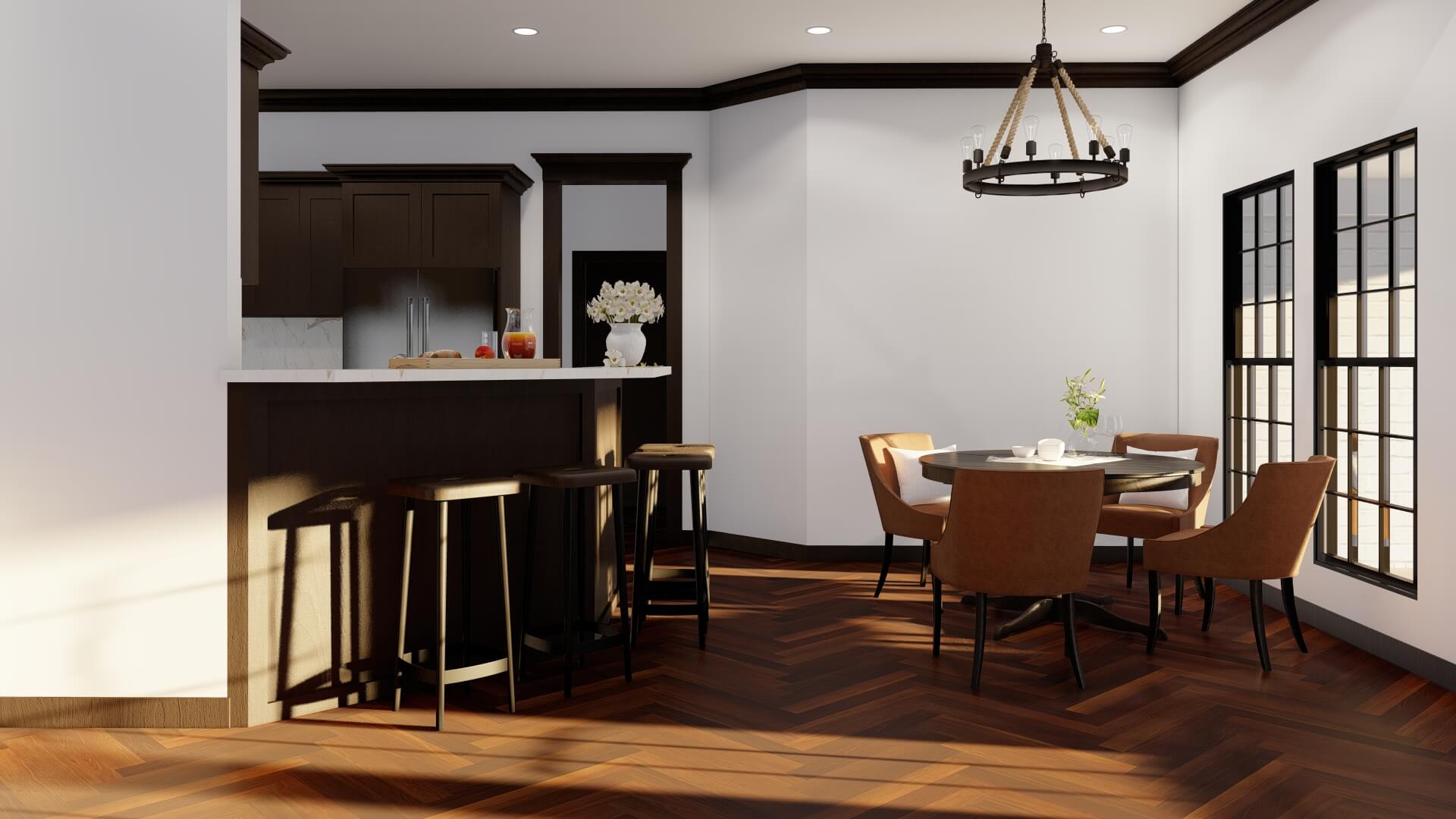

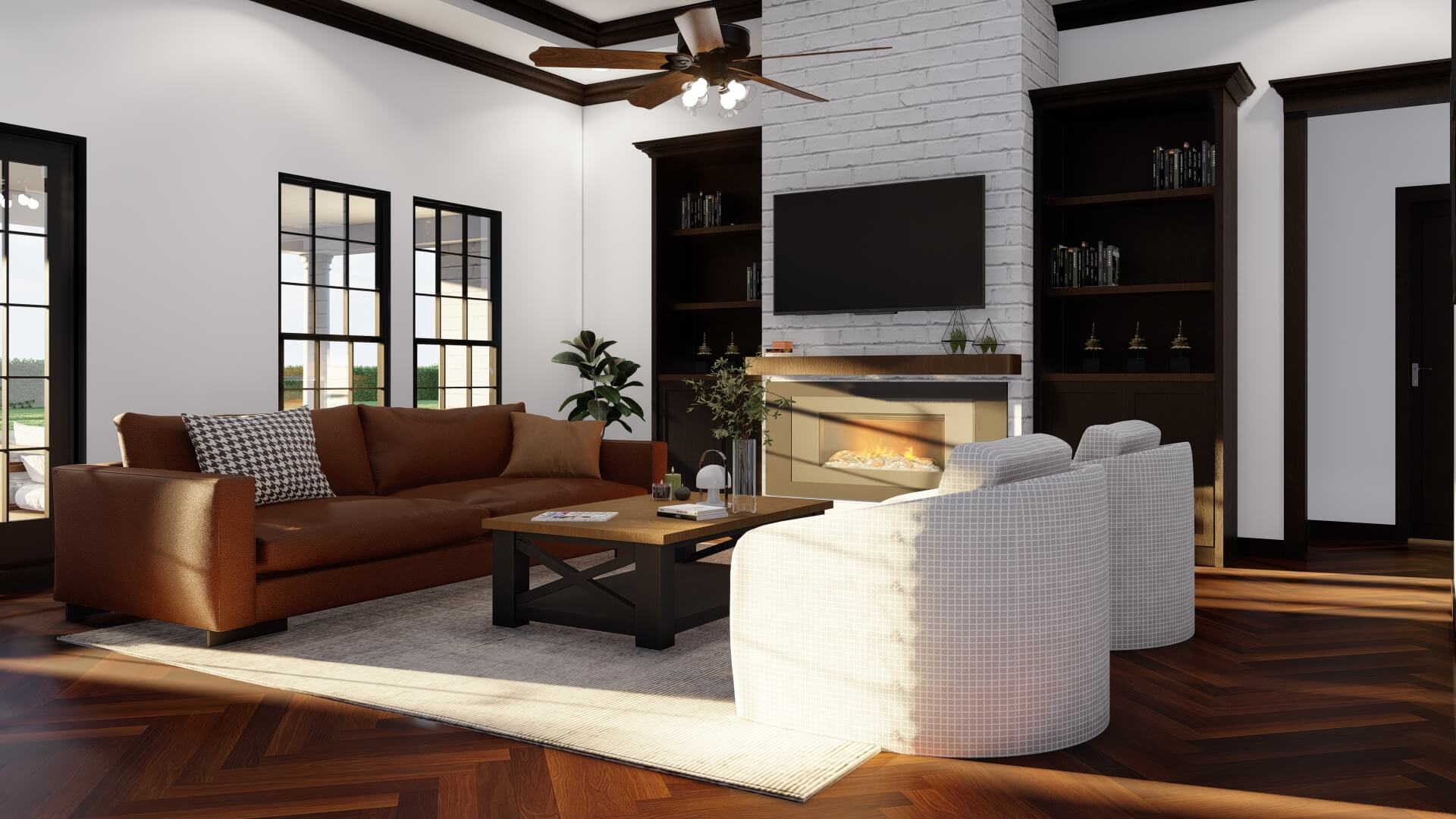

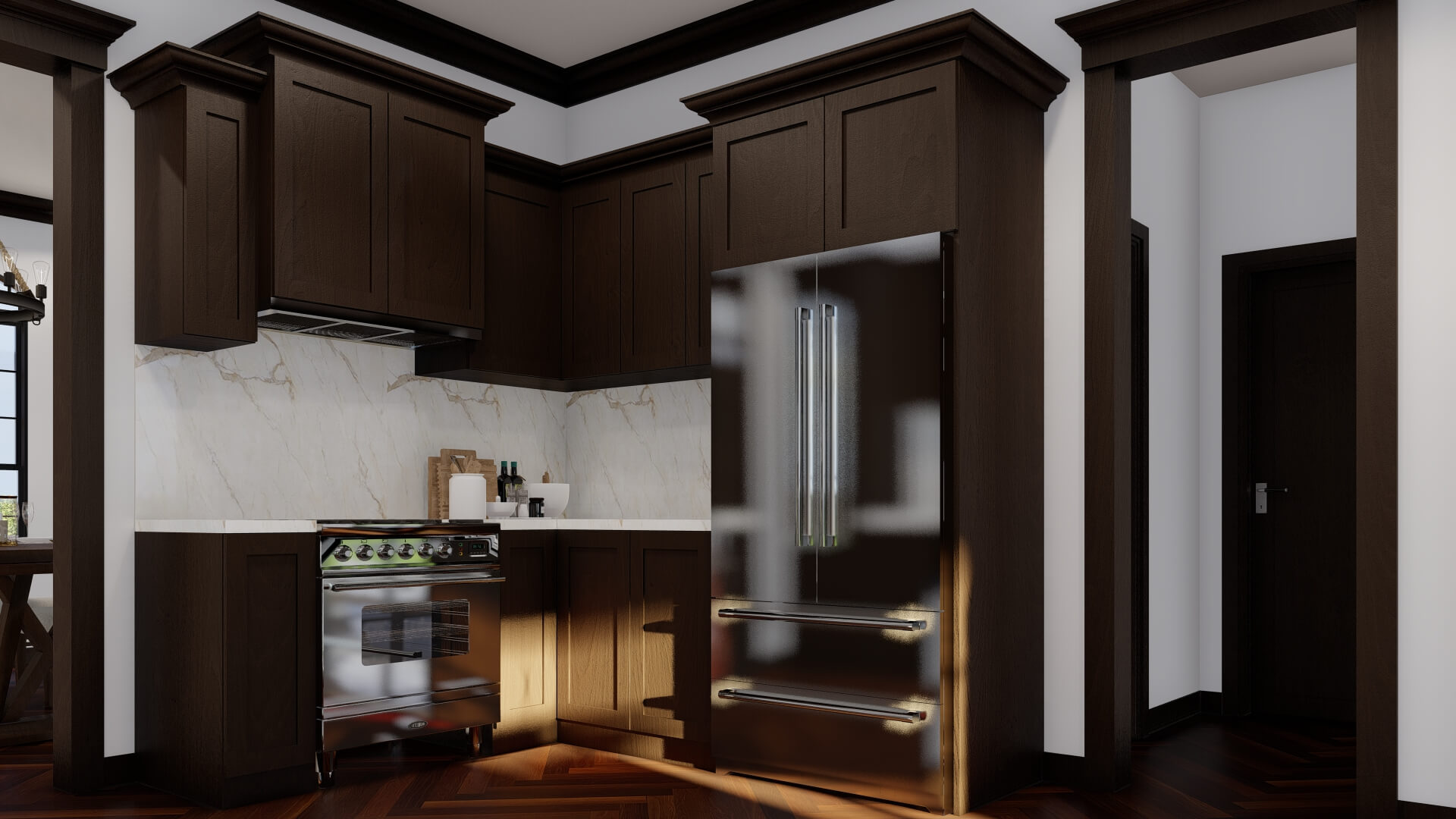

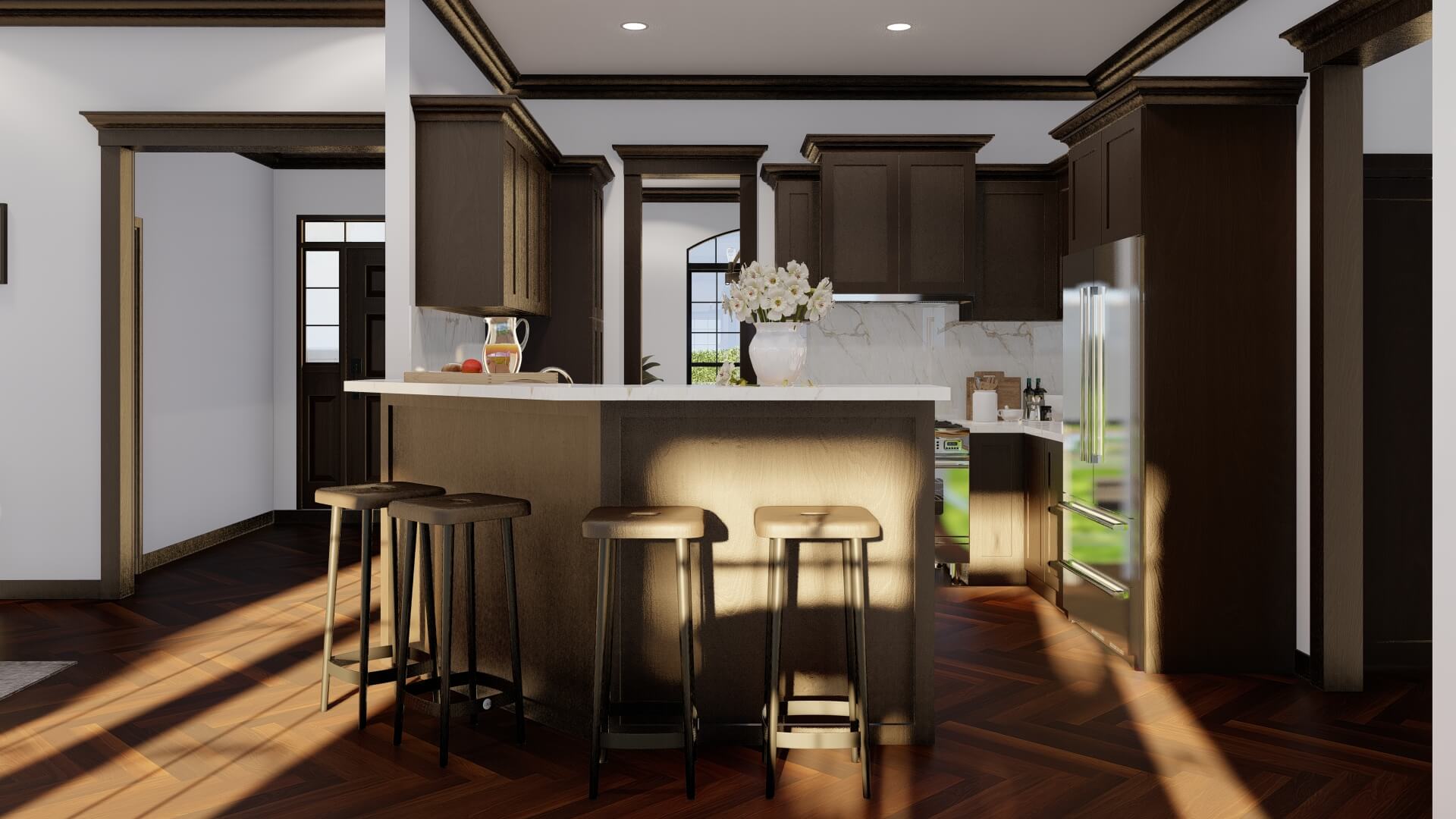

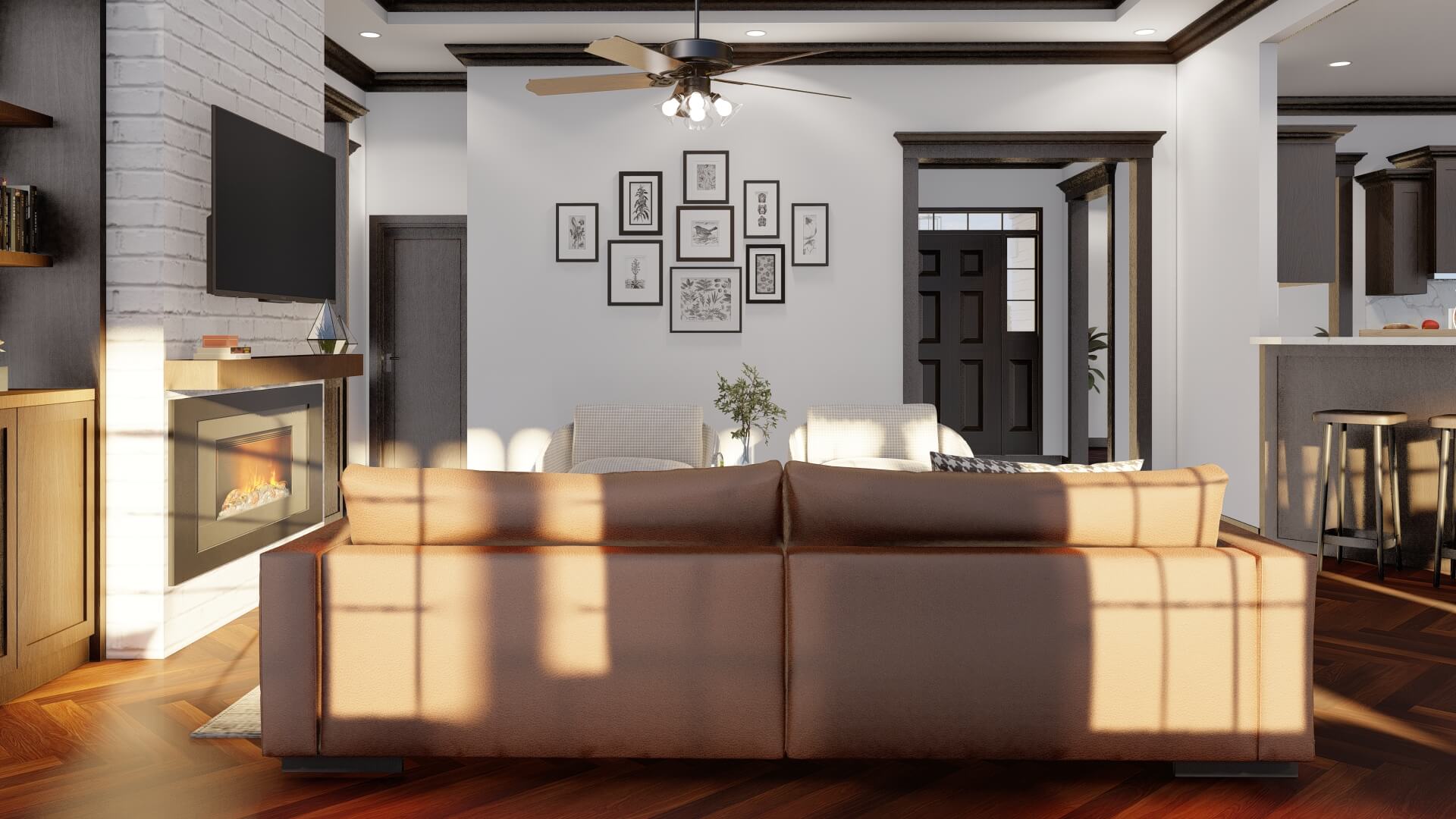

Imagine coming home to this wonderful design by Nelson Design Group. After work, settle into the generous great room next to the cozy fireplace before preparing dinner in your well-planned kitchen. Serve your guests with a smile in the adjoining breakfast room or dining room. This split bedroom design lets you tuck in the children on one side of the home and retire to your private master suite on the other side for a peaceful night’s sleep.


  • Total Living Space:1913Sq.Ft.
  • Main Floor: 1913 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 312 Sq.Ft.
  • Garage (Sq.Ft.): 498 Sq.Ft.
  • Total Square Feet: 2723 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 7:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 19
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
