House Plan 695 Amtheyst, Modern House Plan

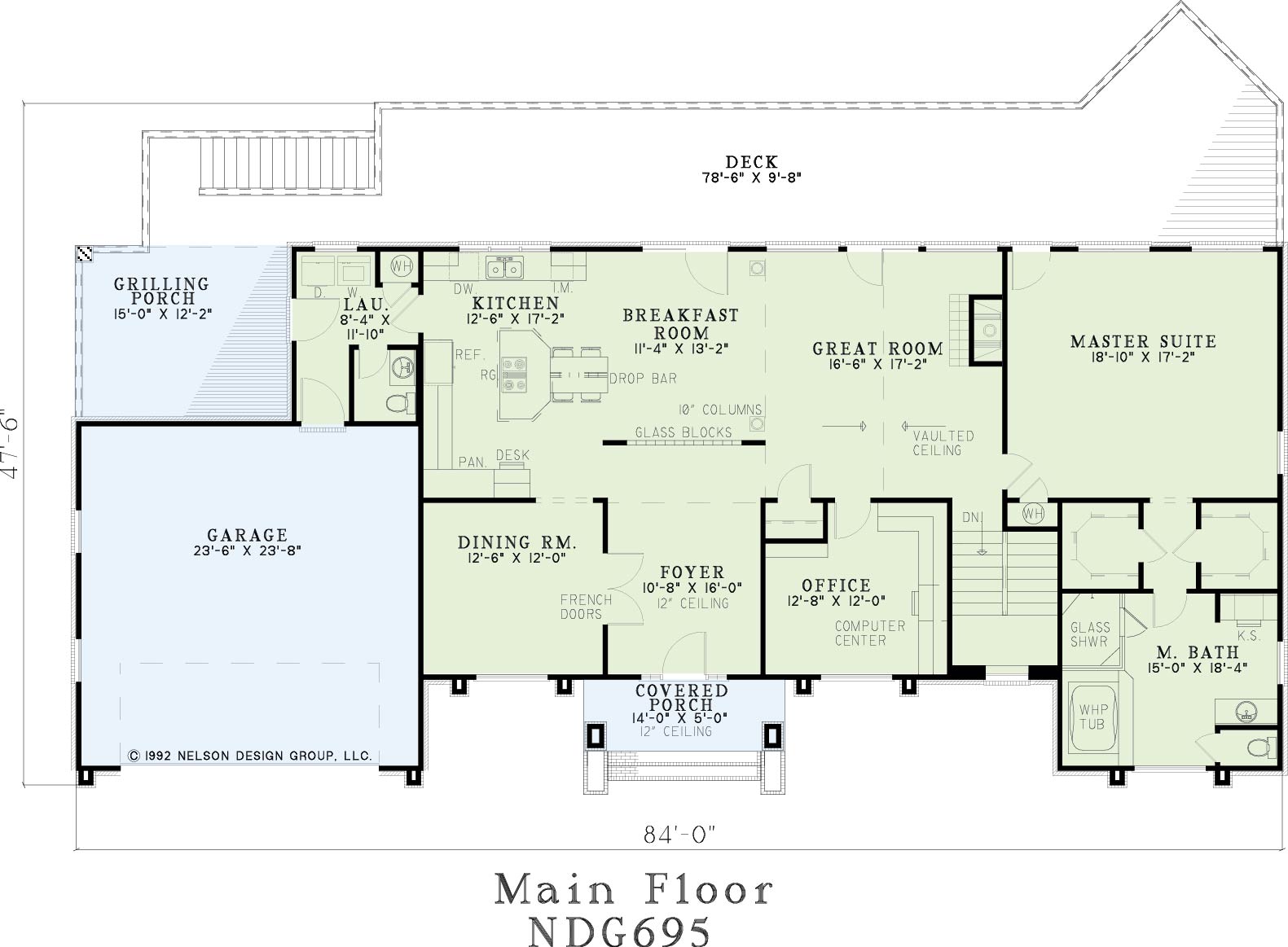

House Plan NDG 695 Main Floor

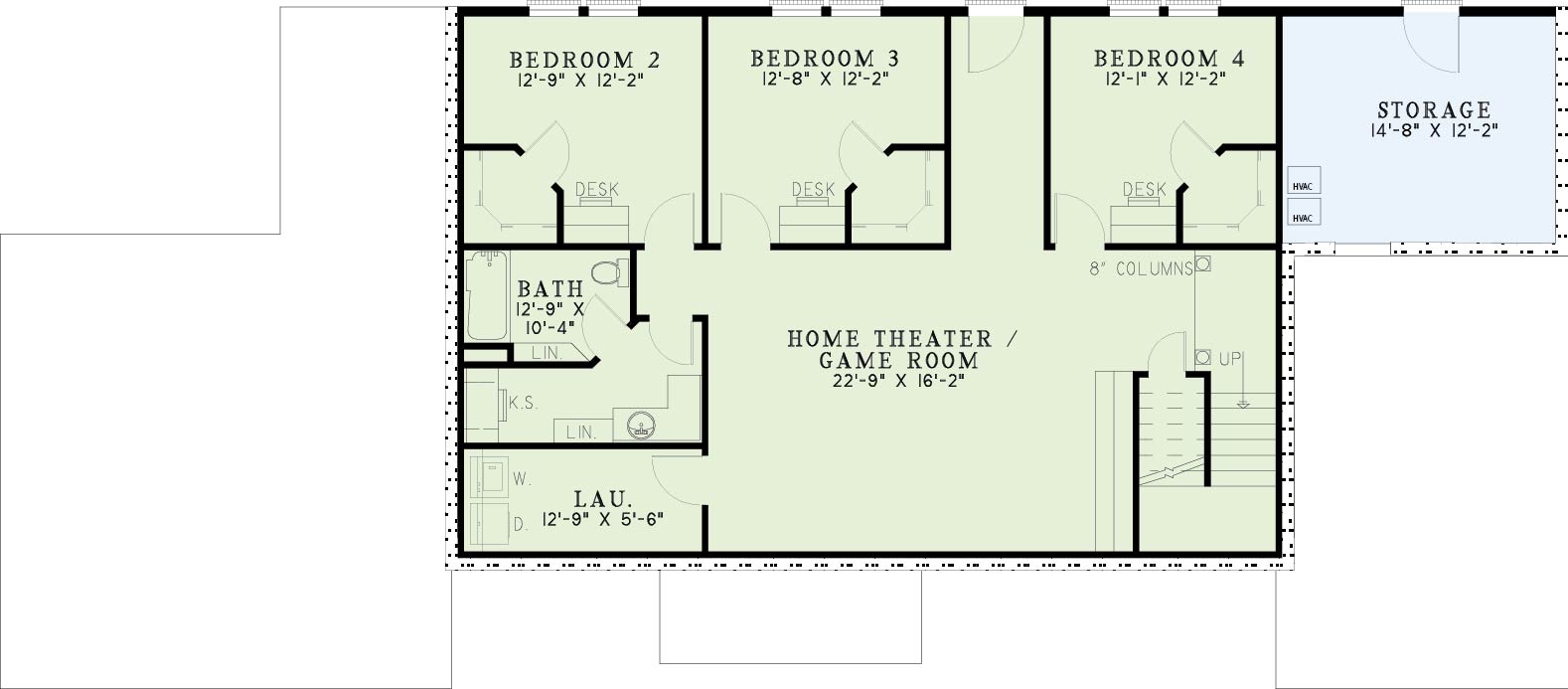

House Plan NDG 695 Basement
House Plan NDG 695 Main Floor
House Plan NDG 695 Basement

Floor plans

NDG 695

House Plan 695 Amtheyst, Modern House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 695
  • Total Living Space:3434Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 84
  • Width In.: N/A
  • Depth Ft.: 47
  • Depth In.: 6

Description

This unique two level Nelson Design Group home plan will be the talk of the neighborhood. Notice the glass block wall that divides the space between the foyer and the breakfast room. Columns border the great room with access to the large deck that spans the rear of this home. An office with a convenient computer center and the amenity-filled master suite complete this floor. The lower floor includes a huge centralized home theater/game room, three bedrooms with walk-in closets and built-in desks, and a full bath.

Specifications

  • Total Living Space:3434Sq.Ft.
  • Main Floor: 2025 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): 1409 Sq.Ft.
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 994 Sq.Ft.
  • Garage (Sq.Ft.): 579 Sq.Ft.
  • Total Square Feet: 5007 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 7:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 18
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
