House Plan 667 Olive Street, Country Home House Plan

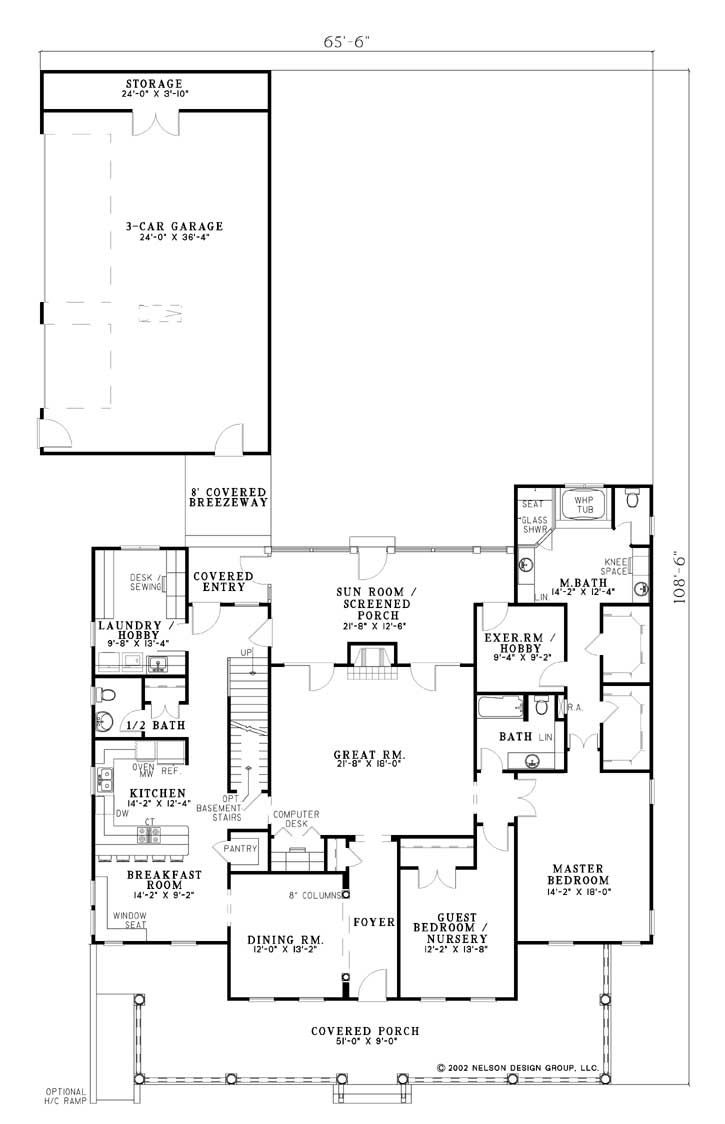

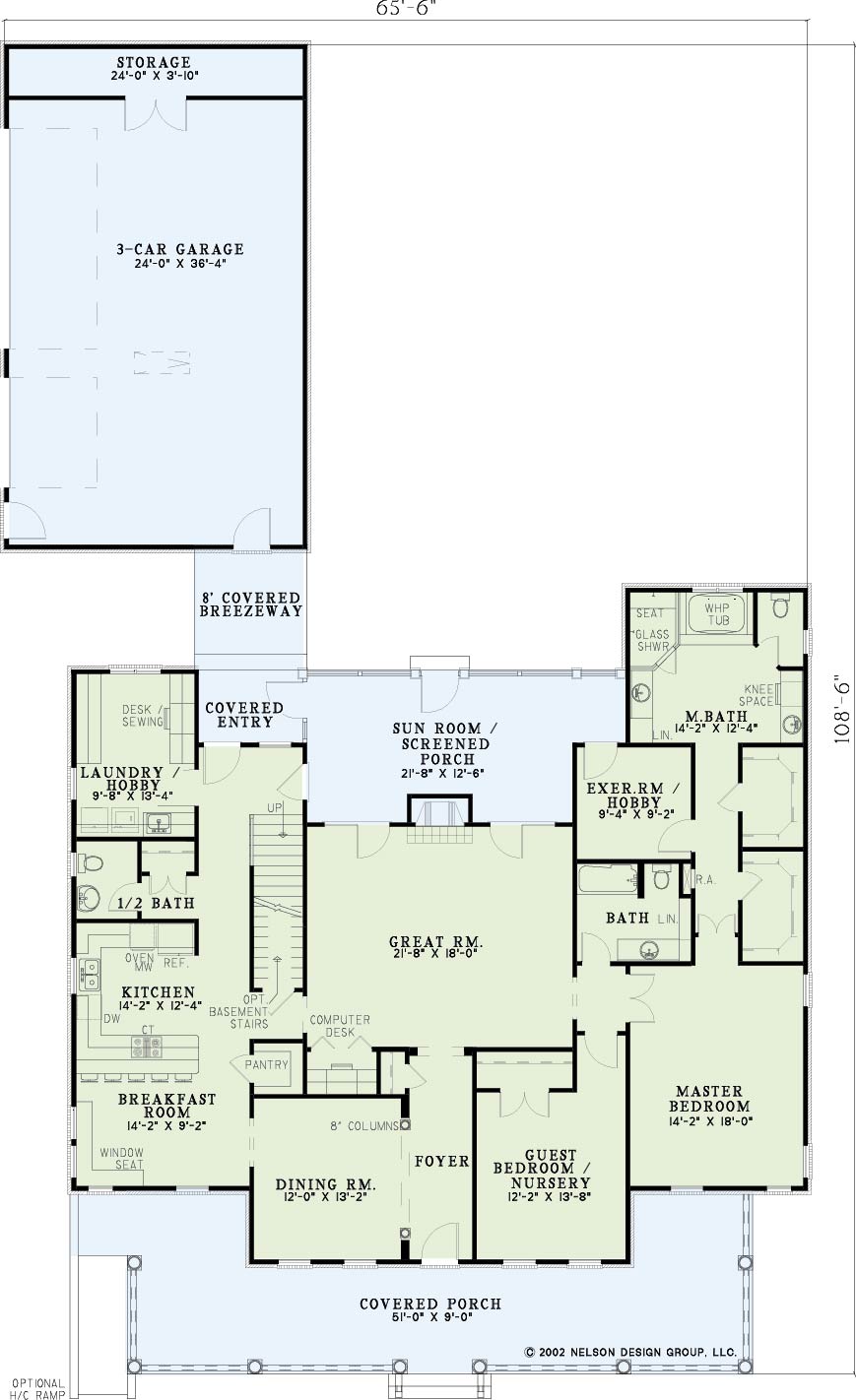

House Plan NDG 667 Main Floor

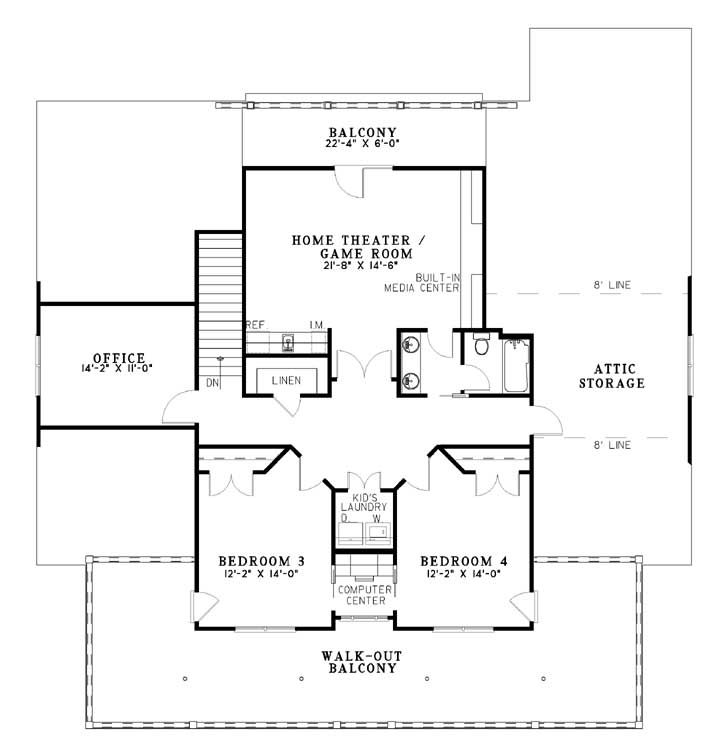

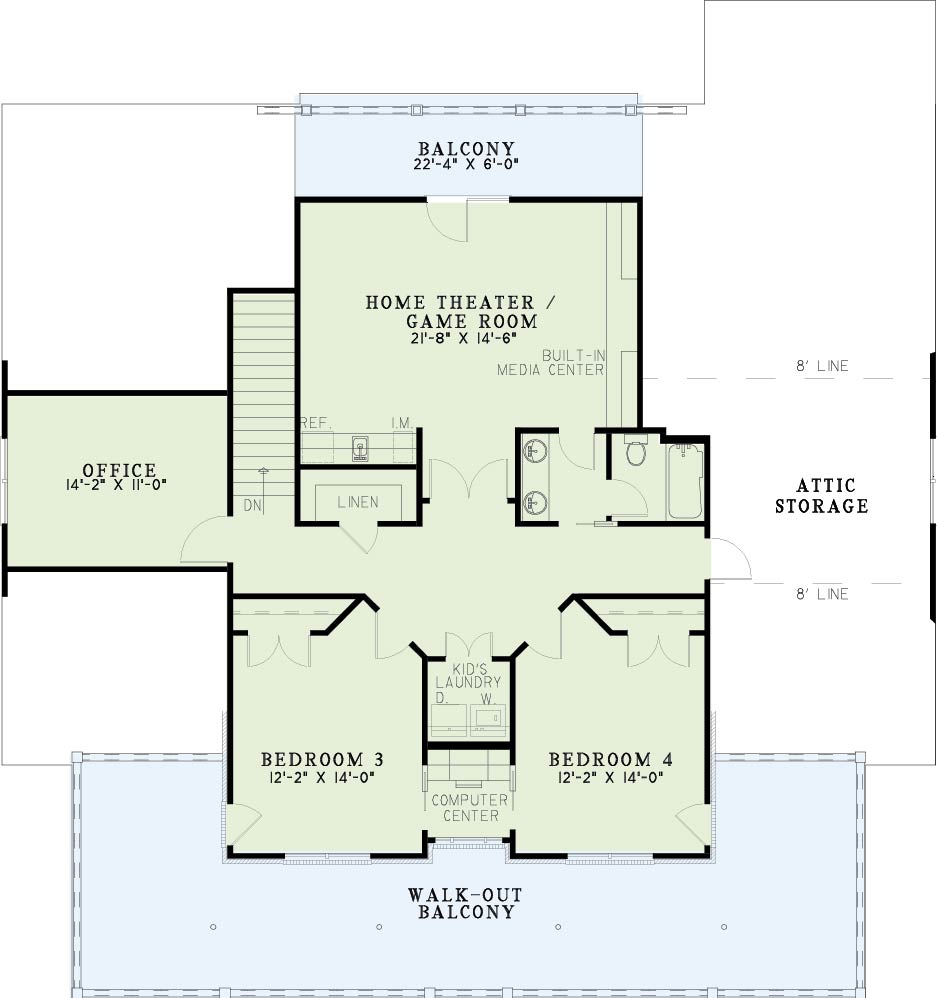

House Plan NDG 667 Upper Floor
House Plan NDG 667 Main Floor
House Plan NDG 667 Upper Floor

Floor plans

NDG 667

House Plan 667 Olive Street, Country Home House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 667
  • Total Living Space:3820Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: 1
  • Garage: 3 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 65
  • Width In.: 6
  • Depth Ft.: 108
  • Depth In.: 6

Description

A southern traditional style home with handicap accessible features describes this home. Imagine welcoming friends and family on the full length front porch with columns. Inside, the feeling of grandeur is evident with the spacious great room, with convenient computer center nearby. A charming wrap around window seat in the breakfast room provides conversation over coffee. Your master suite features a personal exercise or hobby room. Upstairs, you’ll discover the children’s bedrooms, an office and home theater room for weekly showings.

Specifications

  • Total Living Space:3820Sq.Ft.
  • Main Floor: 2484 Sq.Ft
  • Upper Floor (Sq.Ft.): 1336 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 1019 Sq.Ft.
  • Garage (Sq.Ft.): 1015 Sq.Ft.
  • Total Square Feet: 5854 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 32
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
