House Plan 662 Rosewood, Multi-Family House Plan

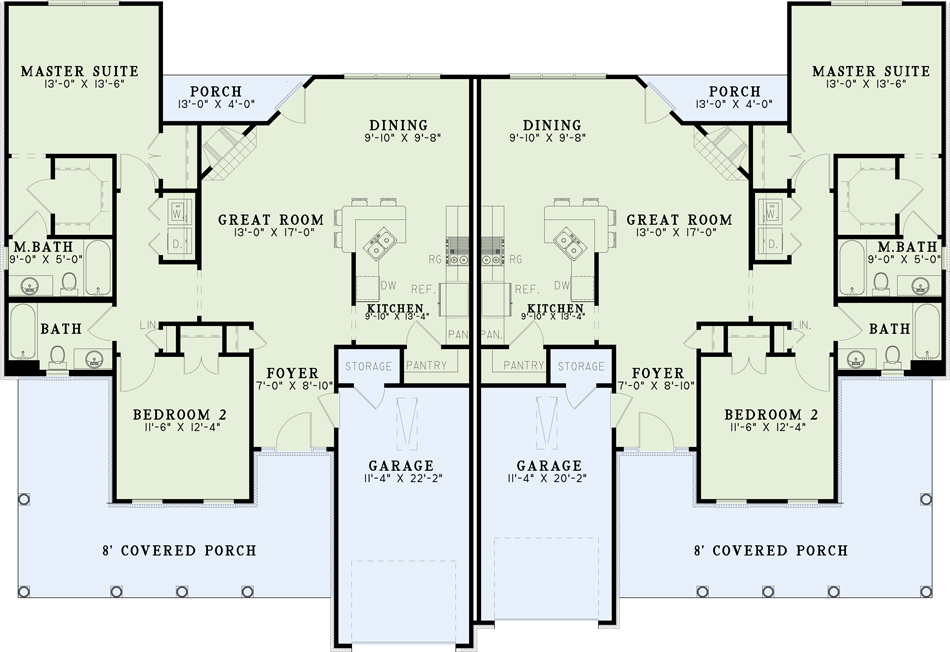

Floor plans
NDG 662
House Plan 662 Rosewood, Multi-Family House Plan
PDF: $1,100.00
Plan Details
- Plan Number: NDG 662
- Total Living Space:1271Sq.Ft.
- Bedrooms: 2
- Full Baths: 2
- Half Baths: N/A
- Garage: 1 Bay Yes
- Garage Type: Front Load
- Carport: N/A
- Carport Type: N/A
- Stories: 1
- Width Ft.: 81
- Width In.: 4
- Depth Ft.: 55
- Depth In.: 10
Description
This elegant Nelson Design Group duplex features a magnificaent interior design. Each home plan offers an open floor plan for the main rooms of the design. A glowing corner fireplace will provide a much needed way to wind down from the day’s end. The quaint dining room will provide an awesome rear view. The secluded master suite provides a wonderful sanctuary including the private bath. A convenient laundry area and hidden porch are key features completing this design.
Specifications
- Total Living Space:1271Sq.Ft.
- Main Floor: 1271 Sq.Ft
- Upper Floor (Sq.Ft.): N/A
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 337 Sq.Ft.
- Garage (Sq.Ft.): 286 Sq.Ft.
- Total Square Feet: 1894 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 9
- Upper Ceiling Height: N/A
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 9:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 26
- Ridge Height (In.): 0
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
