House Plan 650 Olive Street, Traditional House Plan
Floor plans
NDG 650
House Plan 650 Olive Street, Traditional House Plan
Plan Details
- Plan Number: NDG 650
- Total Living Space:3005Sq.Ft.
- Bedrooms: 4
- Full Baths: 3
- Half Baths: 1
- Garage: Yes 2 Bay
- Garage Type: Side Load
- Carport: N/A
- Carport Type: N/A
- Stories: 1.5
- Width Ft.: 67
- Width In.: 8
- Depth Ft.: 72
- Depth In.: 6
Description
Charming dormers and a covered porch add curb appeal to this Nelson Design Group home. From the foyer you’ll notice and appreciate the openness of this design. The expansive great room with fireplace merges seamlessly into the dining room and kitchen to create the perfect area for entertaining. A large rear screened porch and grilling patio also lend outdoor possibilities. Two secondary bedrooms and the luxurious master suite complete the main level. The upper floor houses a huge loft area with computer center, an additional bedroom, and a full bath.
Specifications
- Total Living Space:3005Sq.Ft.

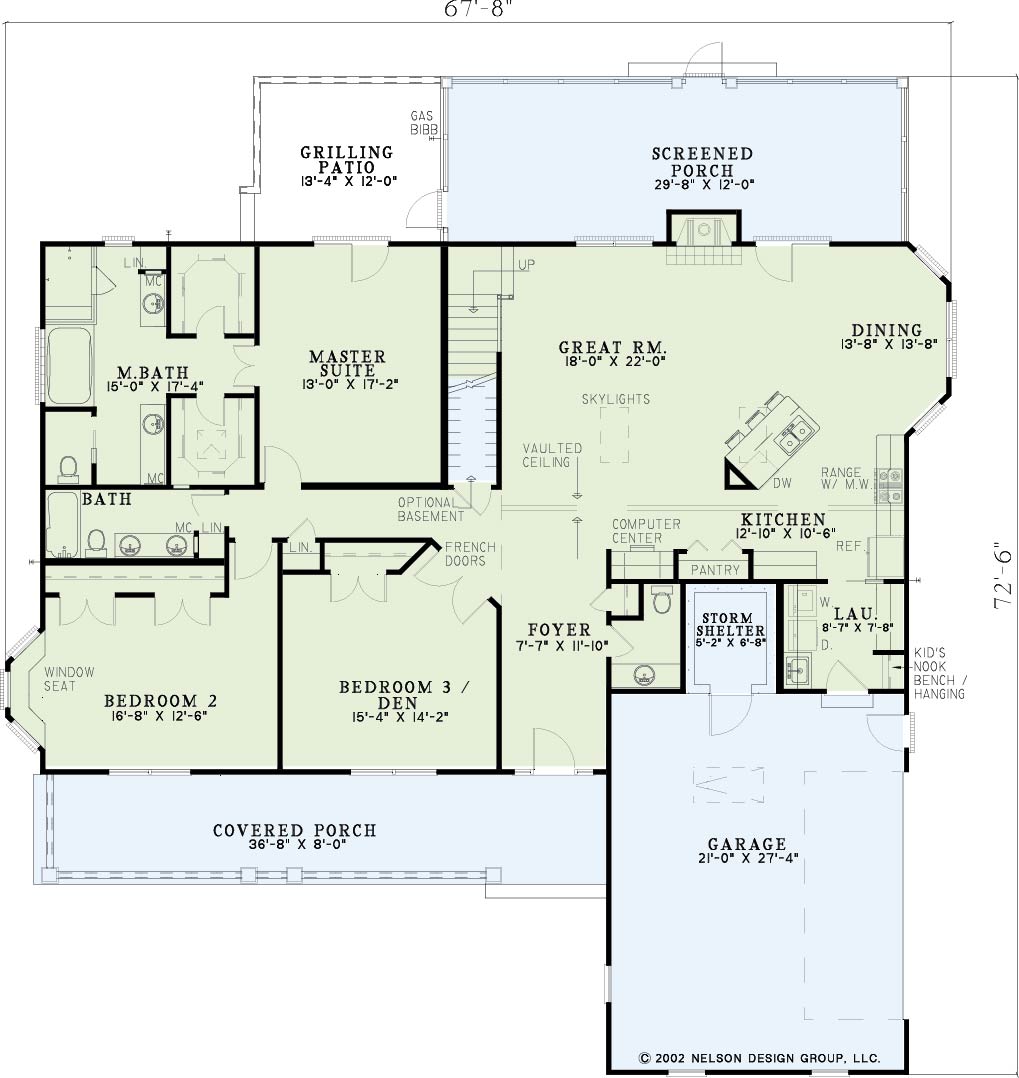

- Main Floor: 2277 Sq.Ft

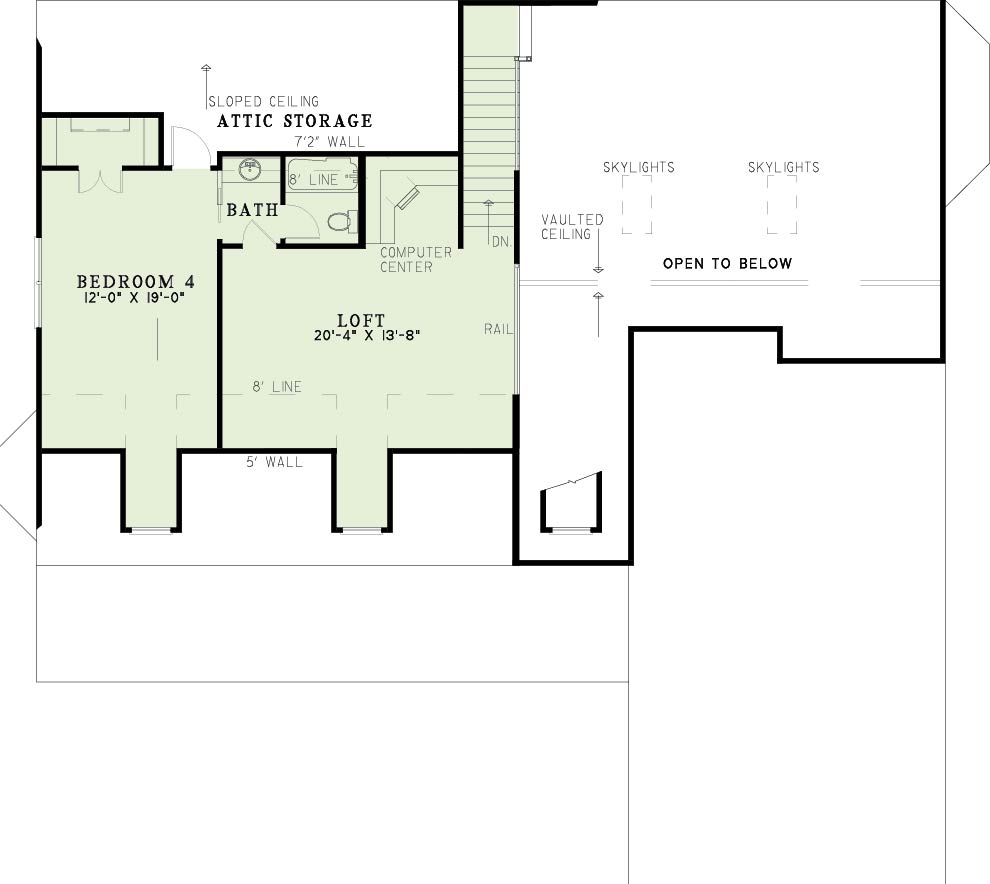

- Upper Floor (Sq.Ft.): 728 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 729 Sq.Ft.
- Garage (Sq.Ft.): 649 Sq.Ft.
- Total Square Feet: 4383 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: Yes
- Main Ceiling Height: 9
- Upper Ceiling Height: 8
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 10:12
- Porch Roof Pitch: 4:12
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 27
- Ridge Height (In.): 2
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
