House Plan 645 Providian Place, Providan House Plan
Floor plans
NDG 645
House Plan 645 Providian Place, Providan House Plan
Plan Details
- Plan Number: NDG 645
- Total Living Space:1841Sq.Ft.
- Bedrooms: 3
- Full Baths: 2
- Half Baths: 1
- Garage: Yes 2 Bay
- Garage Type: Front Load
- Carport: N/A
- Carport Type: N/A
- Stories: 2
- Width Ft.: 28
- Width In.: N/A
- Depth Ft.: 53
- Depth In.: 10
Description

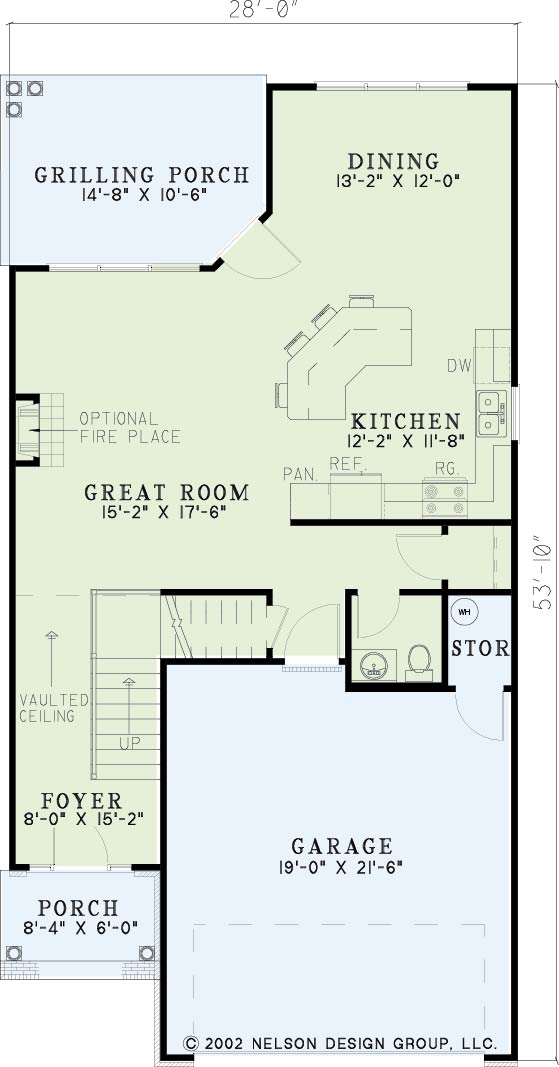

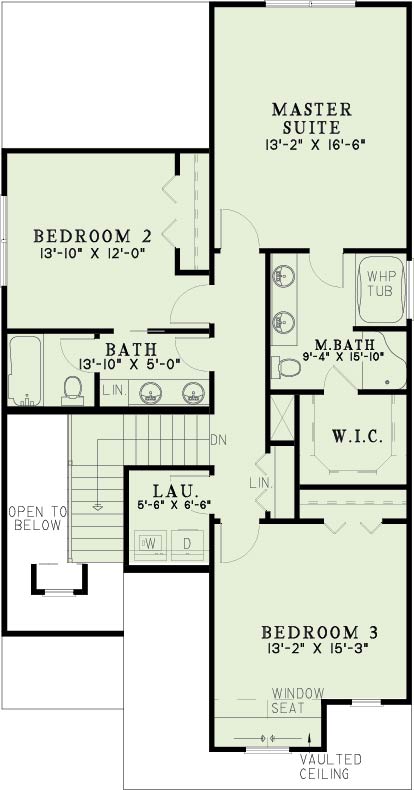

Nelson Design Group has created a lovely two story home perfect for entertaining. A cozy entry hall leads to an open floor plan containing a spacious Great Room, Kitchen and large Dining Room. The L-shaped Kitchen has an angled island serving as extra counter space and additional seating. Nearby is a corner grilling porch with columns for lazy summer afternoons. The upper level has a spacious Master Suite, two additional bedrooms, a full bathroom and nearby laundry room.
Specifications
- Total Living Space:1841Sq.Ft.
- Main Floor: 851 Sq.Ft
- Upper Floor (Sq.Ft.): 990 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 202 Sq.Ft.
- Garage (Sq.Ft.): 431 Sq.Ft.
- Total Square Feet: 2474 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: Yes
- Main Ceiling Height: 9
- Upper Ceiling Height: 8
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 10:12
- Porch Roof Pitch: 4:12
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 31
- Ridge Height (In.): 1
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
- Master Bedroom: Master Bedroom Upper Level
