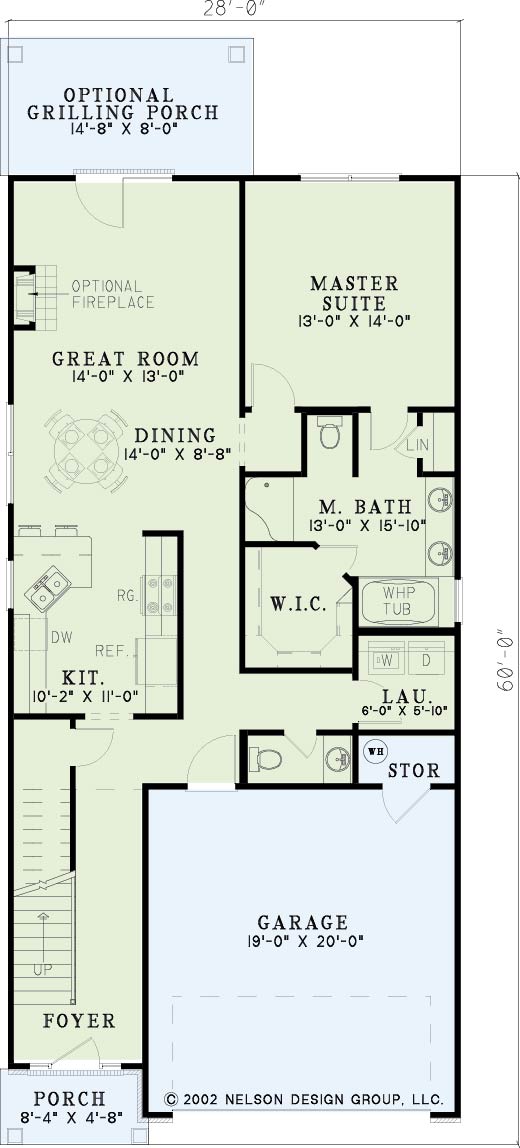

House Plan NDG 641 Main Floor

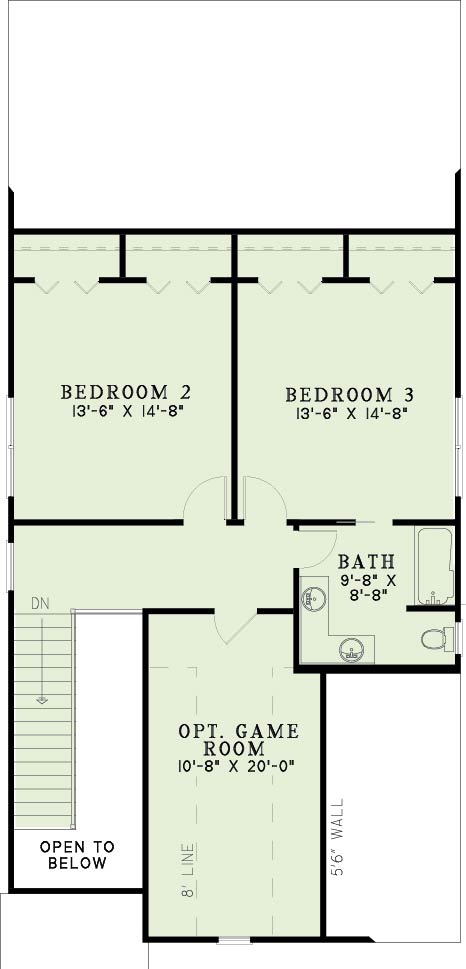

House Plan NDG 641 Upper Floor
>
>
>
>
>
>
>
>
>
>
>
>
House Plan NDG 641 Main Floor
House Plan NDG 641 Upper Floor

Floor plans

NDG 641

House Plan 641 Providian Place, Providan House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 641
  • Total Living Space:1890Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 28
  • Width In.: N/A
  • Depth Ft.: 60
  • Depth In.: N/A

Description

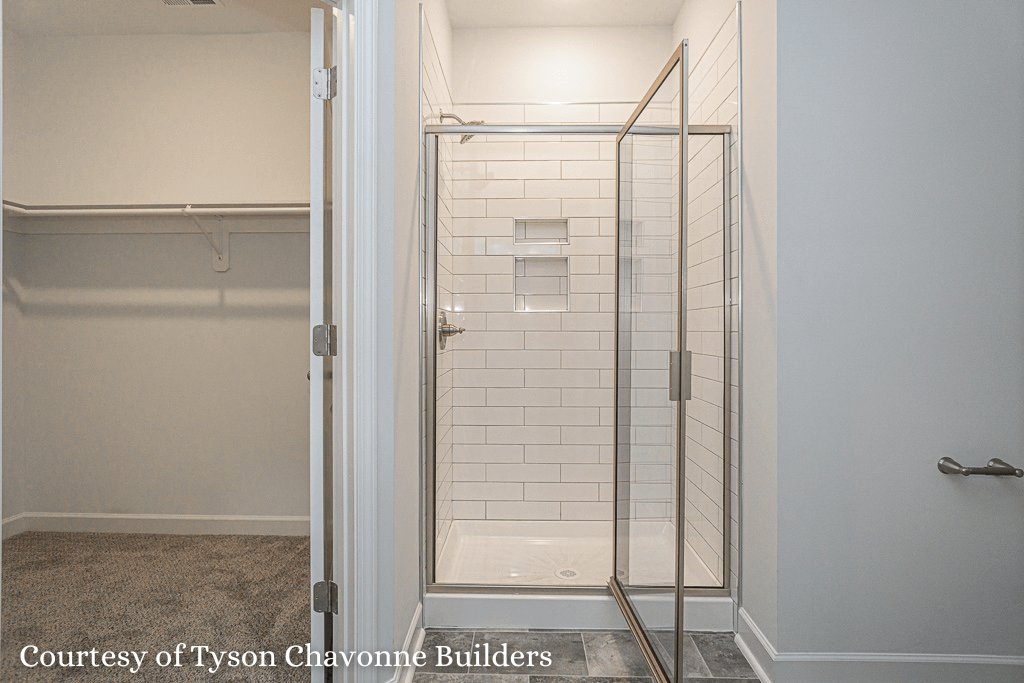

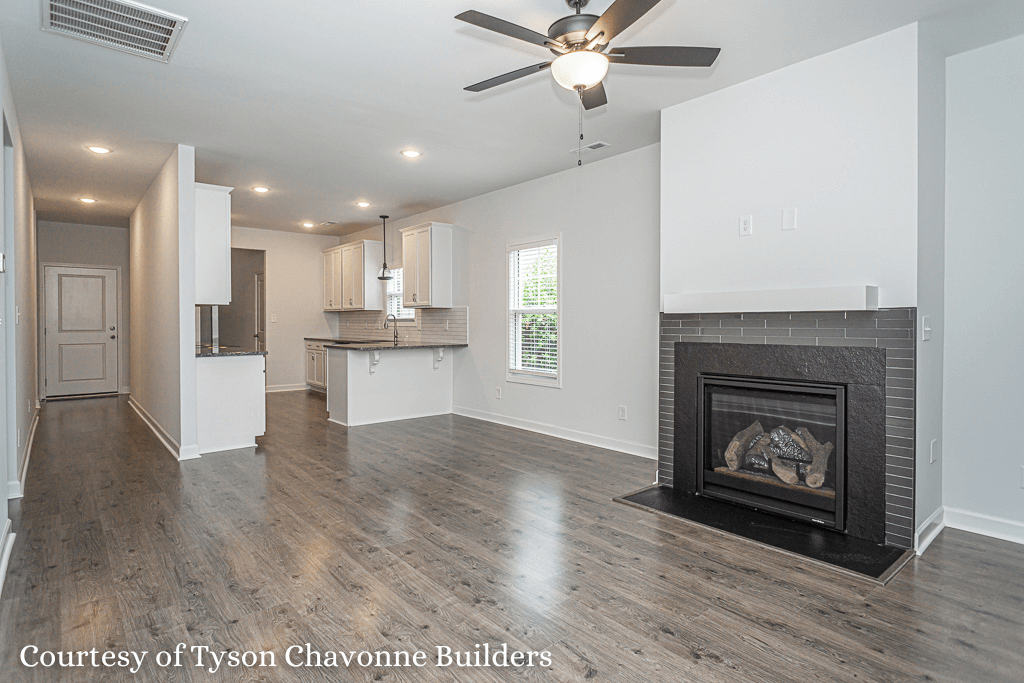

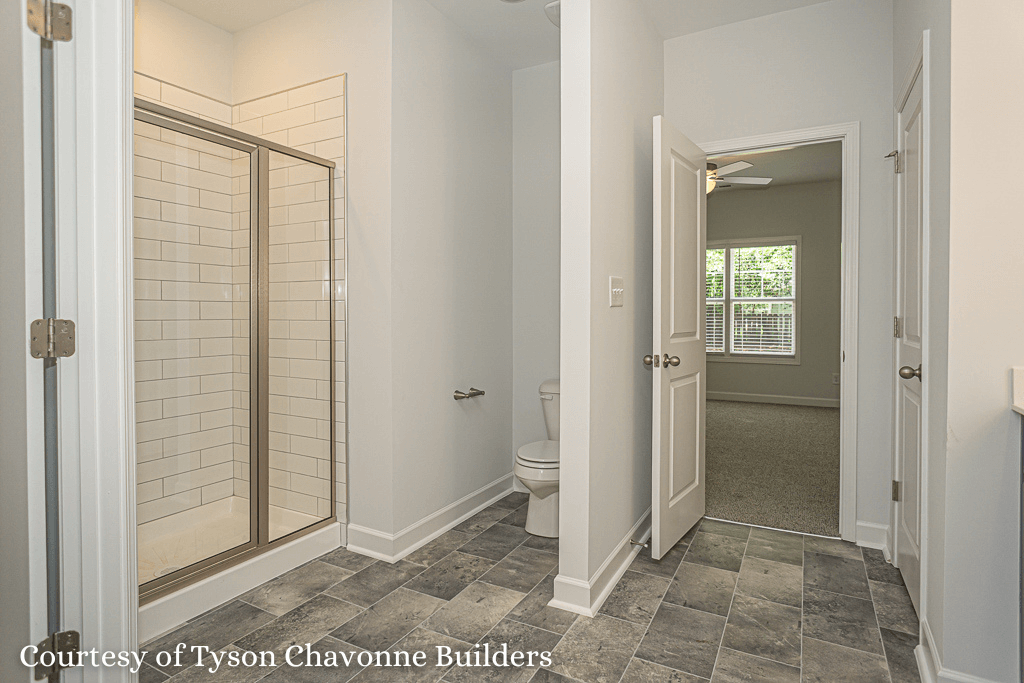

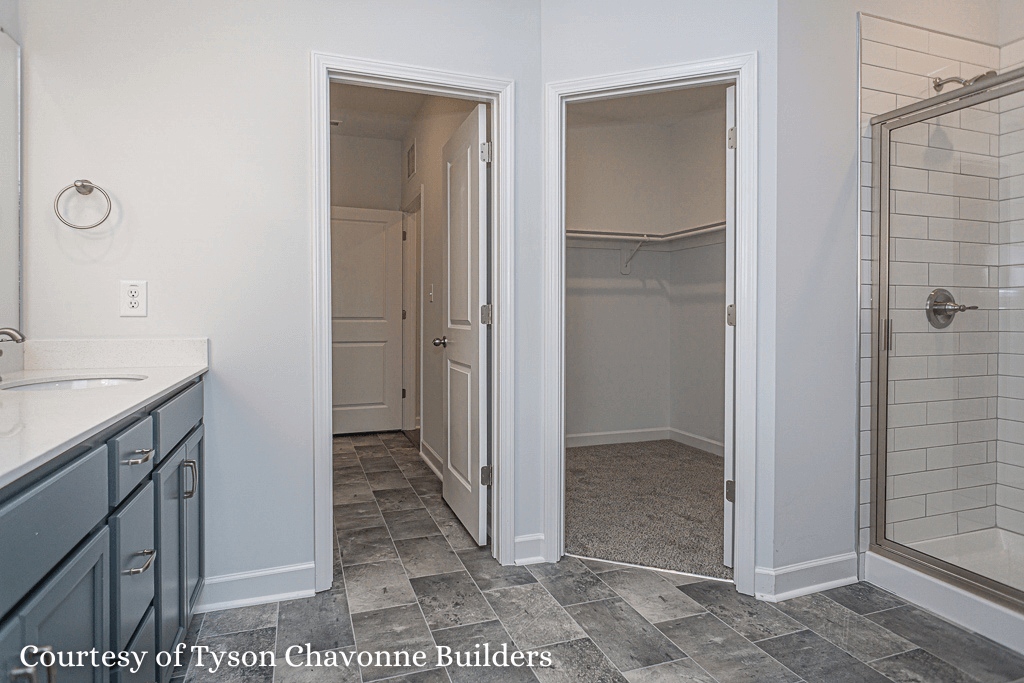

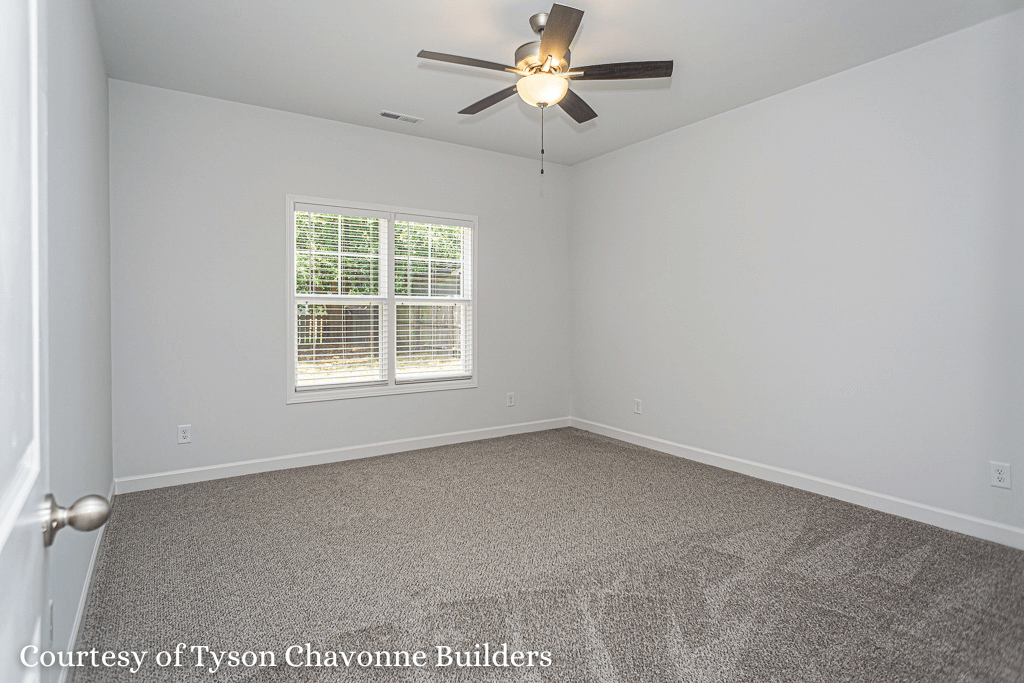

Many options are available in this well designed Nelson Design Group home. The long entry hall leads to a step saver Kitchen flowing through to the Dining Area and Great Room. The Master Suite is privately located at the rear of the main level and includes a whirlpool tub, separate shower and large walk-in closet. For everyday convenience, a half bath and Laundry Room are also on the main level. Upstairs you?ll find an optional game room, a full bath and two large bedrooms with double closets for extra storage.

Specifications

  • Total Living Space:1890Sq.Ft.
  • Main Floor: 1190 Sq.Ft
  • Upper Floor (Sq.Ft.): 700 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 224 Sq.Ft.
  • Porch (Sq.Ft.): 158 Sq.Ft.
  • Garage (Sq.Ft.): 415 Sq.Ft.
  • Total Square Feet: 2687 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 9
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
